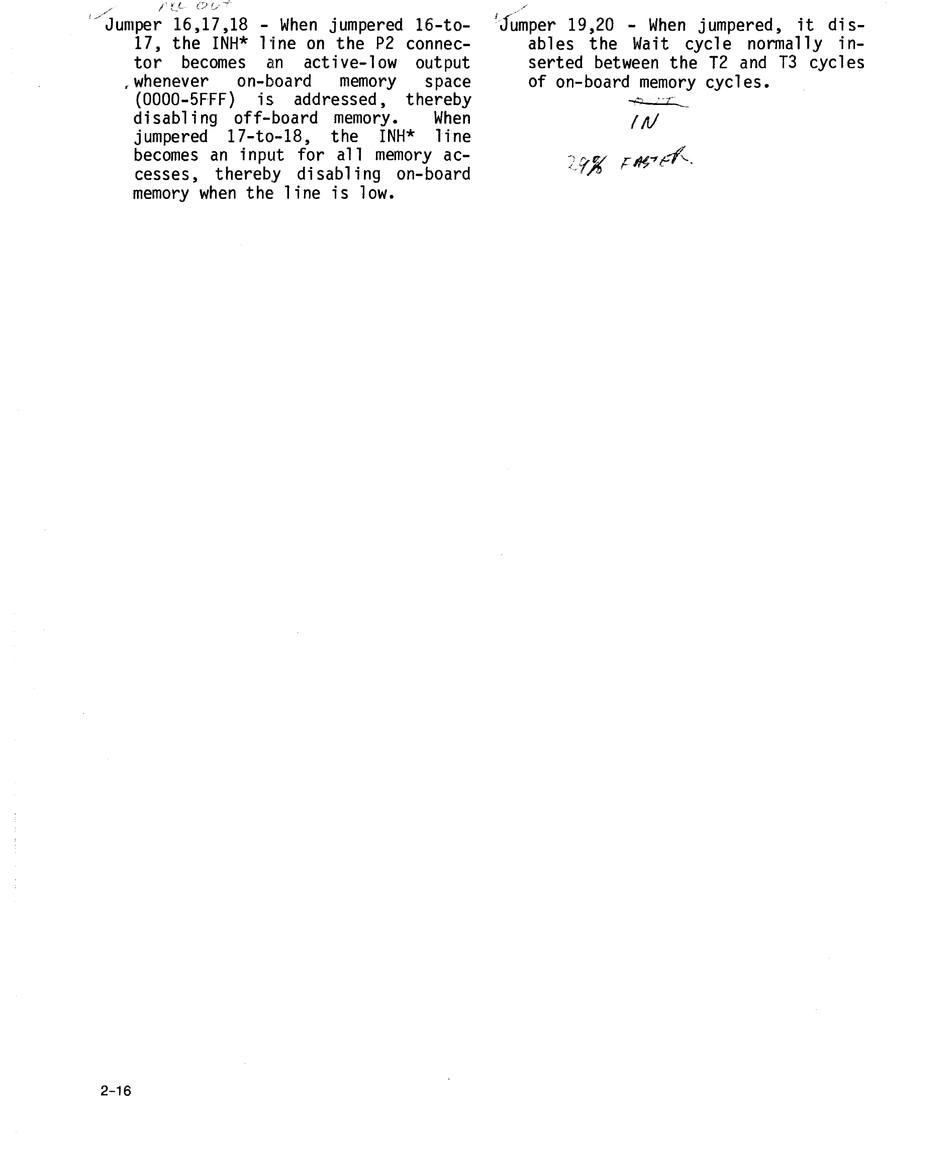

Advanced Micro Computers Am96/4016 User Manual page 32

. /
i /
Jumper 16,17,18 - When jumpered 16-to-
17, the INH* line on the P2 connec-
tor becomes an active-low output
~whenever
on-board memory space
(0000-5FFF) is addressed, thereby
disabling off-board memory. When
jumpered 17-to-18, the INH* ltne
becomes an input for all memory ac-
cesses, thereb.Y disabling on-board
memory when the line is low.
2-16
!Jumper 19,20 - When j umpered, it di s-
ables the Wait cycle normally in-
serted between the T2 and T3 cycles
of on-board memory cycles.
~ -
