Use one or more of these options
CRT
I
I
' 1 1111111111111
Flat Cable
Keyboard/Display
P3
Am SYS 8/8
Development
System
Flat cable to Development
System CPU board for
~
control and up/down
loading
P1
P2
i
Power and Ground
CPU-bus backplane board (2 or 3
slots) for interconnecting external
prototyping or memory-expansion
boards

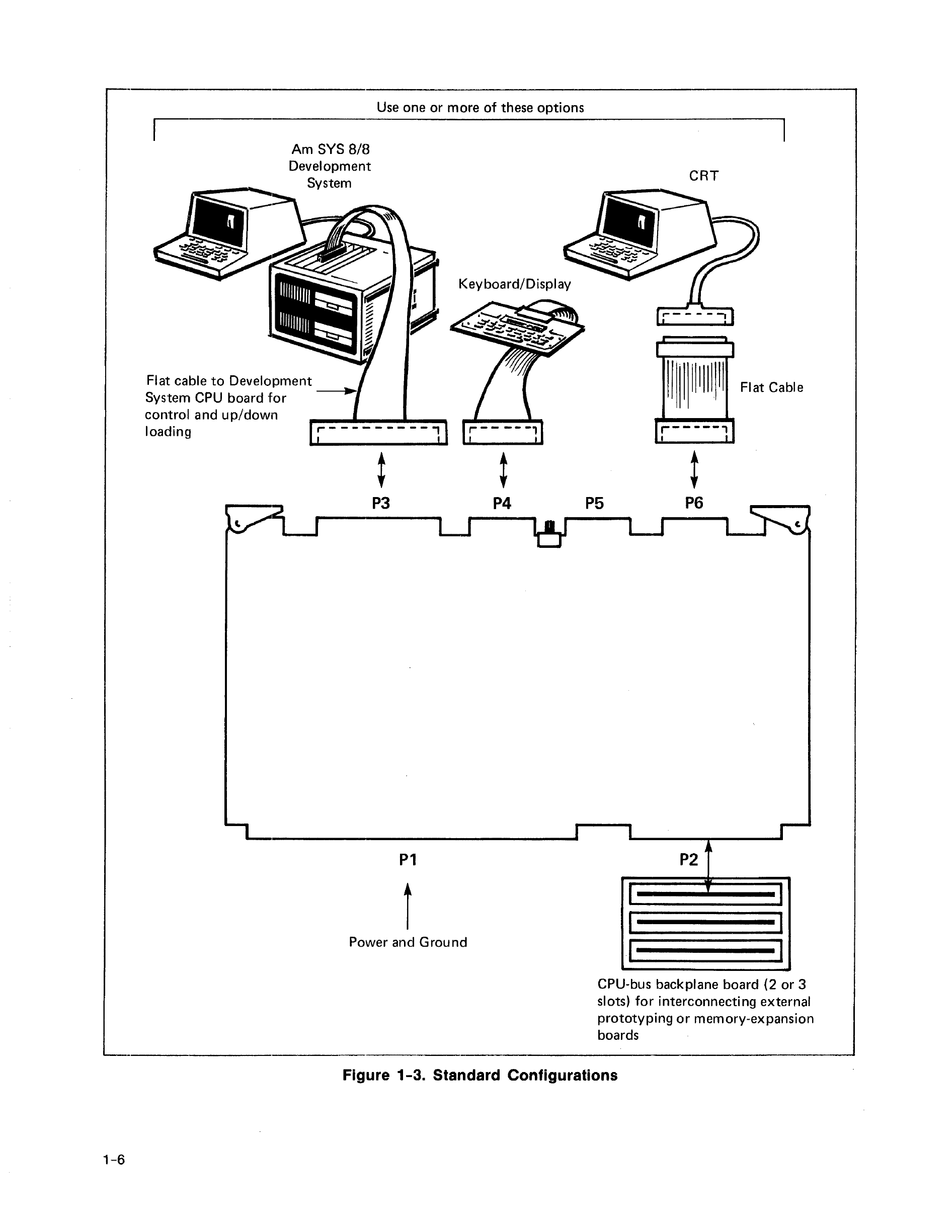

Figure 1-3. Standard Configurations
