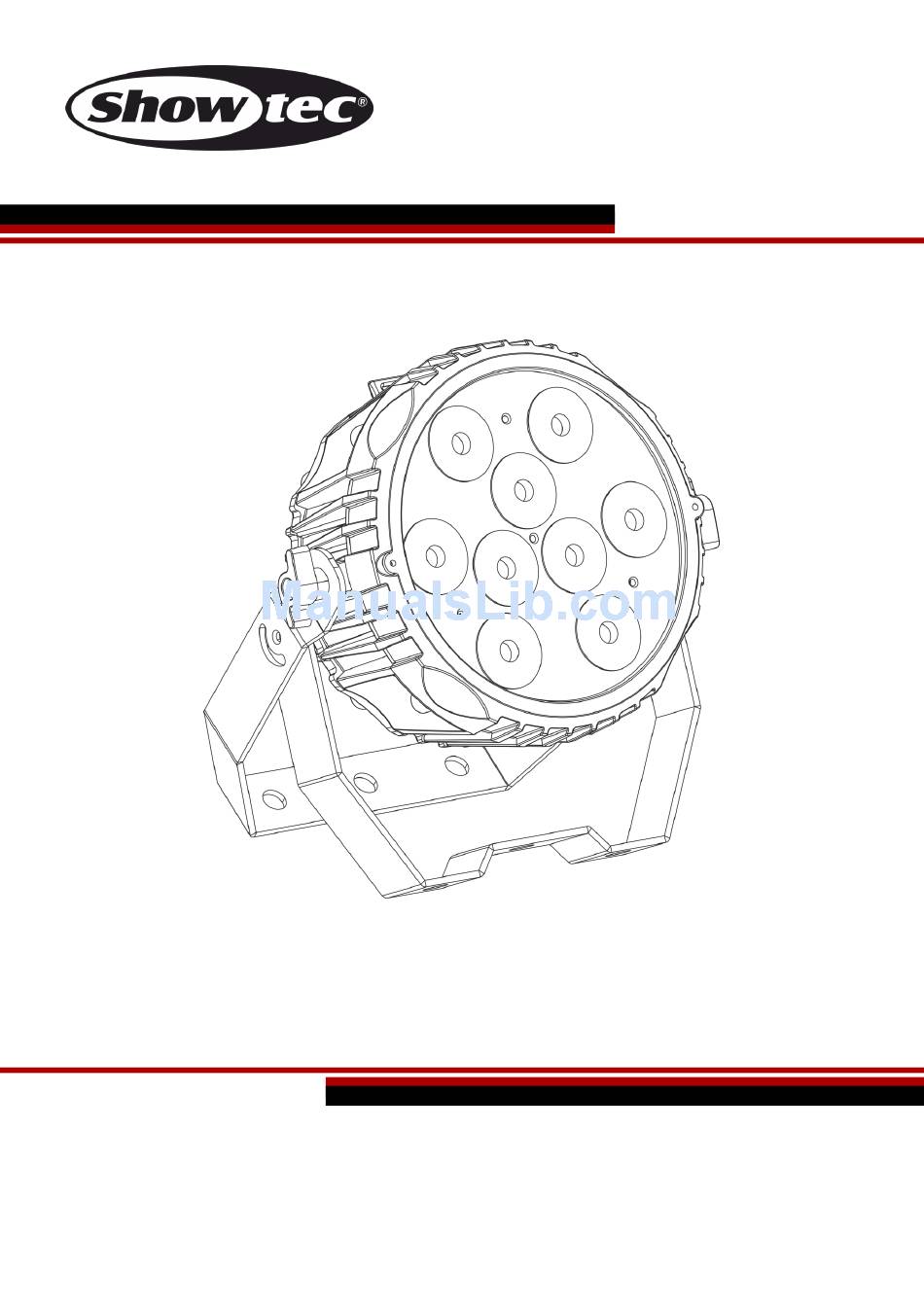

- Page 1 MANUAL ENGLISH Power Spot 9 Q6 Tour Ordercode: 42576 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Power Spot 9 Q6 Tour Table of contents Warning ....................................2 Unpacking Instructions ..............................2 LED Expected Lifespan ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims .................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Power Spot 9 Q6 Tour PowerCon power cable ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Power Spot 9 Q6 Tour • During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective. • Repairs, servicing and electric connection must be carried out by a qualified technician. •... -
Page 6: Connection With The Mains
Power Spot 9 Q6 Tour The Power Spot can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Power Spot 9 Q6 Tour Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
Power Spot 9 Q6 Tour Description of the device Features The Power Spot 9 Q6 Tour is an ultra-compact light effect with high output and great effects. It is the ideal solution for small clubs and mobile DJs. Compact size ... -
Page 9: Frontside
Power Spot 9 Q6 Tour Frontside Fig. 01 01) Adjustment screw 02) Double mounting bracket 03) 9 x 6-in-1 12W LED RGBWA-UV Ordercode: 42576... -
Page 10: Backside
Power Spot 9 Q6 Tour Backside Fig. 02 04) 4-digit LED display + control buttons 05) 5-pin DMX signal connector IN 06) 3-pin DMX signal connector IN 07) Blue power connector 100-240V IN 08) White power connector 100-240V OUT 09) 3-pin DMX signal connector OUT 10) 5-pin DMX signal connector OUT Ordercode: 42576... -
Page 11: Installation
Power Spot 9 Q6 Tour Installation Remove all packing materials from the Power Spot 9 Q6 Tour. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 12: Multiple Power Spots (Dmx Control)
Power Spot 9 Q6 Tour Multiple Power Spots (Master/Slave control) Fig. 03 Multiple Power Spots (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Power Spots and other devices. -
Page 13: Fixture Linking
Power Spot 9 Q6 Tour Multiple Power Spots DMX Set Up Fig. 04 Note : Link all cables before connecting electric power Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. -
Page 14: Control Panel
Power Spot 9 Q6 Tour The Power Spot 9 Q6 Tour can be operated with a DMX controller in control mode or without the DMX controller in stand-alone mode. Control Panel A) LED display MODE button C) SETUP button D) UP button DOWN button Fig. -
Page 15: Menu Overview
Power Spot 9 Q6 Tour Menu Overview Ordercode: 42576... -
Page 16: Main Menu Options
Power Spot 9 Q6 Tour Main Menu Options DMX-512 Mode Sound-controlled Mode Manual Mode (Static Color Mode) Settings Info Auto Mode Built-in programs Master/Slave Mode The Power Spot 9 Q6 Tour will show its version number at start-up! 1. DMX Addressing With this menu you can set the DMX address. -
Page 17: Settings
Power Spot 9 Q6 Tour 4. Settings With this menu you can manually set a few settings. 01) Press the MODE button until the display shows 02) Press the SETUP button to open this menu. The Power Spot 9 has 2 different setting modes. 4.1 LCD Backlight 01) Press the SETUP button to open menu 02) You can use the UP/DOWN buttons to select the desired LCD backlight time. -
Page 18: Slave Mode
Power Spot 9 Q6 Tour 7. Built-in programs With this menu you can you can set the built-in programs. 01) Press the MODE button until the display shows 02) Press the SETUP button to open this menu. 03) You can use the UP/DOWN buttons to scroll through the 12 built-in programs. 04) You can use the SETUP button to open menu 05) Use the UP/DOWN buttons to choose a color setting. -
Page 19: Dmx Channels
Power Spot 9 Q6 Tour DMX Channels 6 channels Channel 1 – Red 0-255 Gradual adjustment Red, from 0-100% Channel 2 – Green 0-255 Gradual adjustment Green, from 0-100% Channel 3 – Blue 0-255 Gradual adjustment Blue, from 0-100% Channel 4 – White 0-255 Gradual adjustment White, from 0-100% Channel 5 –... -
Page 20: Channels
Power Spot 9 Q6 Tour 10 channels Channel 1 – Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Red Dimmer must be open 0-255 Gradual adjustment Red, from 0-100% Channel 3 – Green Dimmer must be open 0-255 Gradual adjustment Green, from 0-100% Channel 4 –... -
Page 21: Maintenance
Power Spot 9 Q6 Tour 221-237 Light blue 238-254 Warm White Cold White Channel 9 – Program Speed CH8 must be set between 21-251 0-255 Slow to fast Channel 9 – Sound sensitivity CH8 must be set between 252-255 0-255 Audio sensitivity from less sensitive to highly sensitive Channel 10 –... -
Page 22: No Light
Suspect three potential problem areas as: the power supply, the LEDs, the internal fuse. 05) Power supply. Check that the unit is plugged into an appropriate power supply. 06) The LEDs. Return the Power Spot to your Showtec dealer. 07) The fuse. Return the Power Spot to your Showtec dealer. -
Page 23: Product Specifications
Power Spot 9 Q6 Tour Product Specifications Model: Showtec Power Spot 9 Q6 Tour Input Voltage: 100-240V, 60/50Hz Power consumption: 64,1W (full output) DMX linking: 30pcs Dimensions: 264 x 113 x 294 mm (LxWxH) Weight: 2,84 kg Operating and Programming:... - Page 24 Power Spot 9 Q6 Tour Ordercode: 42576...
-
Page 25: Dimensions
Power Spot 9 Q6 Tour Dimensions Ordercode: 42576... -
Page 26: Notes
Power Spot 9 Q6 Tour Notes Ordercode: 42576... - Page 27 Power Spot 9 Q6 Tour Ordercode: 42576...
- Page 28 ©2015 Showtec...
