5. Jog Wheels
5.1 X/Speed, Y/Slope:
Use to control the pan/ tilt of the fixtures (the pan/ tilt
channels should be assigned to the jog wheels) and
speed/ slope adjustment of chase and chase group.

6. Master control

6.1 Master control buttons
The master control buttons Dimmer 1, Dimmer 2, Dimmer 3
are respectively used to enable/disable and setup the
three master controls.
6.2 Master faders
Master faders Master 1, Master 2, Master 3 are used to
control the maximum output value of the assigned channels.
They only work when Dimmer 1, Dimmer 2, Dimmer 3 are
enabled (LED indicator on).

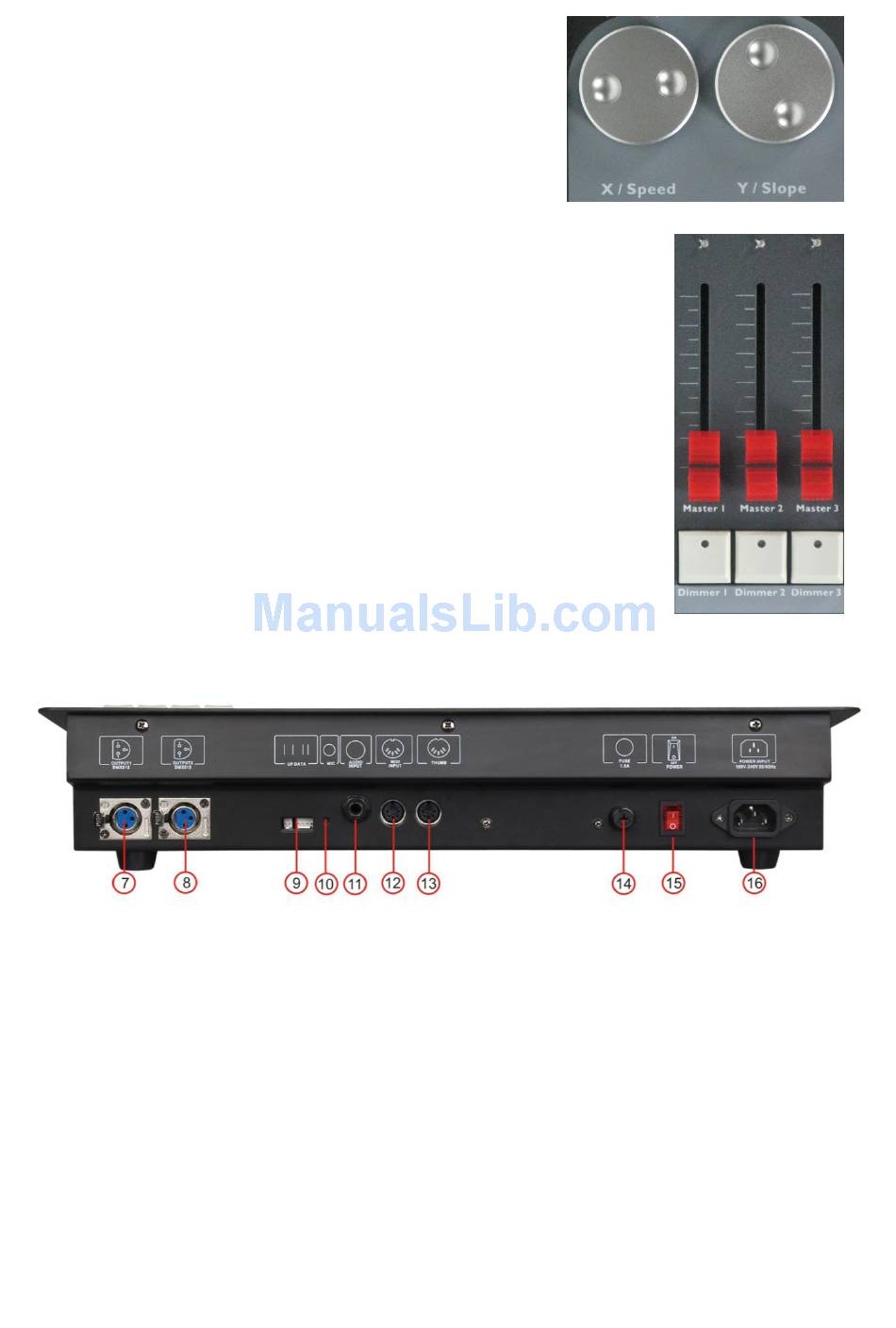

Controller Backside

7. DMX Out 1: This connector sends your DMX value to the DMX fixture or DMX pack.
8. DMX Out 2: This connector sends your DMX value to the DMX fixture or DMX pack.
9. Data: Data port.
10. Microphone.
11. Audio Input: This jack accepts a line level audio input signal ranged from
12. MIDI In: Not activated in the current software version.
13. MIDI Thru: Not activated in the current software version.
14. Main Fuse: T1,5A/250V.
15. Power: On/ Off.
16. IEC Connector
9
Fig. 2
100 mV to 1Vpp.
