- Page 1 MANUAL ENGLISH SM-16/2 Ordercode: 50701 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Running in Sound-Mode ............................14 Running in Auto-Mode ...............................14 Blackout ..................................14 Playback (Chases) ................................15 Manual Run Chases ..............................15 Auto Run Chases .................................15 Music Run Chases ...............................15 Running Sequential Chases ............................15 Midi Operation .................................16 Maintenance ..................................17 Troubleshooting ................................17 Product Specifications ..............................18 Ordercode: 50701... -
Page 3: Warning
Please consider that damages caused by manual modifications to the device are not subject to warranty. This device contains no user-serviceable parts. Refer servicing to qualified technicians only. Ordercode: 50701... -
Page 4: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 5: Connection With The Mains
After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting. Ordercode: 50701... -
Page 6: Description Of The Device

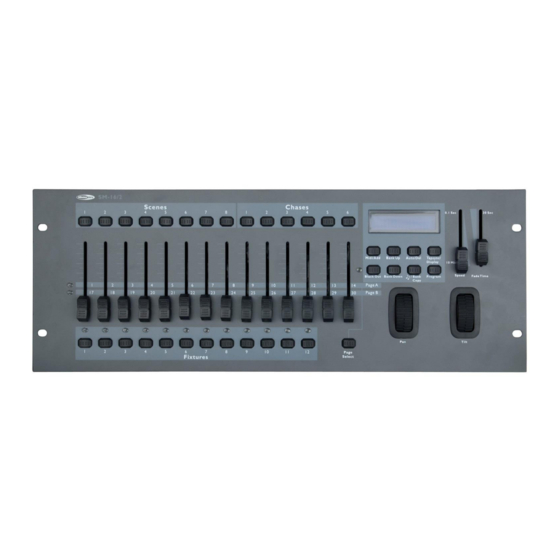

SM-16/2 Description of the device Features SM-16/2 is a light controller from Showtec and is equipped with the following features: Universal DMX-512 controller Controls up to 384 DMX channels; up to 12 intelligent lights with 32 channels each ... - Page 7 Turn the wheel to control the Pan of the scanner. 20) Music/Bank Copy button Press the button to activate music mode or to copy, while programming. 21) Program button 22) Tilt wheel Turn the wheel to control the Tilt of the scanner. Ordercode: 50701...
-
Page 8: Backside
Remove all packing materials from the SM-16/2. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Ordercode: 50701... -
Page 9: Common Terms
Patching refers to the process of assigning faders to a DMX channel within a fixture. Playbacks can be either scenes or chases that are directly called to execution by the user. A playback can also be considered a program memory that can be recalled during a show. Ordercode: 50701... -
Page 10: Set Up And Operation
14) Press and hold down the PROGRAM & TAPSYNC buttons twice, to exit mode. THE JOYSTICK IS PROGRAMMED TO CONTROL CHANNELS P1/P2 (X-AXIS) AND T1/T2 (Y-AXIS) BY DEFAULT. FOLLOW THE INSTRUCTIONS FOR “PHYSICAL FADER ASSIGNMENT” AND “REVERSE CHANNEL OUTPUT” TO RECONFIGURE THE JOYSTICK. Ordercode: 50701... -
Page 11: Reverse Channel Output (Optional Setup)
03) Turn ON the controller. 04) Press the TAPSYNC button to toggle between the two modes: all channels (A) or the selected channels. 05) Press the MIDI/ADD button to save your settings. All LEDs will blink to confirm. Ordercode: 50701... -
Page 12: Programming
05) Press the MIDI/ADD button. Press the previously selected SCENE button again. 06) To exit program mode, press and hold down the PROGRAM button for 3 seconds. The controller will default to a BLACKOUT, when exiting program mode. Ordercode: 50701... -
Page 13: Scene Copy
01) Press and hold down the PROGRAM button for 3 seconds. 02) Locate the bank you want to delete. Press the AUTO/DEL and MUSIC/BANK-COPY buttons at the same time to delete the bank. Note: All LEDs will flash to indicate a successful deletion. Ordercode: 50701... -
Page 14: Chase Programming
CAUTION! This procedure will result in irrevocable loss of chase step memory. The individual scenes and program banks will be preserved. 01) Press and hold down the BANK DOWN button and the AUTO DEL button while turning OFF the controller. Ordercode: 50701... -
Page 15: Playback (Scenes)
Caution! The fade setting should never be slower than the speed setting or the scene will never complete execution. To revert the programmed speed and fade time, tap the program button. Blackout 01) The BLACKOUT button brings all lighting output to 0 or off (also called the home position of the unit). Ordercode: 50701... -
Page 16: Playback (Chases)
01) Press either the AUTO DEL or the MUSIC BANK COPY button to select the trigger mode. 02) Press the CHASE button for each chase you wish to playback. 03) Adjust the chase speed by moving the SPEED fader. Notes: Chases must already be programmed. The chases will run in the order of pressing. Ordercode: 50701... -
Page 17: Midi Operation
1~8 in BANK 13 104 to 111 Scenes 1~8 in BANK 14 112 to 119 Scenes 1~8 in BANK 15 120 Chase 1 121 Chase 2 122 Chase 3 123 Chase 4 124 Chase 5 125 Chase 6 126 BLACKOUT Ordercode: 50701... -
Page 18: Maintenance
07) Check power from the wall, all cables, the fuse, the settings (return to default), etc. 08) If all of the above appears to be O.K., plug the unit in again. 09) If nothing happens after 30 seconds, unplug the device. 10) Return the device to your Showtec dealer. Ordercode: 50701... -
Page 19: Product Specifications
Grey Metal & Flame-retardant plastic Connections: Power adapter & Data connector Max. ambient temperature t 40°C Minimum distance: Minimum distance to lighted object: Design and product specifications are subject to change without prior notice. Website: www.Showtec.info Email: service@highlite.nl Ordercode: 50701... - Page 20 ©2015 Showtec...
