- Page 1 MANUAL ENGLISH Lite-12 Ordercode: 50336 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Lite-12 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Connection with the mains............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Backside .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Lite-12 DC power adapter (1,5 m) ... -
Page 4: Operating Determinations
For adult use only. Device must be installed out of the reach of children. Never leave the unit running unattended. The user is responsible for correct positioning and operating of the Lite-12. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. ... -
Page 5: Connection With The Mains
Lite-12 Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK... -
Page 6: Description Of The Device

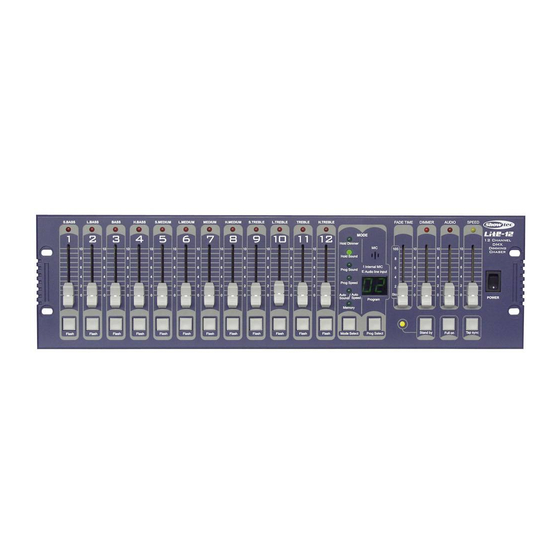

Lite-12 Description of the device Features The Showtec Lite-12 is a light controller equipped with a 12-channel chaser, 7 operating modes, 53 chasing programs, memory backup and fade time control. • Input voltage: 230V AC, 50Hz • Power input: DC 15-18V, 300mA •... -
Page 7: Backside
22) 3-pin DMX signal connector: Connect to the DMX power pack. Installation Remove all packing materials from the Lite-12. Check if all foam and plastic padding is removed. Screw the equipment into a 19” rack. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 8: Control Modes
Lite-12 Control Modes There are 7 modes: 1. Hold Dimmer 2. Hold Sound 3. Prog Sound 4. Prog Speed 5. Auto Speed 6. Auto Sound 7. Memory Press the MODE SELECT button (09) to choose the desired operating mode. As you keep on pressing the MODE SELECT button, the corresponding LED indicators (04) will light up to show the currently selected operating mode. -
Page 9: Pr Mode (Program)
04) The electric power supply cables must not show any damages or material fatigue. The Showtec Lite-12 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 10: Troubleshooting
05) If all appears to be O.K., plug the unit in again. 06) If nothing happens after 30 seconds, unplug the device. 07) If you are unable to determine the cause of the problem, do not open the Lite-12, as this may damage the unit and the warranty will become void. -
Page 11: Product Specifications
Lite-12 Product Specifications Model: Lite-12 Input voltage: 230V AC, 50Hz Power input: DC 15-18V, 300mA Dimensions: 483 x 133 x 51 mm (LxWxH) 19” x 3 HE Weight: 2,3 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) - Page 12 ©2017 Showtec...
