Summary of Contents for SHOWTEC 50348
- Page 1 MANUAL ENGLISH Multi Exchanger Ordercode: 50348 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Claims ....................................5 Description of the device ..............................6 Features ..................................6 Frontside..................................6 Backside ..................................7 Installation ................................... 7 Set Up and Operation ............................... 8 Maintenance ..................................9 Replacing the Fuse ............................... 9 Troubleshooting ................................. 9 Product Specification ..............................10 Ordercode: 50348... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Multi Exchanger with a Schuko power cable (1,2 m) User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ... - Page 4 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER NEUTRAL YELLOW/GREEN GREEN GREEN PROTECTIVE GROUND Make sure that the device is always connected properly to the earth! Improper installation can cause serious damage to people and property! Ordercode: 50348... -
Page 6: Return Procedure
After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting. Ordercode: 50348... -
Page 7: Description Of The Device

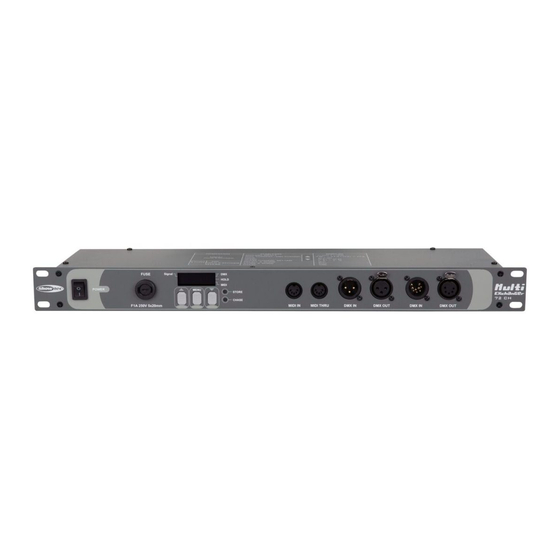

Multi Exchanger Description of the device Features The Showtec Multi Exchanger converts a DMX-512 signal to a 72-channel analog output. Input voltage: 230V AC, 50Hz Analog output: +(-)10V, +(-)12V and +(-)15V Control: DMX mode, MIDI mode, HOLD mode ... -
Page 8: Backside
Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Ordercode: 50348... -
Page 9: Set Up And Operation
Set the DIP switch #2 to ON for 15V, DIP switch #3 for 12V or DIP switch #4 for 10V. Remember that any two of the DIP switches #2, 3 and 4 may not be set to ON at the same time. Ordercode: 50348... -
Page 10: Maintenance
Multi Exchanger Maintenance The Showtec Multi Exchanger requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply and then wipe the cover with a damp cloth. Do not use alcohol or solvents. Do not immerse in liquid. -
Page 11: Product Specification
Multi Exchanger Product Specification Model: Showtec Multi Exchanger Input voltage: 230V AC, 50Hz Fuse: F1L/250V Dimensions: 483 x 126 x 44 mm (LxWxH) 19 inch x 1HE Weight: 2,6 kg Operating and Programming: Signal pin OUT: Pin 1 (earth), pin 2 (-), pin 3 (+) - Page 12 ©2017 Showtec...
