- Page 1 MANUAL ENGLISH ColorCue 1 Order code: 50703 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
ColorCue 1 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the Device ..............................5 Features ..................................5 Top View ..................................5 Back View .................................. -
Page 3: Warning
Your shipment includes: ● Showtec ColorCue 1 ● AC power adapter with 4 interchangeable AC plugs (Europe, UK, US/JP, AUS/NZ) ●... -
Page 4: Operating Determinations
● If your device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. ● For adult use only. The device must be installed beyond the reach of children. Never leave the unit running unattended. -
Page 5: Return Procedure
ColorCue 1 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Description Of The Device

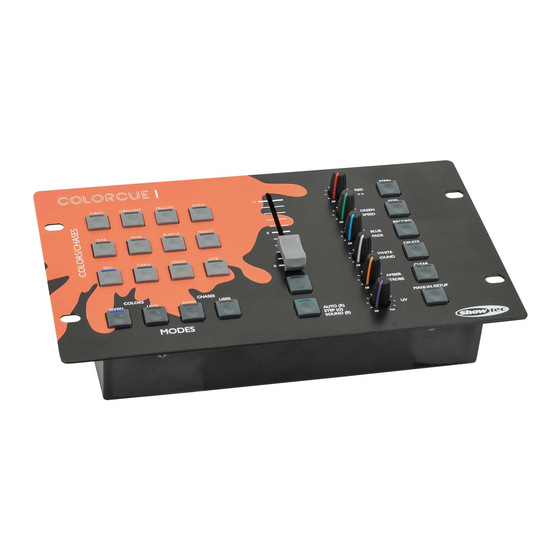

ColorCue 1 Description of the Device Features The ColorCue 1 is a LED controller featuring 1 master fader, 6 color potentiometers and 12 memory buttons for colors, chases, and user presets. ● Power input: 12 V DC, 500 mA ●... -
Page 7: Back View
Power switch ON/OFF Installation Remove all packing materials from the ColorCue 1. Check if all foam and plastic padding is removed. Connect the LED controller to a power outlet with the supplied AC power adapter. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 8: Fixture Linking
ColorCue 1 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 9: Setup Mode
ColorCue 1 Fig. 03 Setup Mode In this mode you can select the type of the LEDs of the connected lighting fixture. 01) Press and hold down the SETUP button (24) for 3 seconds. The LED on the button will start blinking. -
Page 10: Static Colors Mode
ColorCue 1 2. Static Colors Mode In this mode you can choose one of the 12 preset colors or 12 user recorded colors. 2.1. Preset Colors Mode To select one of the 12 preset colors: 01) Press the FIXED COLORS button (13) to enter Preset Colors Mode. The LED on the button will light up. -
Page 11: User Chases Mode
ColorCue 1 Preset chases color sequence Button Chases Color 1 Color 2 Color 3 Color 4 Color 5 Color 6 Program 1 GREEN Program 2 BLUE Program 3 GREEN BLUE Program 4 WHITE Program 5 GREEN WHITE Program 6 BLUE... -
Page 12: Cancel A Selection
ColorCue 1 ● Sound-controlled playback: The LED on the button will light up in blue. The chase will play automatically reacting to the beat of the music. Turn the SOUND control (G) to adjust the sensitivity of the built-in microphone. -
Page 13: Add A Chase Step To An Existing Chase
ColorCue 1 04) Set the desired color by using one of the following 3 options: ● Manual setup: follow the steps under Manual Mode (see page 8) to set up the color manually ● Preset color: follow the steps under 2.1. Preset Colors Mode (see page 9) to select one of the 12 preset colors ●... -
Page 14: Factory Reset
05) If nothing happens after 30 seconds, unplug the device. 06) If you are unable to determine the cause of the problem, do not open the ColorCue 1, as this may damage the unit and the warranty will become void. -
Page 15: Product Specifications
ColorCue 1 Product Specifications Model: Showtec ColorCue 1 Power input: 12 V DC, 500 mA Power consumption: 10 W Dimensions: 258 x 150 x 79 mm (L x W x H) Weight: 1 kg Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) - Page 16 ©2019 Showtec...
