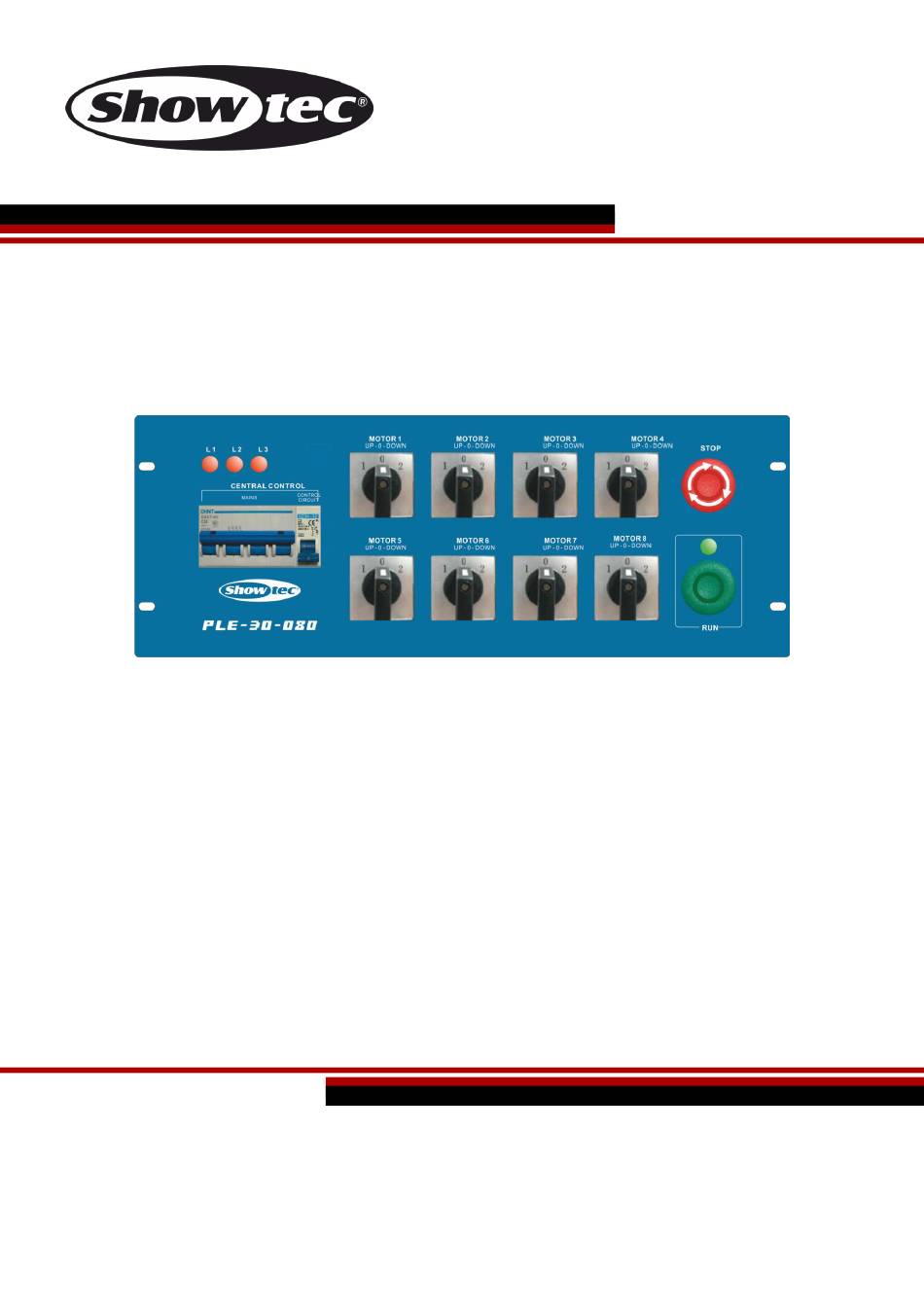

- Page 1 MANUAL ENGLISH PLE-30-080 Chainhoist Contoller Ordercode: 70281 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Chainhoist Contoller Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Features ..................................6 Frontside..................................6 Backside ..................................7 Functional Description .............................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Chainhoist Controller with 1,5m powercable ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●... - Page 4 • If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Chainhoist Contoller Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The maximum ambient temperature ta = 35°C must never be exceeded. ●... -
Page 6: Return Procedure
Chainhoist Contoller Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 7: Description Of The Device

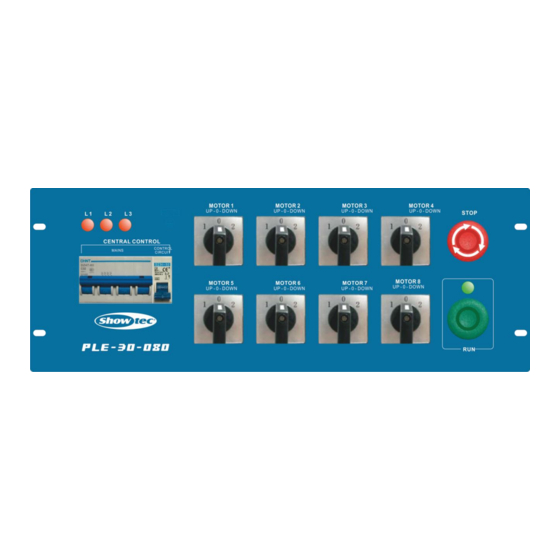

Chainhoist Contoller Description of the device Features The Showtec Showtec Chainhoist controller is a dedicated controller for all popular direct controlled chainhoists such as CM Lodestar. • Each of the 8 hoists can be selected individually to go up or down or to be deselected •... -
Page 8: Backside
09) 16-pole multi-connector (Harting) for Motor 5-8 10) 4x CEE 4 pole 16A socket 11) CEE 5 pole 32A Powerconnector Setup Possibilities PLE-30-080 (70281) 1. 4x red CEE for Motor 1-4 2. 1x Harting for Motor 1-4 3. 1x Harting for Motor 5-8 4. -
Page 9: Functional Description
Chainhoist Contoller Functional Description 01) Measure the main power supply and make sure the operating voltage is correct and all the phases are present. 02) Connect the controller to the power supply. 03) Release the emergency button by turning it counter clockwise to switch the controller on. 04) Connect the power cords to the controller by using a HARTING 16p or a CEE connector. -
Page 10: Do's And Don'ts
Chainhoist Contoller Do’s and Don’ts Don’t ● ● Use the controller within the technical scope of the Never connect the chainhoist controller to a power of the hoist. Longer operating time could severely source other than specified on this unit. damage controller and hoist. -
Page 11: Installation
Chainhoist Contoller Installation Remove all packing materials from the Chainhoist controller. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 12: Pin Assignment For A 16-Pin Harting Socket
Motor 3/7 Motor 4/8 Maintenance The Showtec Chainhoist Controller requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front panel clean with glass cleaner and a soft cloth. Do not use alcohol or solvents. The front panel will require weekly cleaning, as smoke-fluid tends to build up residues. -
Page 13: Troubleshooting
Chainhoist Contoller Troubleshooting This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. Hoist(s) do not respond to the green RUN signal Solution Please check the cabling and the connections... -
Page 14: Exploded View
Chainhoist Contoller Exploded View Ordercode: 70281... -
Page 15: Parts
Chainhoist Contoller Parts Top cover Brass bar for E-line Terminal block Aluminum bracket for holding terminal AC relay Aluminum fix stand for remaining Relay 12-way connecting terminal block ILME socket, female Power outlet, CEE socket, 4-pin female Chassis/Base case Rubber case feet MCB, 2-pole Push knob for emergency stop(red) Indicator(green) -
Page 16: Connection Diagram
Chainhoist Contoller Connection Diagram Ordercode: 70281... -
Page 17: Product Specifications
Housing Compact strong metal housing Mains Circuit Breaker 4x 16A D Circuit breaker (for Run+Stop button) 2A C Max. ambient temperature t 35°C Design and product specifications are subject to change without prior notice. Website: www.Showtec.info Email: service@highlite.nl Ordercode: 70281... -
Page 18: Dimensions
Chainhoist Contoller Dimensions Ordercode: 70281... - Page 19 Chainhoist Contoller Ordercode: 70281...
- Page 20 ©2015 Showtec...
