- Page 1 MANUAL ENGLISH PLE-30-040 Chainhoist Controller Ordercode: 70282 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
PLE-30-040 Chainhoist Contoller Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Features ..................................6 Frontside..................................6 Backside ..................................7 Functional Description .............................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Chainhoist Controller with fixed 1,5m powercable ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●... - Page 4 • If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
PLE-30-040 Chainhoist Contoller Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. Make sure to read the manual provided with the chainhoists connected for optimal use. -
Page 6: Return Procedure
PLE-30-040 Chainhoist Contoller Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device

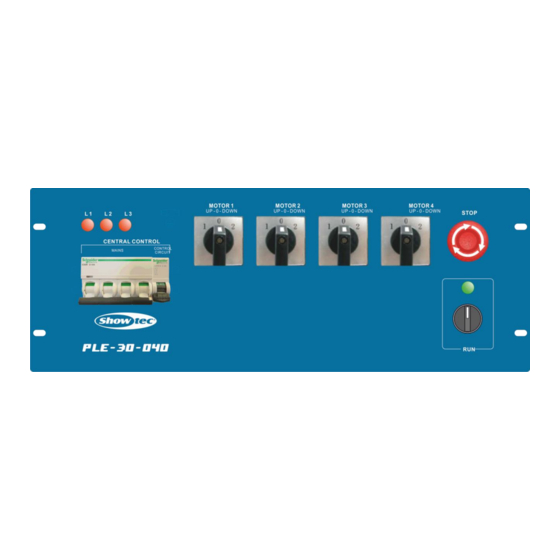

PLE-30-040 Chainhoist Contoller Description of the device Features The Showtec Showtec Chainhoist controller is a dedicated controller for all popular direct controlled chainhoists such as CM Lodestar. • Each of the 4 hoists can be selected individually to go up or down or to be deselected as long as... -
Page 8: Backside
08) 16-pole multi-connector (Harting) for Motor 1-4 09) 4x CEE 4 pole 16A socket 10) CEE 5 pole 32A Powerconnector Setup Possibilities PLE-30-040 (70282) 1. 4x red CEE for Motor 1-4 2. 1x Harting for Motor 1-4 When the chainhoist controller is NOT used, disconnect the power cord. -
Page 9: Functional Description
PLE-30-040 Chainhoist Contoller Functional Description 01) Measure the main power supply and make sure the operating voltage is correct and all the phases are present and in correct order. 02) Check if the pre-selection switches for all hoists are in the "0" position. -
Page 10: Installation
PLE-30-040 Chainhoist Contoller Installation Remove all packing materials from the Chainhoist controller. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning. -
Page 11: Pin Assignment For A 16-Pin Harting Socket
Pin Assignment for a 16-pin Harting socket Maintenance The Showtec Chainhoist Controller requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front panel clean with mild detergent and a soft cloth. -
Page 12: Troubleshooting
PLE-30-040 Chainhoist Contoller Troubleshooting This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. -
Page 13: Exploded View
PLE-30-040 Chainhoist Contoller Exploded View Ordercode: 70282... -
Page 14: Parts
PLE-30-040 Chainhoist Contoller Parts Top cover Brass bar for E-line Terminal block Aluminum bracket for holding terminal AC relay Aluminum fix stand for remaining Relay 12-way connecting terminal block ILME socket, female Power outlet, CEE socket, 4-pin female Chassis/Base case... -
Page 15: Connection Diagram
PLE-30-040 Chainhoist Contoller Connection Diagram Ordercode: 70282... -
Page 16: Declaration Of Conformity
PLE-30-040 Chainhoist Contoller Declaration of Conformity Ordercode: 70282... -
Page 17: Product Specifications
PLE-30-040 Chainhoist Contoller Product Specifications Model: Chainhoist controller Power Supply: 400V ~ 3P + N +PE Max. voltage drop: -20% and +10% Max. Load per motor switch 1,9 kW (2,7A 400V) Max. load total, all outputs summed 9 kW (13A 400V) -
Page 18: Dimensions
PLE-30-040 Chainhoist Contoller Dimensions Ordercode: 70282... - Page 19 PLE-30-040 Chainhoist Contoller Ordercode: 70282...
- Page 20 ©2016 Showtec...
