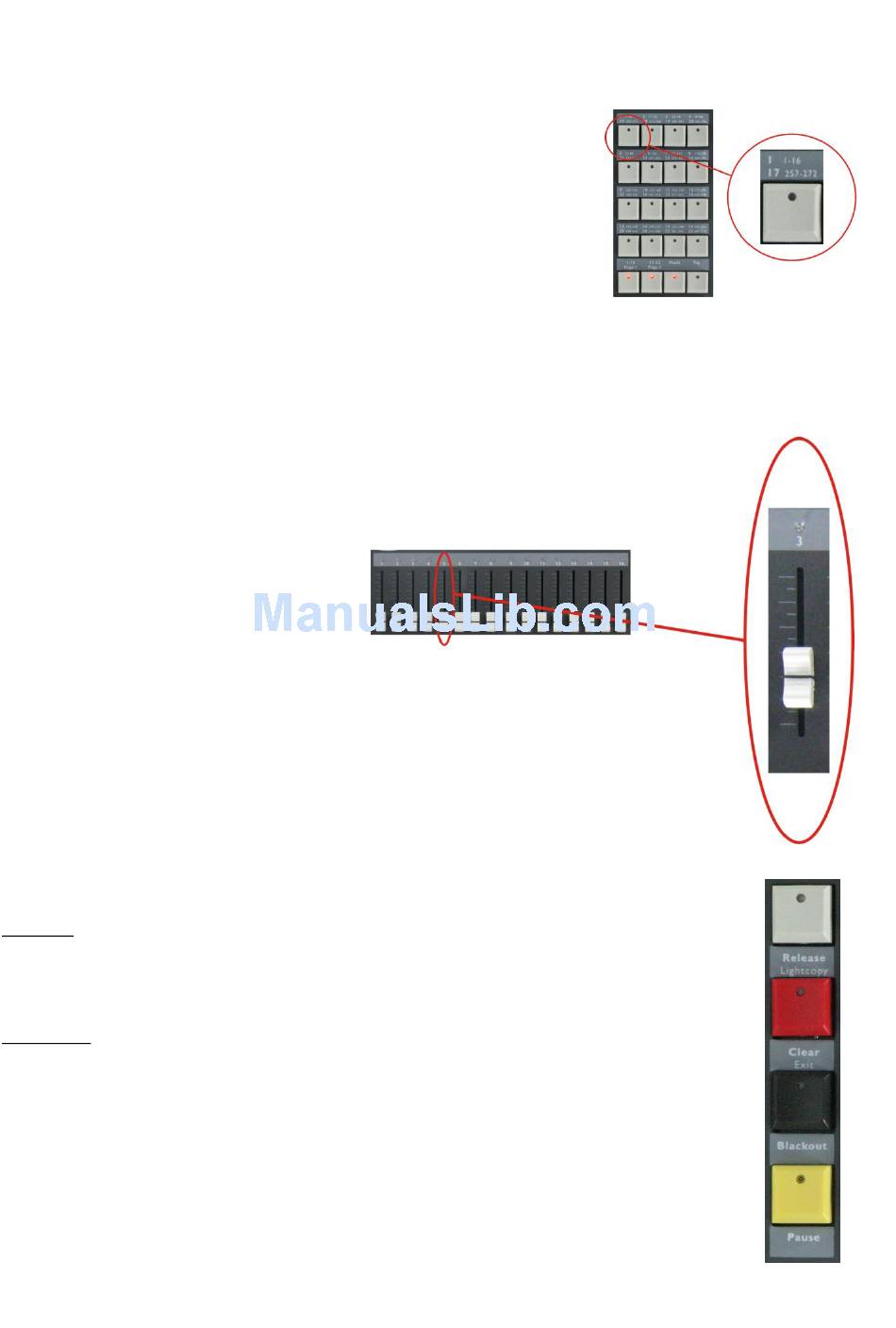

Controller Front

1. Fixture selection buttons

Page 1 and Page 2 each contain 16 fixtures which can be selected
by the 16 buttons for fixture selection in combination with the
Page 1 (4.6) and Page 2 (4.6) buttons. 16 DMX channels
can be assigned to each fixture. If a fixture is selected, the LED
indicator in the button will indicate it's status. If the LED indicator of
the fixture selection button blinks, the status of the fixture's channels
is indicated by the LEDs above the according faders.
Either one or several fixtures at the same time can be activated or
deactivated.
Example: to activate Fixture 4, 5, 6, 7, 8, 9 and 10 simultaneously, press and hold button 4 and press
button 10. Now fixture 4, 5, 6, 7,8, 9 and 10 are all selected.
2. Faders and LED indicators
The unit has 16 faders, each with a LED indicator.
By using the Fixture buttons and the faders you can
control all 512 channels in real time.

3. Function buttons

3.1 Release/Lightcopy
Release:
Manual control of the faders always overrides a chase or a scene during playback.
Moving a fader during playback will effect your output.
● Pressing the release button and moving the corresponding fader will release the
manual override for that channel.
Lightcopy:
Use this button for copying data from one fixture to another.
First, adjust the channels of one fixture by adjusting the faders, then press and hold
LightCopy + the current fixture selection until the LCD display shows: Copy OK.
Press and hold LightCopy again + the button of the target fixture until the display
Shows: Paste OK. Now you've copied the data of one fixture to another.
6
