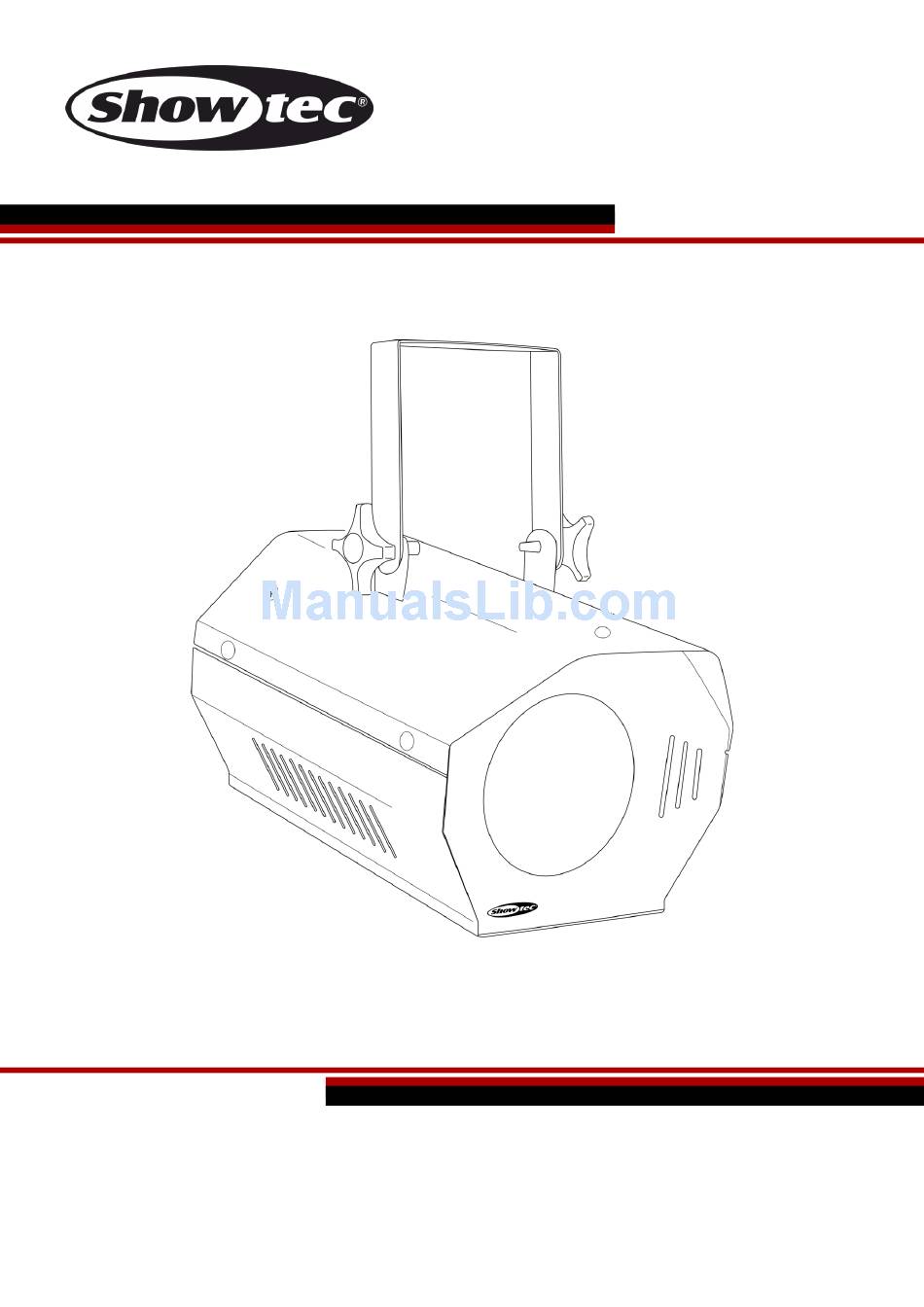

- Page 1 MANUAL ENGLISH Scat Moon Ordercode: 43084 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Overview ..................................7 Frontside..................................8 Backside ..................................9 Installation ..................................10 Set Up and Operation ..............................10 Control Modes ................................10 One Scat Moon (Sound-controlled) ........................10 Sound-controlled Mode ............................10 Maintenance ..................................10 Replacing the Fuse ..............................11 Troubleshooting ................................11 No Light ..................................11 Product Specifications ..............................12 Dimensions ..................................13... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Scat Moon IEC power cable 0,8 m ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Scat Moon • The user is responsible for correct positioning and operating of the Scat Moon. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
Scat Moon The Scat Moon can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Scat Moon Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device
Scat Moon Description of the device Features The Scat Moon is an ultra compact light fixture with high output and great effects. The Scat Moon is the ideal solution for small clubs and mobile DJs. • Plug & Play • Compact size •... -
Page 9: Frontside
Scat Moon Frontside Fig. 02 01) Mounting bracket with inclination screw 02) Adjustment screw 03) Ground-earth connection 04) Air intake grill 05) LED lens Ordercode: 43084... -
Page 10: Backside
Scat Moon Backside Fig. 03 06) LED sensitivity control 07) Safety eye 08) Ground-earth connection 09) IEC power connector 230V + Fuse F1AL/250V 10) Engine sensitivity control Ordercode: 43084... -
Page 11: Installation
02) Plug the end of the electric mains power cord into a proper electric power supply socket. 03) Turn on the music. The Scat Moon will react to the beat of the music. Please read below for more information about the sound-control options. -
Page 12: Replacing The Fuse
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Scat Moon, as this may damage the unit and the warranty will become void. -
Page 13: Product Specifications
Scat Moon Product Specifications Model: Showtec Scat Moon Input Voltage: 230 VAC, 50Hz Power consumption: 6W (full output) Fuse: F1AL/250V Dimensions: 265 x 150 x 230 mm (LxWxH) Weight: 1,4 kg Electro-mechanical effects: LED Quantity: 18 x 5 mm RGBW LED... -
Page 14: Dimensions
Scat Moon Dimensions Ordercode: 43084... -
Page 15: Notes
Scat Moon Notes Ordercode: 43084... - Page 16 ©2015 Showtec...
