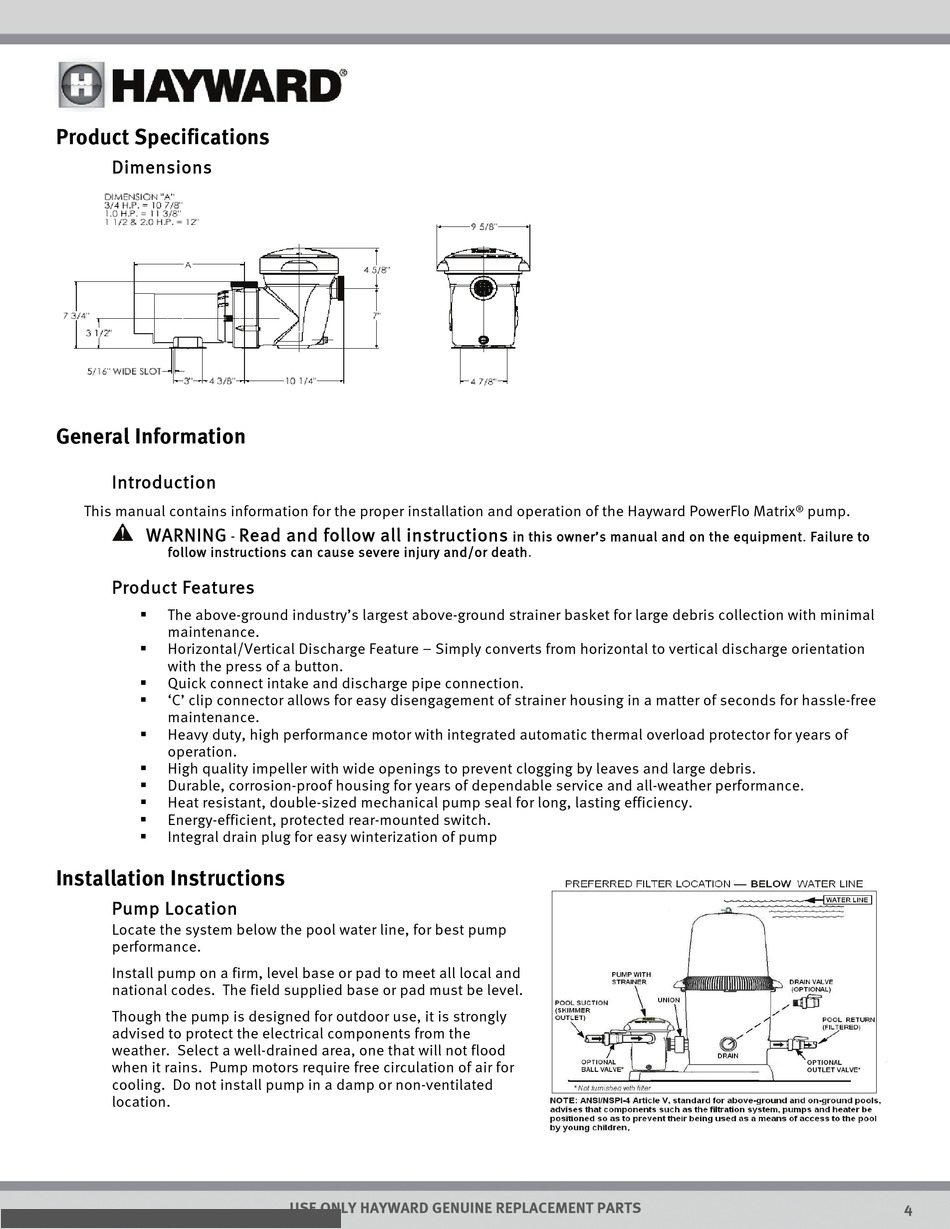

Product Specifications

Dimensions

General Information

Introduction

This manual contains information for the proper installation and operation of the Hayward PowerFlo Matrix
WARNING
-
follow instructions can cause severe injury and/or death.
Product Features

The above-ground industry's largest above-ground strainer basket for large debris collection with minimal
maintenance.

Horizontal/Vertical Discharge Feature – Simply converts from horizontal to vertical discharge orientation
with the press of a button.

Quick connect intake and discharge pipe connection.

'C' clip connector allows for easy disengagement of strainer housing in a matter of seconds for hassle-free
maintenance.

Heavy duty, high performance motor with integrated automatic thermal overload protector for years of
operation.

High quality impeller with wide openings to prevent clogging by leaves and large debris.

Durable, corrosion-proof housing for years of dependable service and all-weather performance.

Heat resistant, double-sized mechanical pump seal for long, lasting efficiency.

Energy-efficient, protected rear-mounted switch.

Integral drain plug for easy winterization of pump

Installation Instructions

Pump Location
Locate the system below the pool water line, for best pump
performance.
Install pump on a firm, level base or pad to meet all local and
national codes. The field supplied base or pad must be level.
Though the pump is designed for outdoor use, it is strongly
advised to protect the electrical components from the
weather. Select a well-drained area, one that will not flood
when it rains. Pump motors require free circulation of air for
cooling. Do not install pump in a damp or non-ventilated
location.
Read and follow all instructions
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
in this owner's manual and on the equipment. Failure to
® pump.
