Replacement Parts

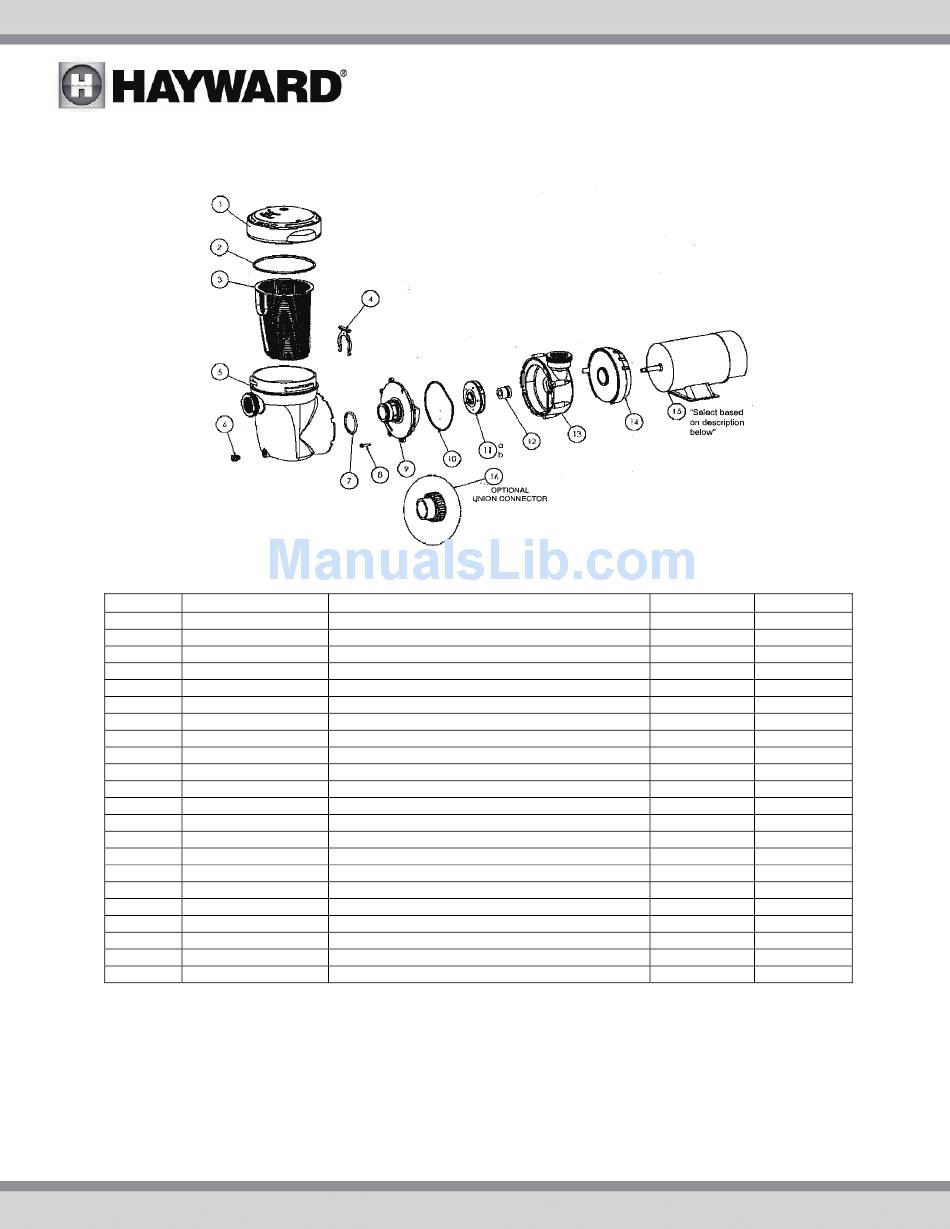

Parts Diagram
Parts Listing
Ref. No. Part No.
1 SPX5500D
2 SPX5500H
3 SPX5500F
4 SPX5500G
5 SPX5500C
6 SPX1700FG
7 SPX5500K
8 SPX0714Z48
9 SPX5500B
10 SPX0710XZ5
11 ----
12 SPX1500KA
13 SPX5500A
14 SPX5500E
15 SPX1510Z1E
15 SPX1510Z1XE
15 SPX1515Z1E
15 SPX1520Z1ESC
15 SPX1524Z1ESC
15 SPX1510Z24XE
15 SPX1515Z2WS
16 SP1500UNPAK2
Description
Strainer Cover with Lock Ring & 'O' Ring
Strainer Cover 'O' Ring
Strainer Basket
Strainer Retainer/ 'C' Clip
Strainer Housing
Drain Plug w/ Gasket
Strainer 'O' Ring
Screw, #14 x 1/4" Type B Pan Head
Pump Cover
Housing 'O' Ring
Impeller (Refer to Part No. on Original Equipment)
Shaft Seal Assembly
Pump Housing
Shroud Assembly
¾ HP Single Speed Motor with Switch, Flex-48
1 HP Single Speed Motor with Switch, Flex 48
1 ½ HP Single Speed Motor with Switch, Flex-48
2 HP Single Speed Motor with Switch, Flex-48
2 ½ HP Single Speed Motor with Switch, Flex-48
1 HP Two Speed Motor with Switch, Flex48
1 ½ HP Two Speed Motor with Switch, Flex-48
Union Connector Assembly
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Ctn. Qty. No. Req'd
10 1
10 1
10 1
10 1
1 1
10 1
10 1
80 8
4 1
10 1
* 1
10 1
4 1
4 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
50 2
11
