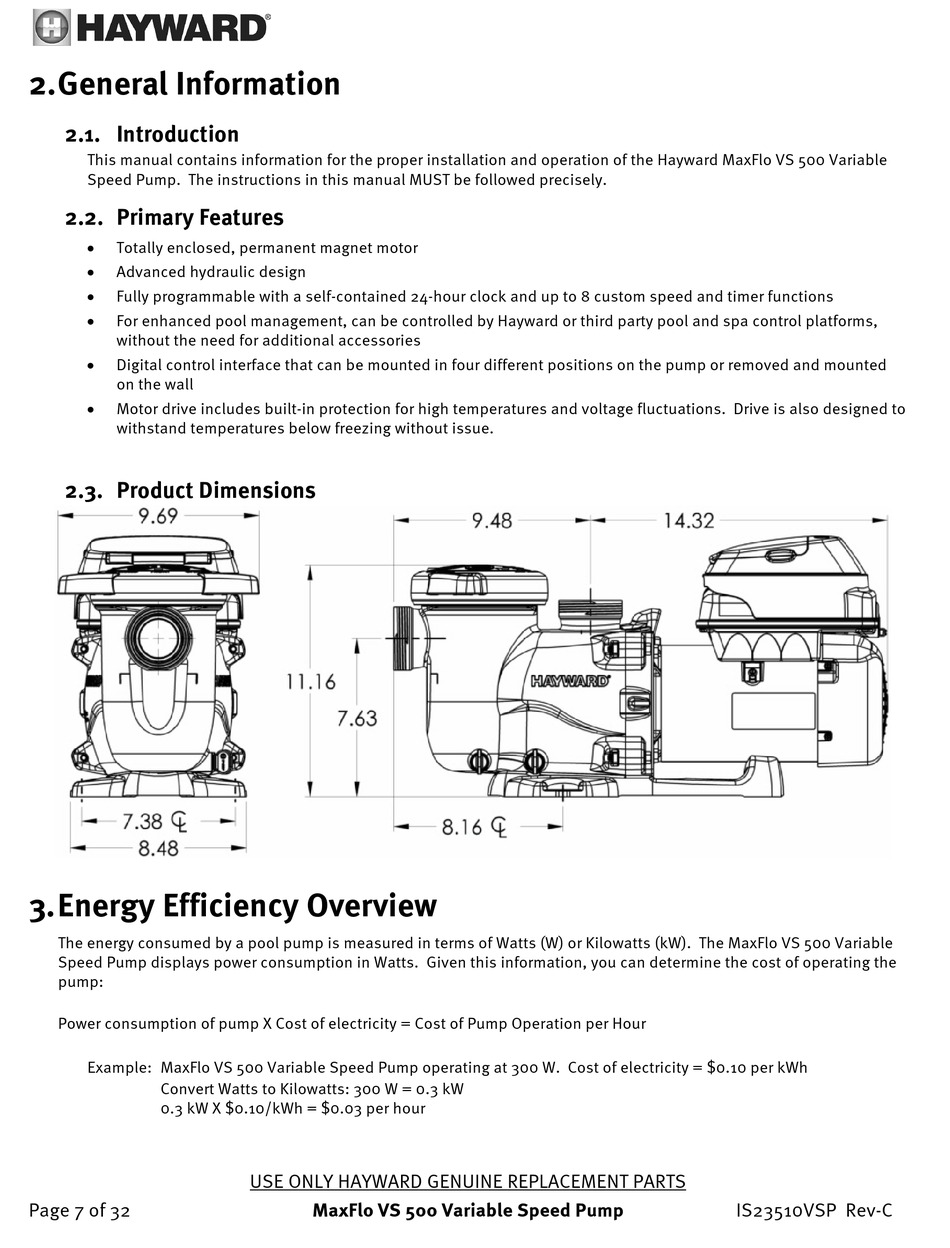

2. General Information

2.1. Introduction

This manual contains information for the proper installation and operation of the Hayward MaxFlo VS 500 Variable
Speed Pump. The instructions in this manual MUST be followed precisely.

2.2. Primary Features


Totally enclosed, permanent magnet motor

Advanced hydraulic design

Fully programmable with a self-contained 24-hour clock and up to 8 custom speed and timer functions

For enhanced pool management, can be controlled by Hayward or third party pool and spa control platforms,
without the need for additional accessories

Digital control interface that can be mounted in four different positions on the pump or removed and mounted
on the wall

Motor drive includes built-in protection for high temperatures and voltage fluctuations. Drive is also designed to
withstand temperatures below freezing without issue.

2.3. Product Dimensions

3. Energy Efficiency Overview

The energy consumed by a pool pump is measured in terms of Watts (W) or Kilowatts (kW). The MaxFlo VS 500 Variable
Speed Pump displays power consumption in Watts. Given this information, you can determine the cost of operating the
pump:
Power consumption of pump X Cost of electricity = Cost of Pump Operation per Hour
Example: MaxFlo VS 500 Variable Speed Pump operating at 300 W. Cost of electricity = $0.10 per kWh
Convert Watts to Kilowatts: 300 W = 0.3 kW
0.3 kW X $0.10/kWh = $0.03 per hour
Page 7 of 32
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
MaxFlo VS 500 Variable Speed Pump IS23510VSP Rev-C
