QUICK START PROCEDURE

INITIAL SETUP

1. Install AD9102 software and support files on your PC from the CD. The installer will automatically access the National
Instruments web site and download NI-VISA-4.6.2 and the Labview 2009 Runtime Engine.
2. Connect the EVB to your PC and lab equipment as shown in Figure 3 below. Use a USB cable to connect your PC to the
EVB.
It is suggested that the basic set-up is verified before making any modifications to the evaluation board.

Basic Hardware Set-Up

Connect the equipment to the AD9102 evaluation board as follows:
Equipment
Power Supply
Signal Source Clk
PC USB Cable
Oscilloscope
PROCEDURE FOR SETTING UP THE AD9102 TO RUN EXAMPLE CONFIGURATIONS
1. Turn on the 5V supply and the clock source
2. Start the AD9102 GUI Software
3. Follow the steps to get one of the six example configurations running
2010
© Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
Connects to AD9102 Eval Board
P3 (+5V), P7 (GND)
J10 (DAC Clock ), Set source to 1440MHz or lower, 3dBm output
XP2
J2 (DAC1_P) and J8 (DAC1_N)

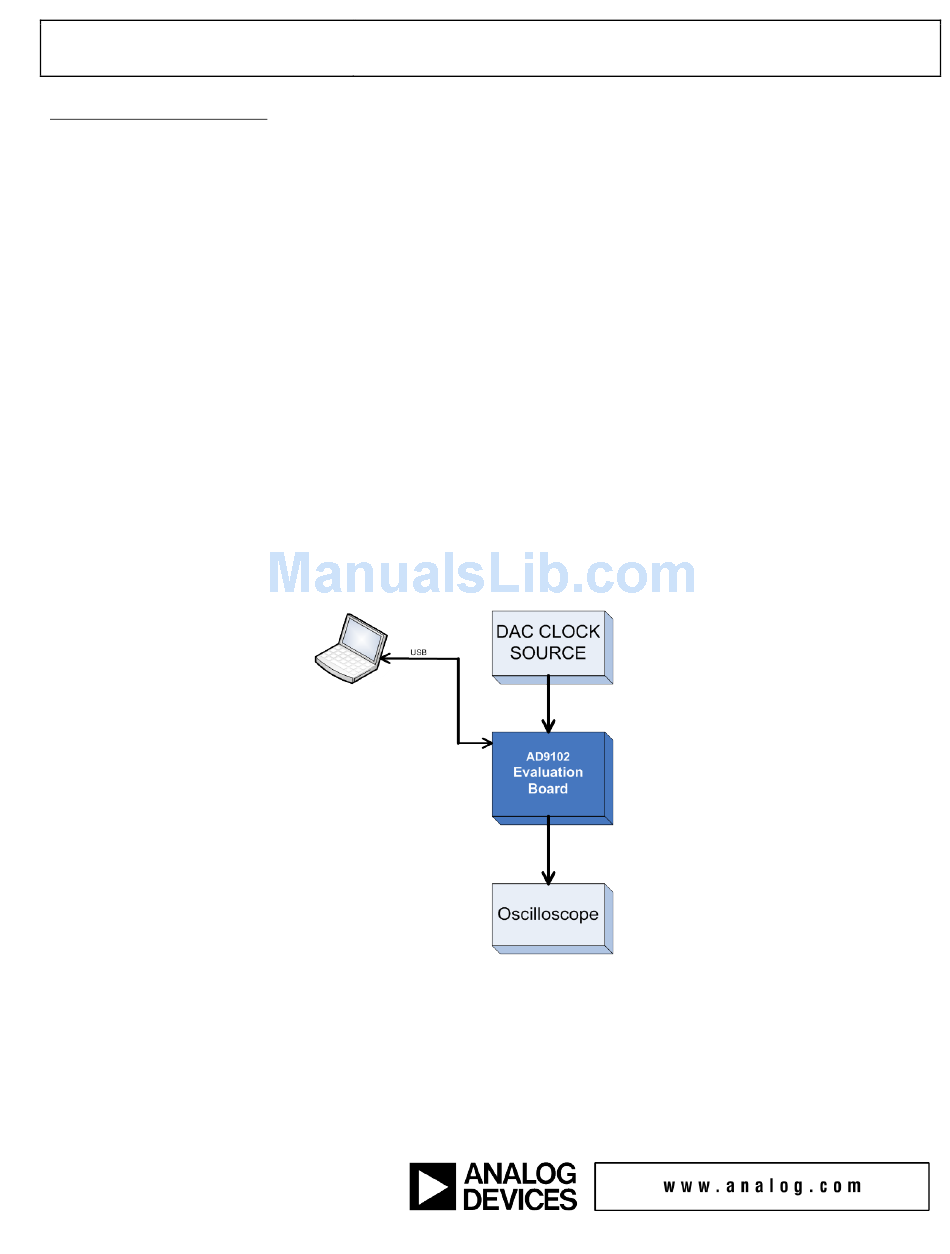

Figure 3: EVB Bench set up
D00000-0-1/0
AD9102-EBZ
