Quick Start Guide

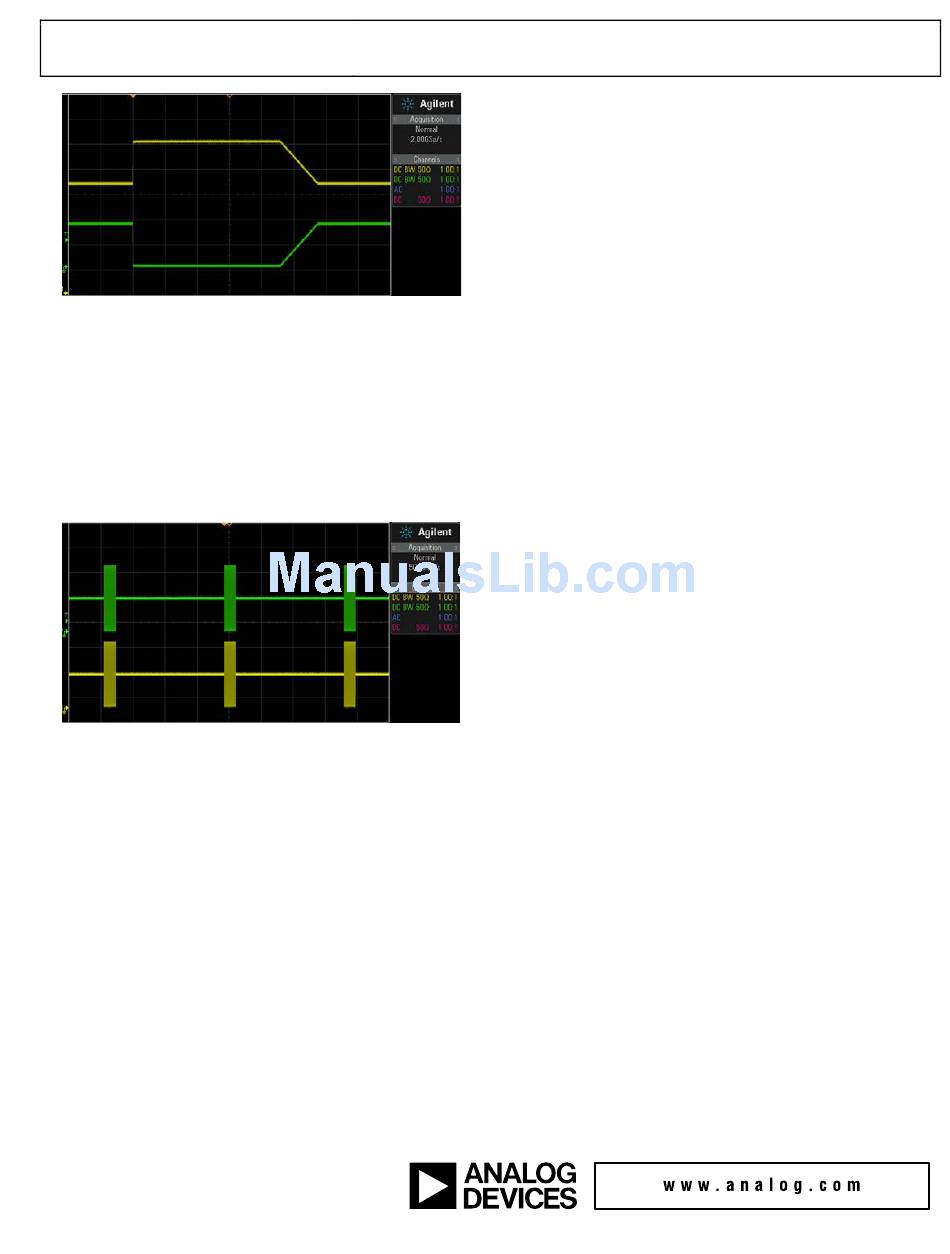

Figure 5 : Example 2 Result
Example3 Set-Up
a. Select the Register_Write_Sequence tab
b. Highlight the Default.seq file and example3.regval file – see Figure 2Error! Reference source not found.
c. Click on the "Load Register Sequence from File" button
d. Open the Board Config tab, Set Trigger slide switch to ON, Press Write Active Tab Button
e. Set trigger slide switch to OFF, Press Write Active Tab Button
f. The outputs from J2 and J8 will be as shown in Figure 6
Figure 6 : Example 3 Result
Example4 Set-Up
a. Select the Register_Write_Sequence tab
b. Highlight the Default.seq file and example4.regval file – see Figure 2
c. Click on the "Load Register Sequence from File" button
d. Open the Board Config tab, Set Trigger slide switch to ON, Press Write Active Tab Button
e. Set trigger slide switch to OFF, Press Write Active Tab Button
f. The outputs from J2 and J8 will be as shown in Figure 7
