Quick Start Guide
The BOARD CONFIG tab can be used to configure the evaluation board for power supply and signal levels
– Figure 11.
At the bottom of the page, there are also two tabs:
- Register_content Tab : Reports the current register value of the part
- Register_Write_Sequence Tab: Allows configurations to be written to the AD9102 following a
pre-determined sequence. Examples of sequence and register configurations are provided in the
evaluation software and user defined configuration can be saved and loaded.
2010
© Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.

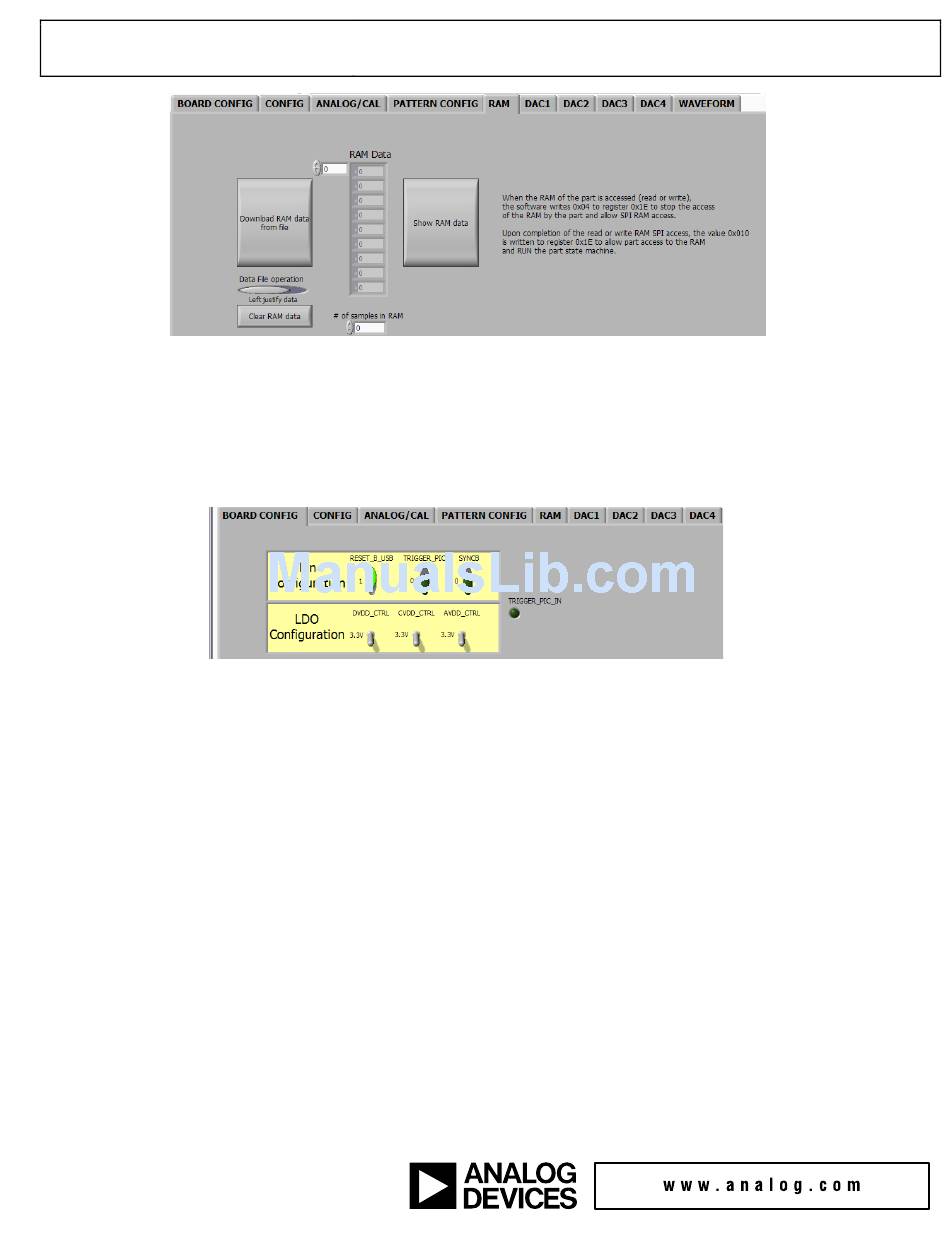

Figure 10 :AD9102 Evaluation software RAM TAB
