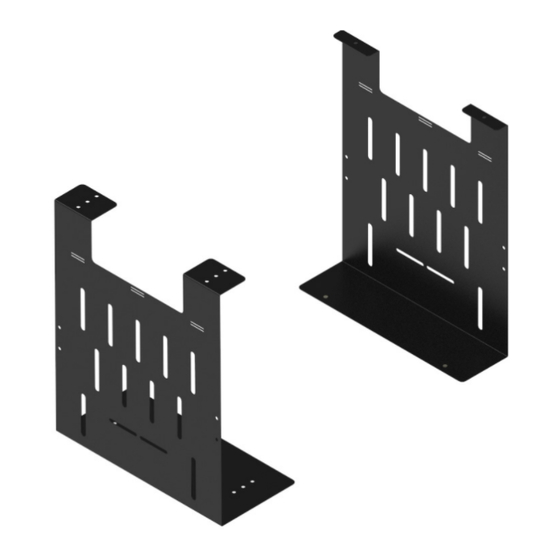

Universal cpu sling

Advertisement

Quick Links

Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) 0179780
Sling side
(with holes)
(6) 035674
Adhesive bumper
3/4" dia x 5/32" Thick
(1) 0166363
Bracket assembly
for Evolution Desk /
Esports Evolution Desk
(1) 0160670
Sling side
(with threaded studs)
(4) 0101382
#14 x 7/8" PHSM
(1) 0179776
Custom Bracket
for Evolution Electric Sit-
To-Stand Desk
Universal CPU Sling
38925
Assembly tip: Do not tighten component fasteners completely
until all have been installed. Keeping them loose will help with
alignment between parts during assembly.
(6) 042025
1/4-20 x 3/8" THMS
(1) 0179881
Custom Bracket
for Esports GG desk
(2) 034195
1/4-20 wing nut
(1) 0179787
Custom Bracket
for Esports Shoutcaster
0193995R1 Page 1 of 5
