EL-6010-4K22

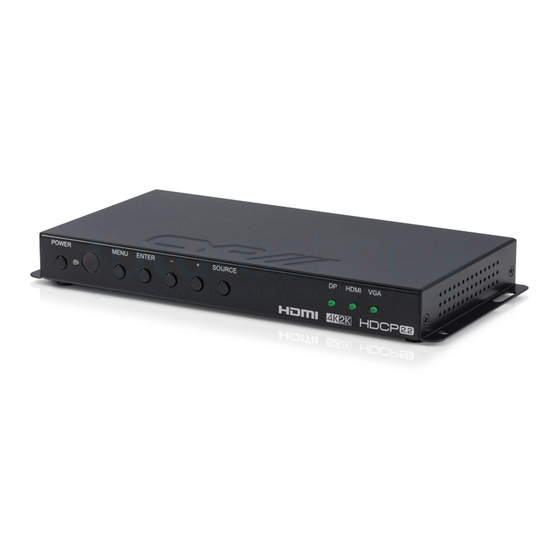

HDMI/VGA/Display Port to HDMI Scaler
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-6010-4K22 and is the answer not in the manual?

Questions and answers

Related Manuals for CYP EL-6010-4K22

Summary of Contents for CYP EL-6010-4K22

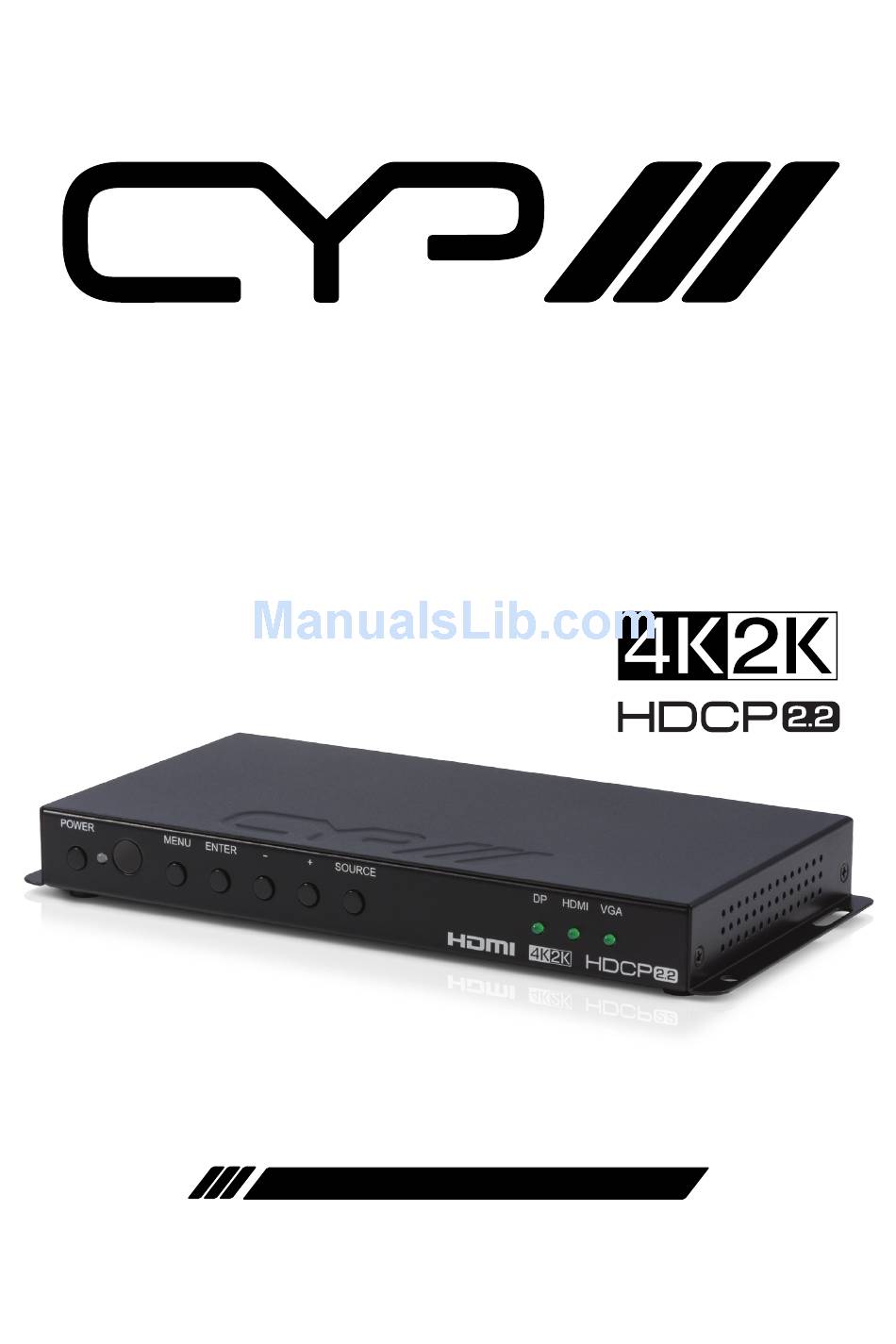

  • Page 1 EL-6010-4K22 HDMI/VGA/Display Port to HDMI Scaler OPERATION MANUAL...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.

  • Page 3: Table Of Contents

    CONTENTS 1. Introduction ....................1 2. Applications ..................... 1 3. Package Contents .................. 1 4. System Requirements ................2 5. Features ....................2 6. Operation Controls and Functions ............3 6.1 Front Panel ..................3 6.2 Rear Panel ................... 5 6.3 WebGUI ....................

  • Page 4: Introduction

    1. INTRODUCTION This multi-format scaler features the three most popular input interfaces utilized on source devices: HDMI, DisplayPort and VGA. This unit is an ideal solution for use in conference rooms and showrooms and for any customer who has a requirement to match disparate input sources to the native resolution of a display.

  • Page 5: System Requirements

    4. SYSTEM REQUIREMENTS Input source equipment such as media players, PCs/laptops, video game consoles or set-top boxes. HDMI receiving equipment such as HDTVs, monitors or audio amplifi ers. Powered analog speakers are recommended for optional audio support. 5. FEATURES • Multiple input formats including HDMI, DisplayPort and VGA •...

  • Page 6: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER POWER MENU MENU ENTER ENTER SOURCE SOURCE HDMI HDMI 1 2 3 1 2 3 9 10 11 9 10 11 POWER : Press this button to power on the unit or place it into stand-by mode.
  • Page 7 The following hotkey functions are also available: 1. Auto Adjust (only for VGA IN function): Press the ENTER button when the OSD menu is not active and the input source is VGA to execute the auto adjust function. The image will be automatically adjusted to the optimal aspect ratio.

  • Page 8: Rear Panel

    6.2 Rear Panel AUDIO AUDIO DC 5V HDMI OUT DP IN HDMI IN VGA IN SERVICE CONTROL RS232 HDMI OUT : Connect to HDMI TVs, monitors or amplifi ers for digital video and audio output. AUDIO OUT: Connect to powered speakers or an amplifi er for stereo analog audio output.

  • Page 9: Webgui

    6.3 WebGUI Install the IP Discovery Tool: (1) Please obtain the Device Discovery software from your authorized dealer and save it in a directory where you can easily fi nd it. Note: The unit’s default IP address is 192.168.1.50 (2) Connect the unit and your PC/Laptop to the same active network and execute the Device Discovery software.

  • Page 10: Webgui Control Page

    6.3.1 WebGUI Control Page All functions, including power, 4KUHD Bypass input selection, EDID management, HDCP management, output adjustments, OSD settings, Ethernet settings, volume adjustments, and reset/fi rmware functions, are presented on a single web page to allow for intuitive operation. The individual functions will be introduced in the following sections.

  • Page 11: Uhd 4K Bypass

    6.3.3 UHD 4K Bypass The UHD 4K bypass input is able to be selected bypass or down scale. Please select the bypass "On" to remain 4K UHD input or "Off" for down scale. 6.3.4 Input Source Selection and Auto Source Detection (a) Source: The input source can be selected here.

  • Page 12: Edid & Hdcp Settings

    6.3.5 EDID & HDCP Settings (a) EDID: Four EDID options are available: Internal 4K2K, Internal 1080p, External TV (EDID is copied from the connected display device) and External TV+2ch (EDID is copied from the connected display device but the audio is set to LPCM 2.0). (b) HDCP: HDCP support can be enabled, disabled or set to follow the capability of the connected display device.

  • Page 13: Display Settings

    6.3.7 Display Settings The output timing, aspect ratio, and other video processing functions can be confi gured in this tab. (a) Output: The preferred output timing can be selected here. Selecting NATIVE will use the native timing reported by the EDID of the connected display device.
  • Page 14 (c) Contrast, Brightness, Saturation, Hue and Sharpness: These settings control the image quality of the output. Each setting can be adjusted from 0 to 100 based on user preference. 6.3.8 OSD Settings This tab allows for the control and adjustment of all available OSD (On Screen Display) settings.

  • Page 15: Ethernet Settings

    6.3.9 Ethernet Settings The unit’s Ethernet settings are confi gured in this tab. The IP connection timeout can be set to a time between 10 and 60 minutes, or it can be disabled (OFF). The IP address can be confi gured by your network automatically (DHCP) or the unit’s IP settings can be manually confi...

  • Page 16: Reset Options

    6.3.11 Reset Options This tab provides options for returning the Display, Audio, OSD and Ethernet settings to their individual factory defaults. It also allows you to perform a system-wide Factory Reset (returns all settings to the factory defaults). 6.3.12 Setup To update the fi...

  • Page 17: Telnet Control

    6.4 Telnet Control Before attempting to use telnet control, please ensure that both the unit and the PC/Laptop are connected to the same active networks. To access Telnet in Windows 7, click on the “Start” menu and type “cmd” in the search fi eld, then press “Enter”. Under Windows XP go to the “Start”...
  • Page 18 This will connect us to the unit we wish to control. Type "help" or “?” to list the available commands. Note: Commands will not be executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.

  • Page 19: Rs-232 Command List

    6.5 RS-232 Command List On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address on the web address entry bar. A security page will appear to ask for User and Password, please key in “Admin”...
  • Page 20 COMMAND DESCRIPTION SRES SET OUTPUT RESOLUTION!! SRES PARAM=(0~36). (0)=800X600P60,(1)=1024X768P60,(2)=1280X800P60(3)= 1280X1024P60 (4)=1366X768P60,(5)=1400X1050P60,(6)=1600X900P60 (7)=1600X1200P60,(8)=1680X1050P60,(9)=1920X1200P (10)=1280X720P50,(11)=1280X720P59,(12)=1280X72 0P60 (13)=1920X1080I50,(14)=1920X1080I59,(15)=1920X108 0I60 (16)=1920X1080P23,(17)=1920X1080P24,(18)=1920X108 0P25 (19)=1920X1080P29,(20)=1920X1080P30,(21)=1920X108 0P50 (22)=1920X1080P59,(23)=1920X1080P60,(24)=2048X108 0P23 (25)=2048X1080P24,(26)=3840X2160P23,(27)=3840X216 0P24 (28)=3840X2160P25,(29)=3840X2160P29,(30)=3840X216 0P30 (31)=3840X2160P50,(32)=3840X2160P59,(33)=3840X216 0P60 (34)=4096X2160P23,(35)=4096X2160P24,(36)=Native RRES SHOW CURRENT OUTPUT RESOLUTION!! RRES NO PARAMETER!!
  • Page 21 COMMAND DESCRIPTION SSCRSEL SET INPUT SOURCE CHANNEL!! SSCRSEL PARAM=(0~2) (0)=HDMI,(1)=DISPALY PORT,(2)=VGA,(3)=DEFAULT. RSCRSEL SHOW CURRENT INPUT SOURCE CHANNEL!! RSCRSEL NO PARAMETER!!" SAUTOSCR SET INPUT AUTO DETECT SOURCE!! SAUTOSCR PARAM(0/1) 0=OFF,1=ON!! RAUTOSCR SHOW CURRENT INPUT AUTO DETECT SOURCE STATUS!! RAUTOSCR NO PARAMETER!! SCON SET CONTRAST VALUE!! SCON PARAM PARAM(0~100) VALUE.
  • Page 22 COMMAND DESCRIPTION RSHP SHOW SHARPNESS CURRENT VALUE!! RSHP NO PARAMETER!! SAUTOADJ SET AUTO ADJUST!! SAUTOADJ NO PARAMETER!! SPICDEF RESET CONTRAST,BRIGHTNESS,SATURTATION,HUE,SHARP NESS,VALUE TO DEFAULT!! SPICDEF NO PARAMETER!! SASPECT SET DISPLAY ASPECT!! SASPECT PARAM PARAM=(0~4). (0)=ASPECT FULL,(1)=ASPECT 16:9,(2)=ASPECT 16:10, (3)=ASPECT 4:3,(4)=KEEP RATIO. RASPECT SHOW DISPLAY CURRENT ASPECT!! RASPECT NO PARAMETER!!
  • Page 23 COMMAND DESCRIPTION SOSDMT SET OSD MAIN MENU DISPLAY TIME!! SOSDMT PARAM PARAM=(0~9) . (0)=5 SEC ,(1)=10 SEC ,(2)=15 SEC ,(3)=20 SEC ,(4)=25 SEC ,(5)=30 SEC (6)=35 SEC ,(7)=40 SEC ,(8)=45 SEC ,(9)=OFF. ROSDMT SHOW OSD MAIN MENU DISPLAY CURRENT TIME!! ROSDMT NO PARAMETER!! SOSDIT SET OSD INFOMATION MENU DISPLAY TIME!!
  • Page 24 COMMAND DESCRIPTION SIPADD SET STATIC IP ADDRESS!! SIPADD PARAM PARAM=xxx.xxx.xxx.xxx xxx=(0~255) RIPADD SHOW STATIC CURRENT IP ADDRESS TO SCREEN!! RIPADD NO PARAMETER!! SMAADD SET STATIC SUBNET ADDRESS!! SMAADD PARAM PARAM=xxx.xxx.xxx.xxx xxx=(0~255) RMAADD SHOW STATIC CURRENT SUBNET ADDRESS TO SCREEN!! RMAADD NO PARAMETER!! SGAADD SET STATIC GATEWAY ADDRESS!! SGAADD PARAM...
  • Page 25 COMMAND DESCRIPTION RMAC SHOW CURRENT MAC ADDRESS TO SCREEN!! RMAC NO PARAMETER!! SMUTE SET MUTE AUDIO!! SMUTE PARAM,PARAM=(0/1) 0=MUTE,1=UNMUTED. RMUTE SHOW CURRENT MUTE TO SCREEN!! RMUTE NO PARAMETER!! SAVOL SET AUDIO VOLUME!! SAVOL PARAM,PARAM=(0~100) VALUE. RAVOL SHOW CURRENT AUDIO VOLUME!! SAVOL NO PARAMETER!! SAUODEF SET AUDIO DEFAULT VALUE!!

  • Page 26: Osd (On Screen Display) Menu

    COMMAND DESCRIPTION IPCONFIG SHOW ETHERNET ADDRESS TO SCREEN!! IPCONFIG NO PARAMETER!! RBIOS SHOW BIOS VERSION TO SCREEN!! RBIOS NO PARAMETER!! RINRES SHOW INPUT RESOLUTION TO SCREEN!! RINRES NO PARAMETER!! SBYPASS SET INPUT 4K OUTPUT RESOLUTION BYPASS!! SBYPASS PARAM,PARAM=(0/1) 0=OFF,1=ON. RBYPASS SHOW CURRENT 4KBYPASS MODE STATUS!! RBYPASS NO PARAMETER!! 6.6 OSD (On Screen Display) Menu...
  • Page 27 ADJUSTABLE FIRST LEVEL SECOND LEVEL PARAMETERS AND DEFAULT SETTINGS 1920X1080P 23/24/25/29/30/50/59/60 2048X1080P23/24 3840X216 0P23/24/25/29/30/50/59/60 4096X2160P23/24 NATIVE Input UHD4K Select on or off. The On / Off Bypass default setting is “Off” Select On or Off, HDMI Input default is ON Select On or Off, DP Input default is OFF...
  • Page 28 ADJUSTABLE FIRST LEVEL SECOND LEVEL PARAMETERS AND DEFAULT SETTINGS Select No or Yes), Auto Adjust default is No Select No or Yes), Picture Reset default is No Select ON or OFF, Aspect Full default is ON Select ON or OFF, Aspect 16:9 default is OFF Select ON or OFF,...
  • Page 29 ADJUSTABLE FIRST LEVEL SECOND LEVEL PARAMETERS AND DEFAULT SETTINGS Static or DHCP, IP Mode default is Static IP/ Subnet/ Gateway, IP Set default is IP Adjust from 0~255, Byte 1 High default is 192 Adjust from 0~255, Byte 2 default is 168 Adjust from 0~255, Byte 3 default is 1...
  • Page 30 ADJUSTABLE FIRST LEVEL SECOND LEVEL PARAMETERS AND DEFAULT SETTINGS EDID SET: Int.4K2K/ Int.1080P/ Ext.TV/ Ext.TV 2CH), EDID SET default is Int.1080P EDID & HDCP HDCP SET: Enable, Disable or Follow Out, default is HDCP Out Enable No or OK, default is Firmware Update Setup NO or OK, default is...

  • Page 31: Remote Control Unit

    6.7 Remote Control Unit POWER: Press to power on the unit or place it into stand- by mode. XGA: Press to set the output timing to XGA (1024x768@60Hz). INFO 720P INFO: Press to show video information on the OSD. VGA IN HDMI IN DP IN VGA IN: Press to switch to the...

  • Page 32: D-Sub 9 Pin Defi Nition

    6.8 D-sub 9 Pin Defi nition Defi ne TX / RX TxD/RxD RxD/TxD Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 33: Connection Diagram

    7. CONNECTION DIAGRAM Laptop DVD or Blu-ray Player HDMI Input VGA Input DisplayPort Analog Stereo Input Input Internet Enabled Router AUDIO AUDIO DC 5V RS-232 HDMI OUT DP IN HDMI IN VGA IN SERVICE CONTROL RS232 Power Supply HDMI Analog Stereo Output Output RS-232 Control System...

  • Page 34: Specifi Cations

    8. SPECIFICATIONS 8.1 Technical Specifi cation Input Ports 1x HDMI 1x VGA 1x DisplayPort 1x audio in Output Ports 1x HDMI out 1x audio out Control Interfaces 1x RS-232 1x Service (USB 2.0) 1x Control Supported Resolutions Up to 4K@60Hz for HDMI & DP input and output Up to 1680 x 1050@ 60Hz for VGA input Baud Rate...

  • Page 35: Supported Timing Table

    8.2 Supported Timing Table INPUT TIMING HDMI / DISPLAYPORT 480i/60,576i/50,480p/60,576p/50  480p/60  576p/50  720p/50/60    (640x480) 800x600/56/60/72/75/85  1080i/50/60  1080p/24/25/30/50/60   1280x720/60 1024x768/60/70/75/85   1280x768/60/75   1280x800/60/75   1280x1024/60/75   1366x768/60 ...

  • Page 36: Maximum Hdmi Cable Length

    OUTPUT TIMING HDMI 800x600/60  1024X768/60  1280X800/60  1280X720P/50/59/60  1280X1024/60  1366X768/60  1400X1050/60  1600X900P60RB  1600X1200/60  1680X1050/60  1920x1200/60RB  1920X1080i/50/59/60  1920X1080P/50/59/60  2048X1080P/23/24  3840X2160P50/59/60  4096X2160P/23/24  Native  8.3 Maximum HDMI cable length TIMING INPUT OUTPUT...
  • Page 40 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV3...
