3.2 MECHANICAL INSTALLATION
3.2.1 Orient The Display For Convenient Viewing
Both the electronics enclosure and the display itself can be rotated to four different
orientations to change the viewing angle for the display. If necessary, this should be done
before the meter is installed.

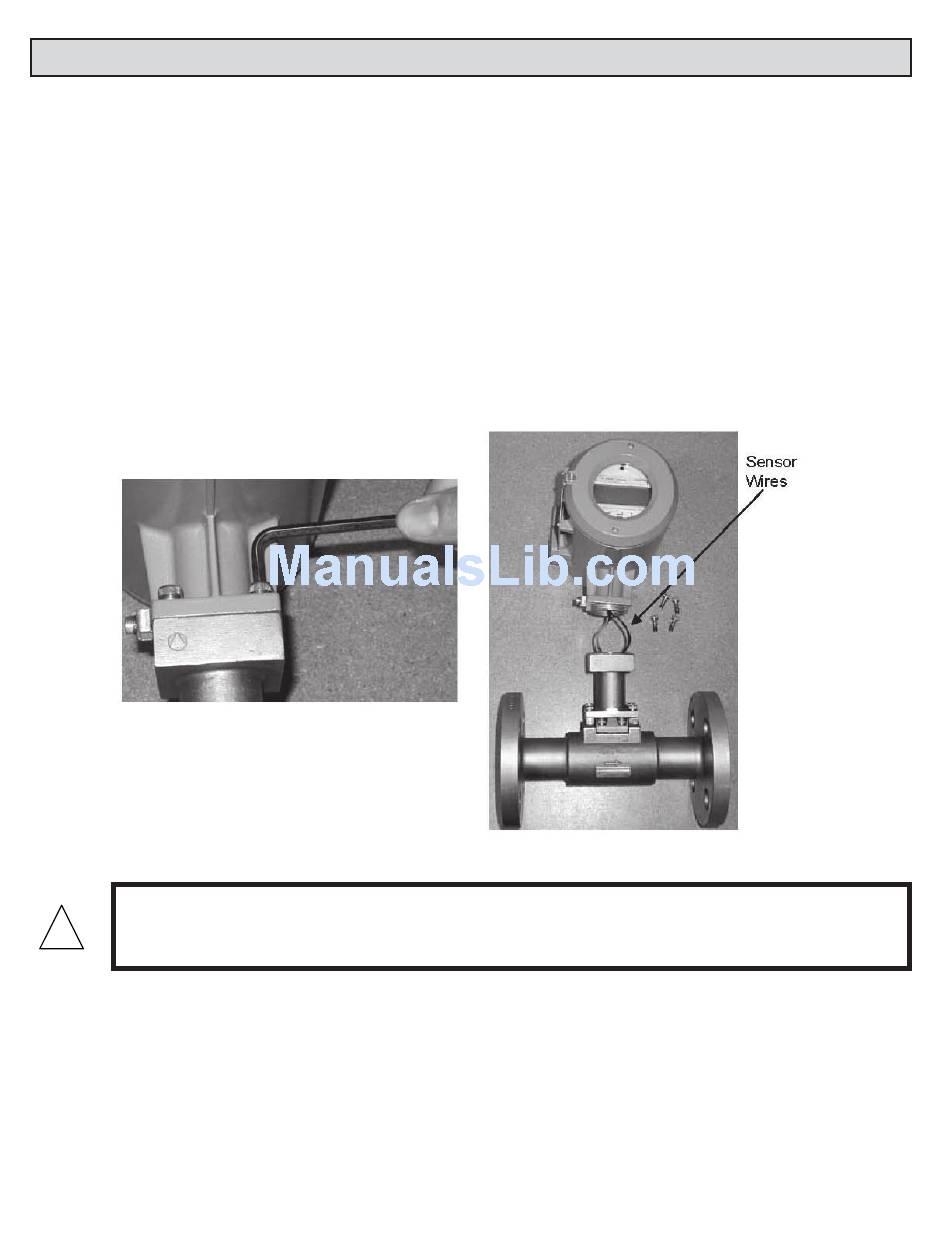

3.2.1.1 Rotating the electronics enclosure
The electronics enclosure is attached to the meter body with (4) 5mm Allen head
screws. To rotate the enclosure, you must fi rst remove the screws and then carefully
rotate the enclosure as needed. The interconnecting stem assembly is a conduit for
wires that connect the sensors to the circuitry contained in the enclosure. Care must
be taken to prevent these wires from being damaged when rotating the enclosure.
!
Make certain the sensor wires are not damaged when re-attaching the enclosure.
F-2200 Series Vortex Flow Meter Installation and Operation Guide • Revised 12/08
CAUTION
15
