SECTION 5.0: FLOW STRAIGHTENER FOR VORTEX FLOW METERS
SIZE
DIM B
0497
F-2200 Series Vortex Flow Meter Installation and Operation Guide • Revised 12/08
T
ABLE 1 - ALL DIMENSIONS SHOWN IN INCHES
DIM A
2"
3.93
3"
5.31
4"
6.26
6"
8.50
8"
10.62
0.125
GASKET THICKNESS, NOMINAL
DIM C
DESCRIPTION

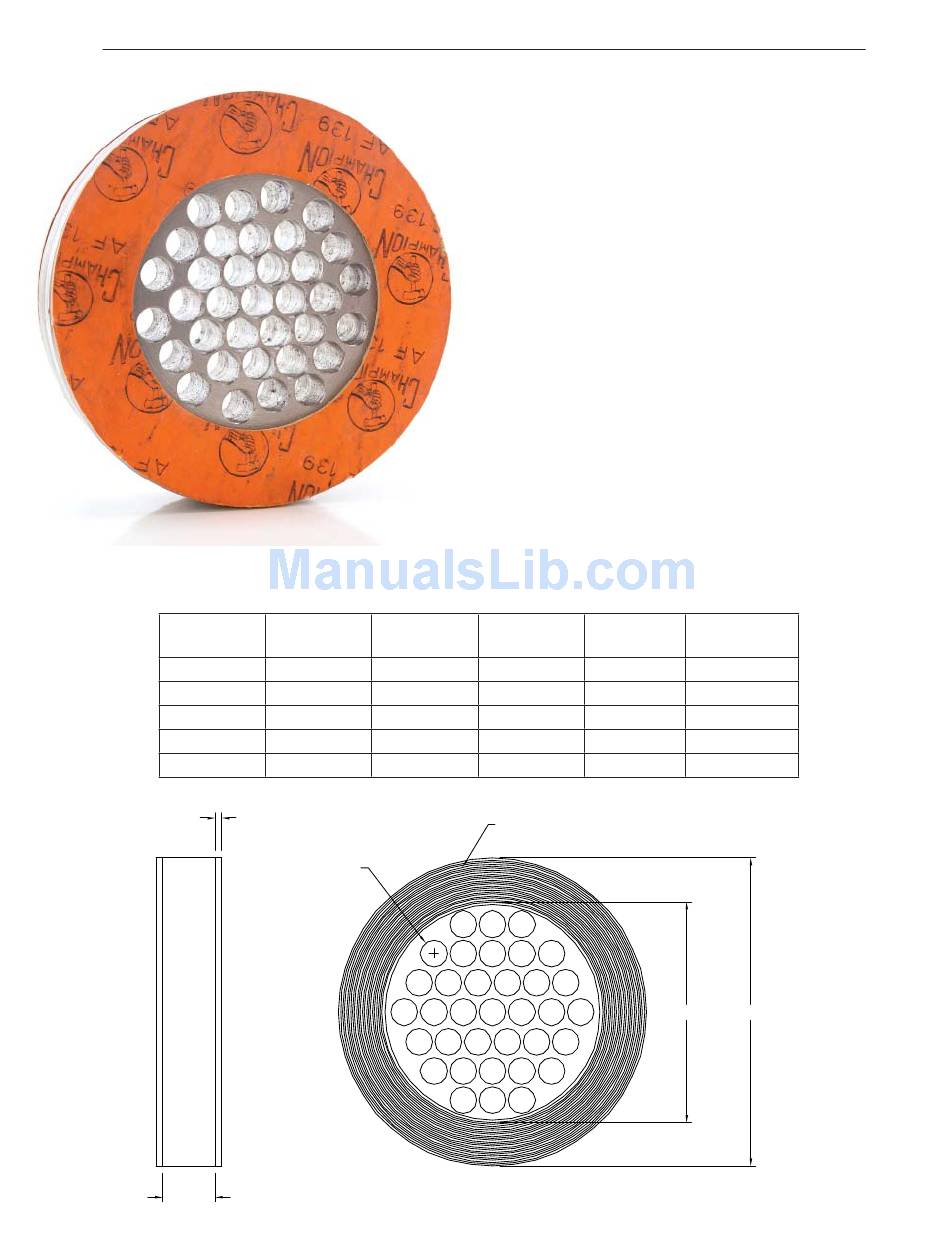

The optional fl ow straightener accessory for
ONICON F-2000 Series Vortex Flow Meters is a
wafer-style fl ow conditioner that is designed to be
installed between two recessed fl anges (provided
by installer) that are located a specifi ed distance
upstream of the fl ow meter.
Use of a fl ow straightener signifi cantly reduces the
upstream straight pipe length requirement for
ONICON Vortex Flow Meters.
The size of the straightener should always match
the meter size (as opposed to the original pipe size).
The fl ow straightener is made of 304/A 351 CF8
stainless steel.
DIM B
DIM C
1.0625
.28
1.0625
.43
1.0625
.55
1.0625
.78
1.0625
1.02
SERRATIONS SHOWN LOCATED UNDER GASKET, IF PROVIDED
NOTE: DIMENSION D INDICATES I.D. FOR SERRATIONS
22
DIM D
NUMBER OF
HOLES
2.14
35
3.24
35
4.22
35
6.07
35
7.98
35
DIM D
DIM A
8-06
