Chapter 3: Installation of SSD and Modules
Installing a GPS Module

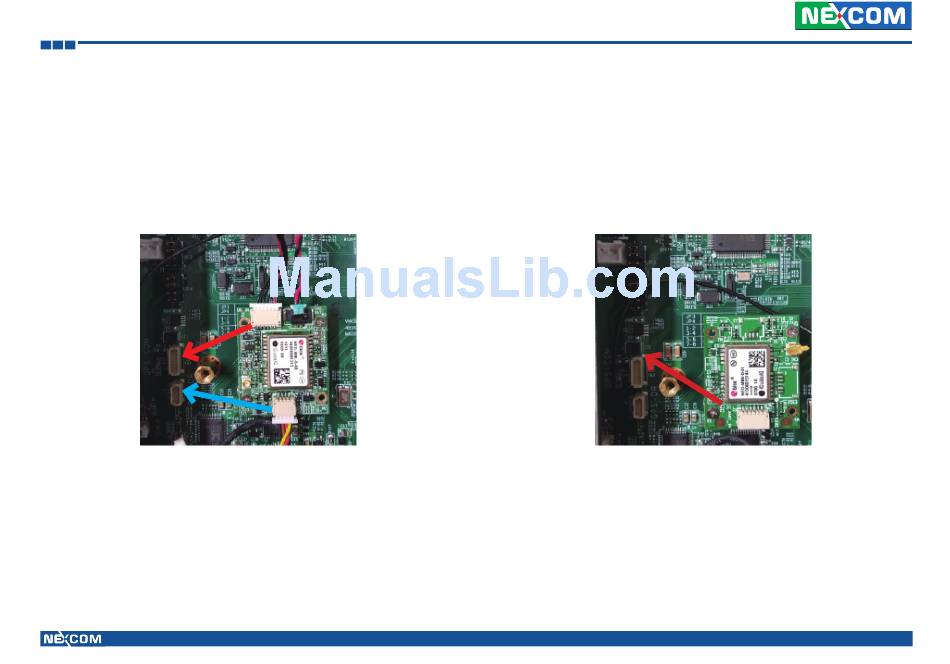

1. When installing the GPS-02 (M8L) module for DR function, please insert
the cable onto the correct connectors.
Red: GPS signal and power
Blue: Odometer and direction
Copyright © 2016 NEXCOM International Co., Ltd. All rights reserved
2. When installing the GPS-02 (M8N) module, please insert the cable onto
the correct connectors.
Red: GPS signal and power
29
