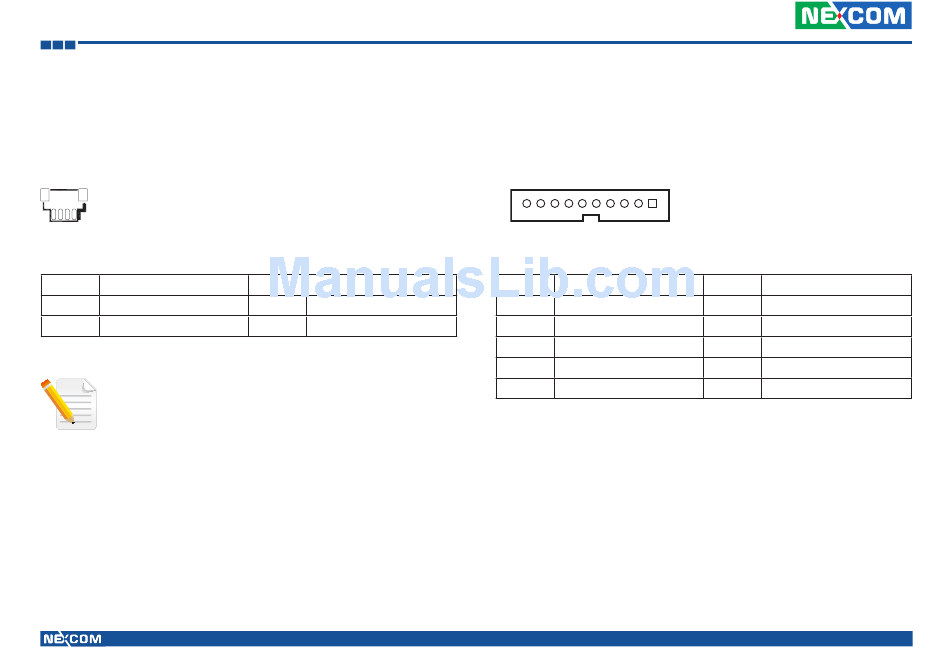

Chapter 2: Jumpers and Connectors

GPS DR Function (Odometer and Direction)

Connector size: 1x4 4-pin header, 1.0mm pitch
Connector location: J4
4
1
Pin
Definition
1
GND
3
ODOMETER
When installing the GPS module (M8L) for DR function,
Tx will change to direction and Rx will change to odometer.
The original RS232 Tx and Rx cannot be used anymore.
Copyright © 2016 NEXCOM International Co., Ltd. All rights reserved
Pin
Definition
2
1PPS
4
DIRECTION

Debug Port

Connector size: 1x10 10-pin header, 1.0mm pitch
Connector location: J11
10
Pin
Definition
1
GND
3
33M_CLK
5
LPC_AD3
7
LPC_AD1
9
VCC3
19
1
Pin
Definition
2
PCIRST#
4
LPC_FRAME#
6
LPC_AD2
8
LPC_AD0
10
VCC3
VMC 3020 User Manual
