Step 3:
Assembly of the right side bar (C2)

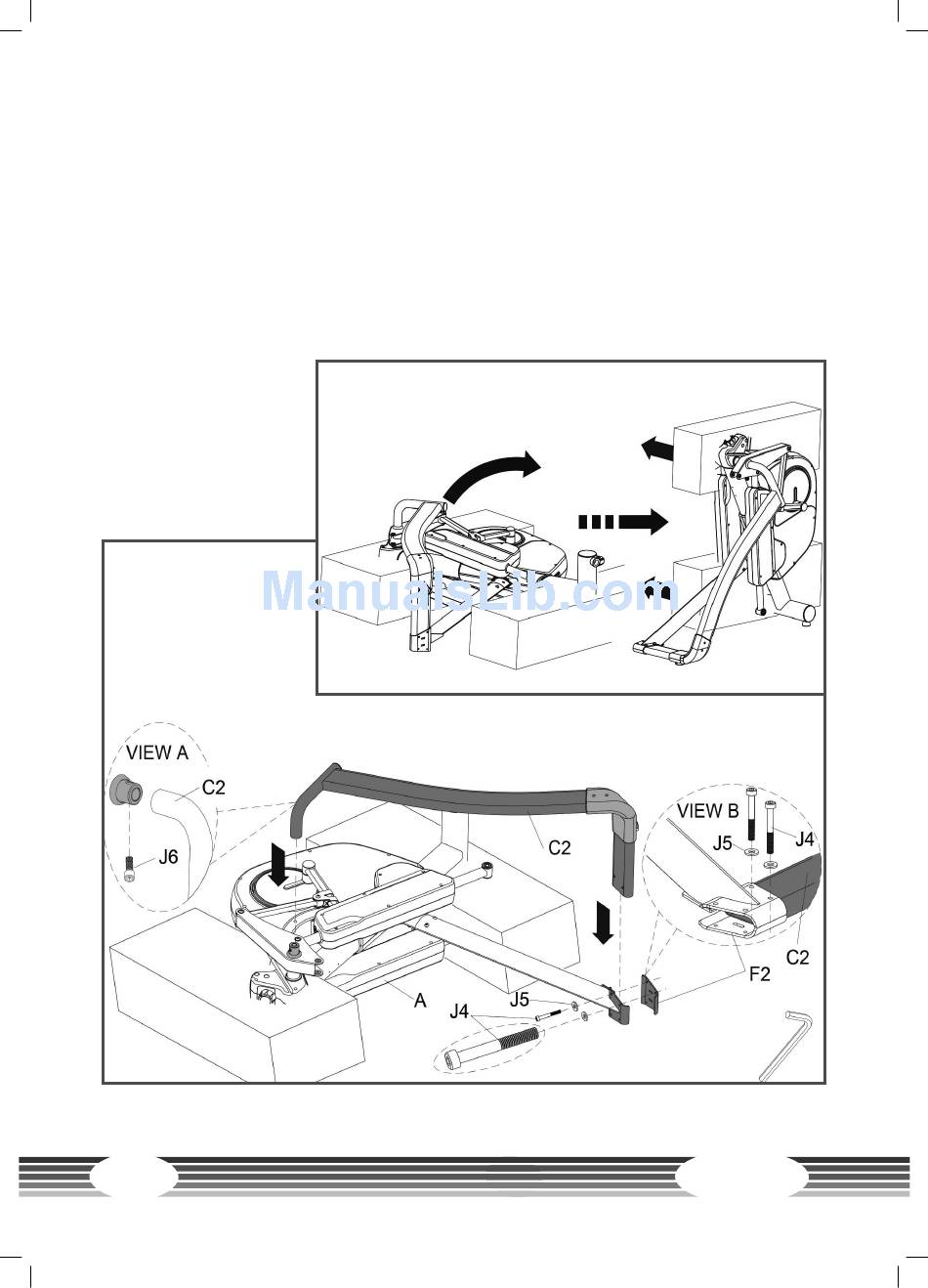

(1) Mount the right side bar (C2) on the main frame (A) with a screw (J8) on top (figure
A) and two screws (J5) including washers (J5) with the bracket (F2) on the bottom
(figure B).
Note: Do not tighten the screws (J6 and J4) completely yet.
(2) Raise the main frame (A) with two people and remove the foam (see figure on the
right).
