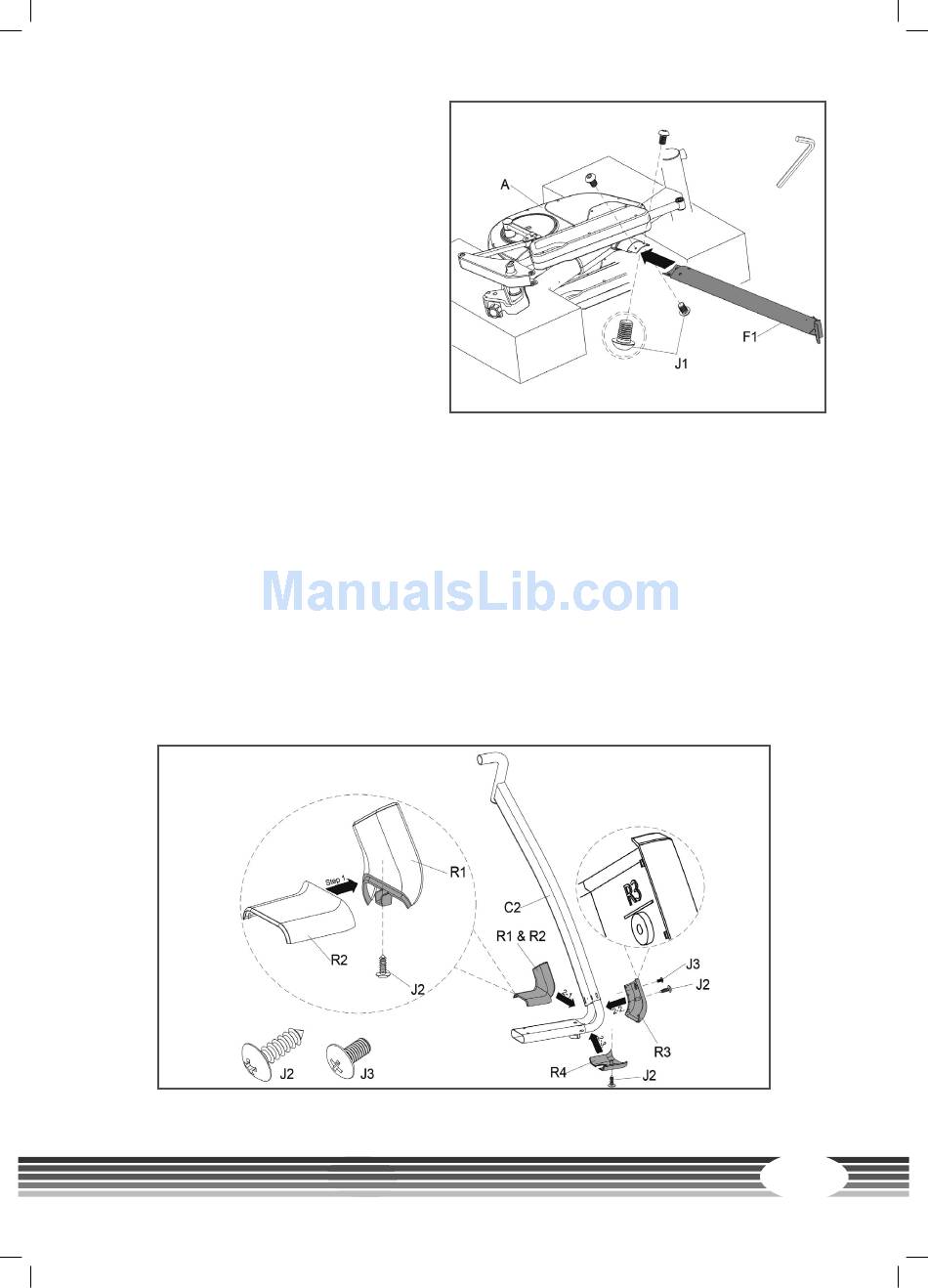

Step 1: Assembly of the main mast
(F1)
(1) Loosen two screws (F5) from the main
frame (A) and two screws from the main
mast (F1).
(2) Connect the main mast (F1) with
the main frame (A) with the previously
loosened four screws (J1).
Note: Before you continue with step 2
of the assembly, make sure that the four
screws (J1) are tightened.
Tool: 6mm Allen key
Step 2: Assembly of the side bar cover sets (L+R)
(1) Mount the right side bar cover (R1) with a screw (J2) on to the cover (R1).
(2) Follow steps 2-1 to 2-4 in order to tighten the side bar cover sets.
2-1. Connect the covers (R1 & R2) on the right connection bar (C2).
2-2. Connect the cover (R3) to the bar (C2).
2-3. Connect the cover (R4) to the bar (C2).
2-4. Secure the covers with the screw (J3) first and then with two screws (J2) as illustrated.
(3) Repeat the same steps as described before in order to assemble the left side bar cover set.
USE THE TOOL: 4mm (Phillips screwdriver)
