TS400 & TS410
Aux 12V Power
The auxiliary 12V terminals provide a permanent 12V
supply for detectors which require a low voltage supply
e.g., PIRs, vibration detectors, smoke detectors etc. The
output is protected by a 1 Amp fuse (Aux 12V).
The maximum available current from the control panel
power supply is 750mA. The following is a typical
example showing how to calculate the available
auxiliary current.
Control Panel
External Sounder
External Strobe
Total
Auxiliary Available = 300mA (750 - 450)
SD1+ (Optional)
The SD1+ is a customer programmable speech dialler
which dials pre-programmed numbers to inform
neighbours etc. of the alarm. It is capable of transmitting
up to 3 messages linked to inputs A, B and C.
SD1+
TRIG C
Set TRIG POLARITY to -ve
BOX
TAMPER
+12V
0V
TRIG B
TRIG A
Note: Only connect TRIG A (FIRE)
and TRIG B (PA) if zones 4 and 5
are programmed as Fire and PA.

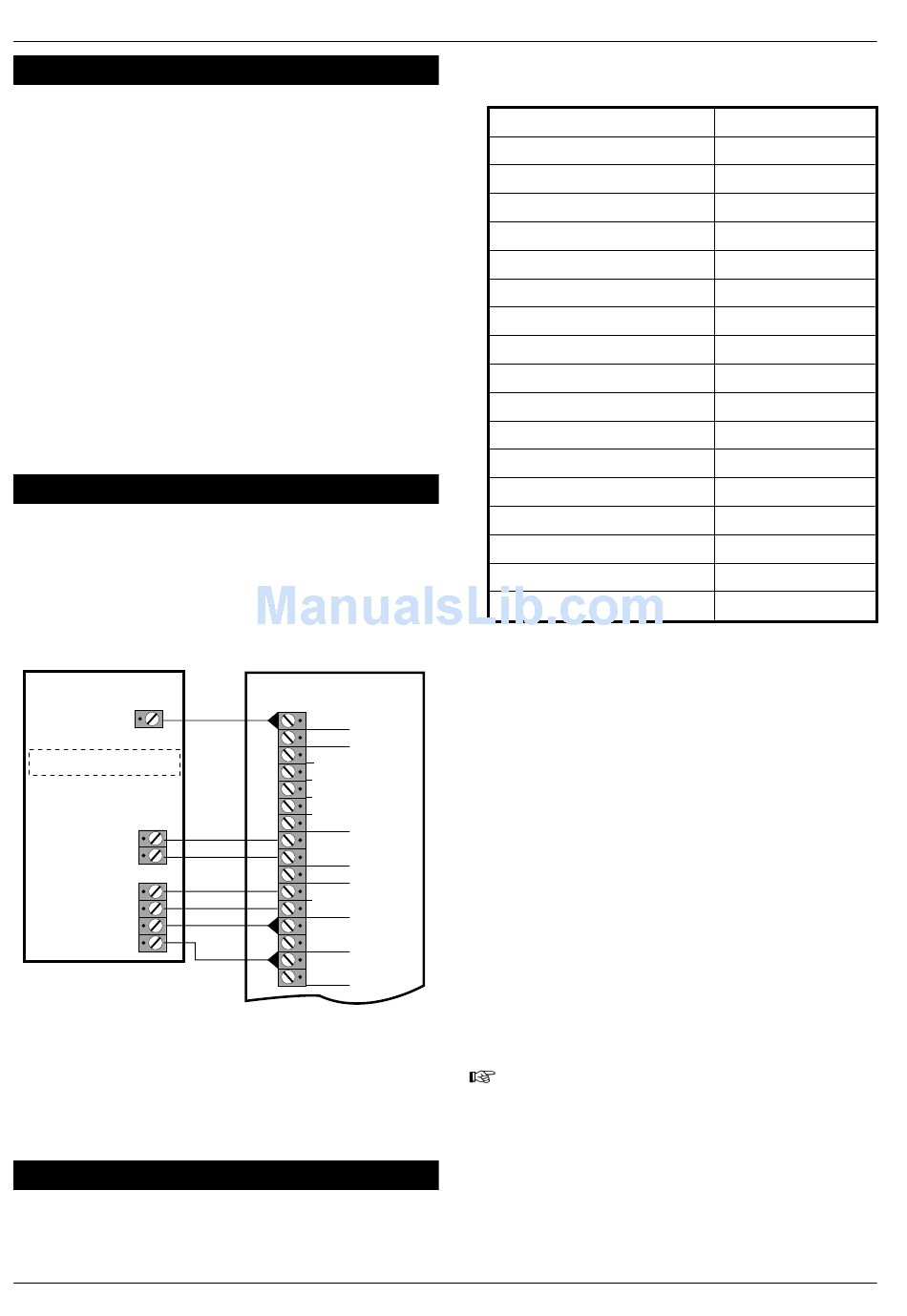

Figure 5. SD1+ Connections Details

Initial Power-Up

Place a small screwdriver blade between the pins
1.
on the control panel PCB, marked FACTORY RESTART
TS400 & TS410
= 85mA
= 250mA
= 115mA
= 450mA
TS400/TS410
ALM -
RST -
TRG -
STB-
+
H/O
-
TMP -
AUX
TAMPER
L/S -
+
AUX 12V
-
ZONE 5 (P A)
ZONE 4 (Fire)
(located just below the LEDs). This will ensure the
factory defaults are loaded as shown below:
Engineer Code
User Code 1
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
Exit Time
Entry Time
Bell Duration
Bell Output
Remote Reset Number
Setting Mode
Reset Authority
Number Of Rearms
Operation Of Keyswitch
RST- Output
HOME Set Configuration
Switch on the 240V mains supply, when the green
2.
UNSET LED is lit remove the screwdriver blade. The
internal alarm will sound and the TAMPER LED will
light.
Enter the engineer's passcode (default 1 2 3 4),
3.
the alarm will silence. Enter the engineer's
passcode again and the TAMPER LED will flash
(engineer programming menu selected).
Connect the standby battery. If the TAMPER LED
4.
lights permanently and the internal alarm sounds
when the battery is connected, then it may be
incorrectly connected or it may be totally
discharged. Disconnect the battery immediately
and reconnect or replace as appropriate.
Push the battery into place at the bottom of the
5.
housing and re-fit the front cover.
On the TS410 you MUST connect the earth
bonding cable from the front cover to the
spade connection point.
Fit the battery link in the external sounder and
6.
replace cover.
The system is now ready for programming.
7.
6 of 10
1234
5678
Alarm
Access
Alarm
Alarm
Alarm
30 Seconds
30 Seconds
20 Minutes
SAB (-ve applied)
004
Timed Set
User Reset
3
Away Set (Full)
Detector Reset
Zone 1 Omitted
Factory Default Settings
