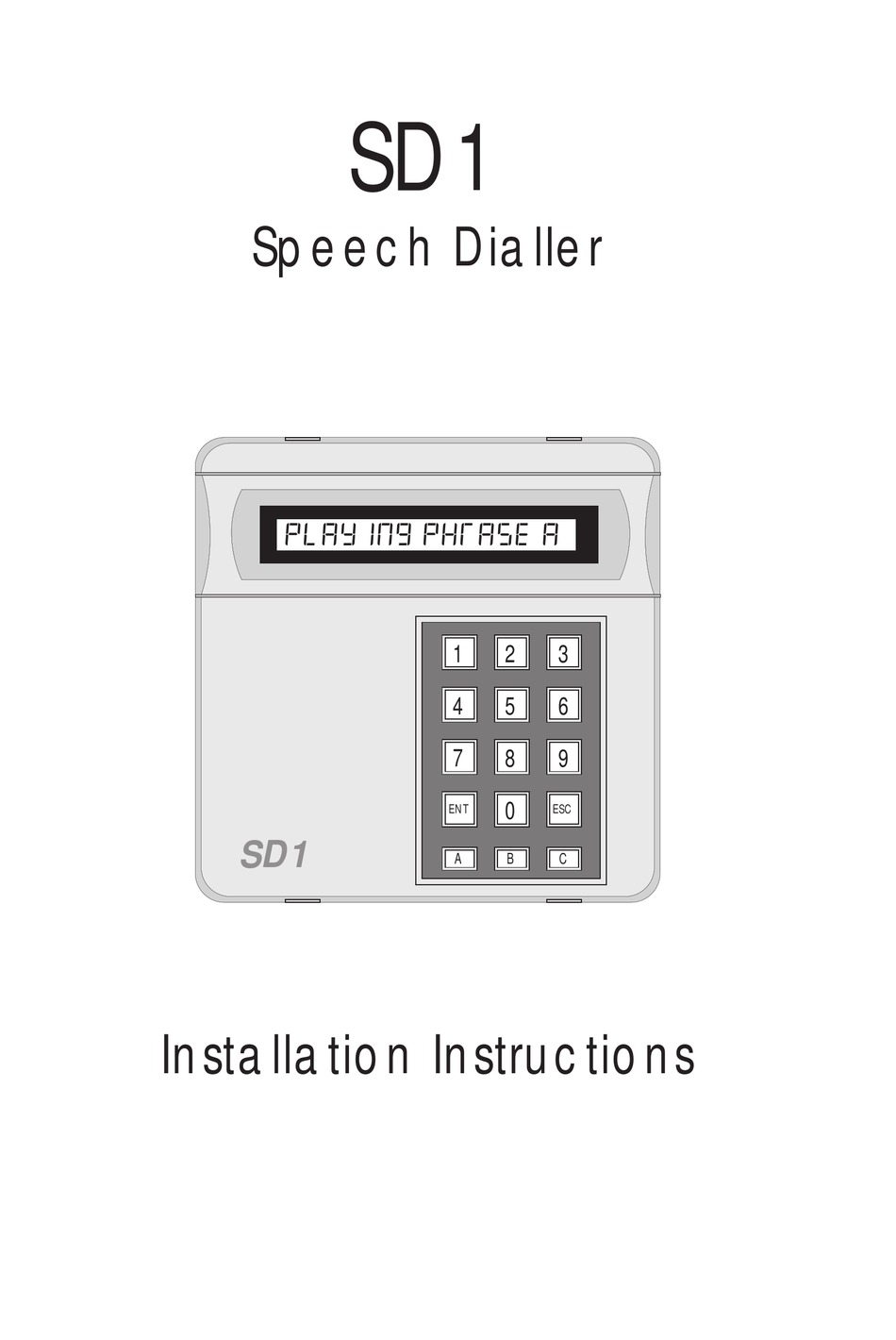

Page 1: Installation Instructions

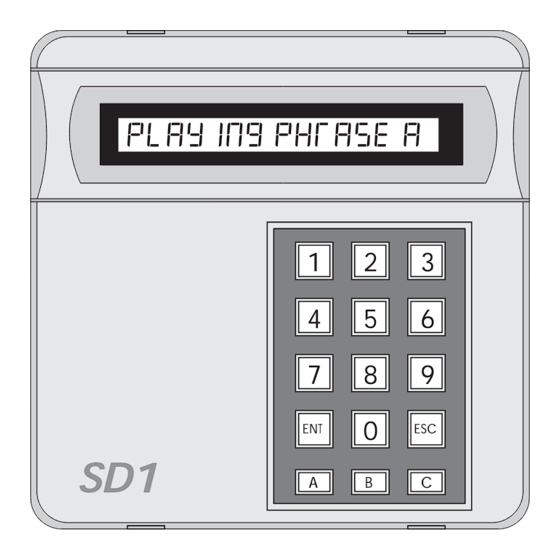

Speech Dialler PLAYING PHRASE A Installation Instructions... - Page 2 The SD1 accepts three inputs which in our example are; A - Fire, B - Personal Attack (PA) and C - Burglary. These correspond to the messages (A, B and C) that the SD1 sends out and should be recorded as such.
-
Page 3: Installation Requirements
2. Installation Requirements The SD1 has been designed to be connected to an intruder alarm control panel or similar. The control panel must have an auxiliary power output of between 11.5V and 14V, and the ability to provide a minimum of 100mA. -
Page 4: Box Tamper
Connect to a permanent 0V supply on the control panel. +12V: Connect to a permanent +12V supply on the control panel. The SD1 requires power at all times. If the power is removed, even momentarily all the telephone numbers and messages will be erased. TRIG POLARITY... -
Page 5: Control Panel Connections
* Control panel output requires programming. When using the bell output to trigger the SD1, you may find that the external sounder is partially triggered. If this is the case a 1K resistor will need to be connected between the... -
Page 6: Commissioning And Testing
Failure to re-fit the plastic cover will contravene mandatory European standards 8. Commissioning and Testing Clip the SD1 front cover onto the base taking care not to trap any cables. Switch the power back on to the control panel (battery and mains) and replace cover. - Page 7 Action Check the telephone number you are calling has been entered correctly. Cause The SD1 is not compatible with PABXs that require a pause or wait for secondary dial tone. Action Program the unit to pulse dial (see Operating Instructions). If this does not solve the problem the dialler must be connected to a direct telephone line.
- Page 8 130(L) x 130(H) x 30(D) mm REN value: BT approvals: S/1100/3/P/502920 Unit designed to BS6301: 1989, BS6305: 1982, BS6789 and BS60950 Menvier Security Ltd. Kenn Road, Clevedon, Bristol BS21 6LH Tel: 01275 870078; Fax: 01275 343453 MENVIER SECURITY 18067 Drg No. 33:1159:00 Iss 06. Doc 01 January, 1997...
