TS400 & TS410

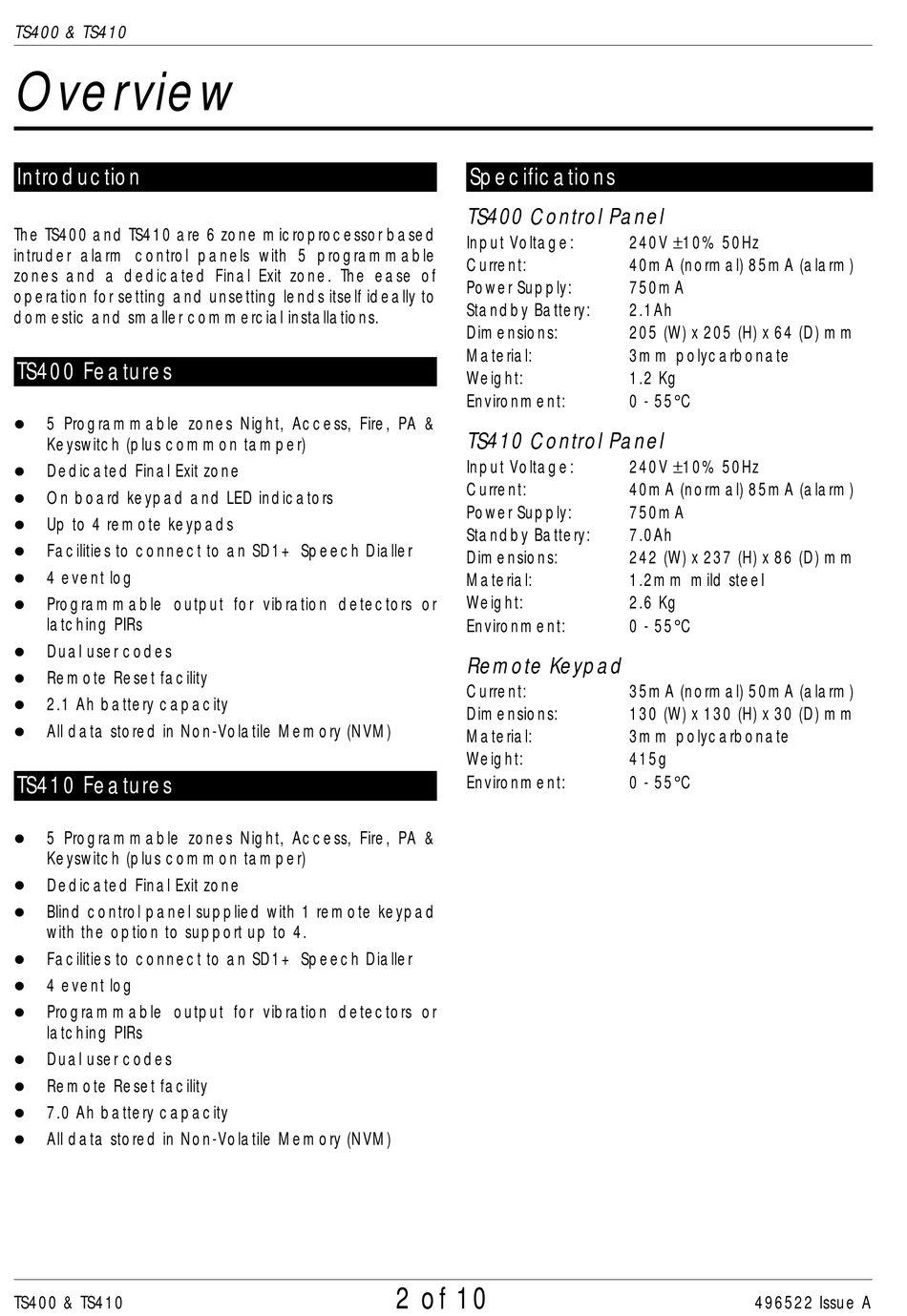

Overview
Introduction
The TS400 and TS410 are 6 zone microprocessor based
intruder alarm control panels with 5 programmable
zones and a dedicated Final Exit zone. The ease of
operation for setting and unsetting lends itself ideally to
domestic and smaller commercial installations.
TS400 Features
5 Programmable zones Night, Access, Fire, PA &
l
Keyswitch (plus common tamper)
Dedicated Final Exit zone
l
On board keypad and LED indicators
l
Up to 4 remote keypads
l
Facilities to connect to an SD1+ Speech Dialler
l
4 event log
l
Programmable output for vibration detectors or
l
latching PIRs
Dual user codes
l
Remote Reset facility
l
2.1 Ah battery capacity
l
All data stored in Non-Volatile Memory (NVM)
l
TS410 Features
5 Programmable zones Night, Access, Fire, PA &
l
Keyswitch (plus common tamper)
Dedicated Final Exit zone
l
Blind control panel supplied with 1 remote keypad
l
with the option to support up to 4.
Facilities to connect to an SD1+ Speech Dialler
l
4 event log
l
Programmable output for vibration detectors or
l
latching PIRs
Dual user codes
l
Remote Reset facility
l
7.0 Ah battery capacity
l
All data stored in Non-Volatile Memory (NVM)
l
TS400 & TS410

Specifications

TS400 Control Panel
Input Voltage:
Current:
Power Supply:
Standby Battery:
Dimensions:
Material:
Weight:
Environment:
TS410 Control Panel
Input Voltage:
Current:
Power Supply:
Standby Battery:
Dimensions:
Material:
Weight:
Environment:
Remote Keypad
Current:
Dimensions:
Material:
Weight:
Environment:
2 of 10
240V ±10% 50Hz
40mA (normal) 85mA (alarm)
750mA
2.1Ah
205 (W) x 205 (H) x 64 (D) mm
3mm polycarbonate
1.2 Kg
0 - 55°C
240V ±10% 50Hz
40mA (normal) 85mA (alarm)
750mA
7.0Ah
242 (W) x 237 (H) x 86 (D) mm
1.2mm mild steel
2.6 Kg
0 - 55°C
35mA (normal) 50mA (alarm)
130 (W) x 130 (H) x 30 (D) mm
3mm polycarbonate
415g
0 - 55°C
496522 Issue A
