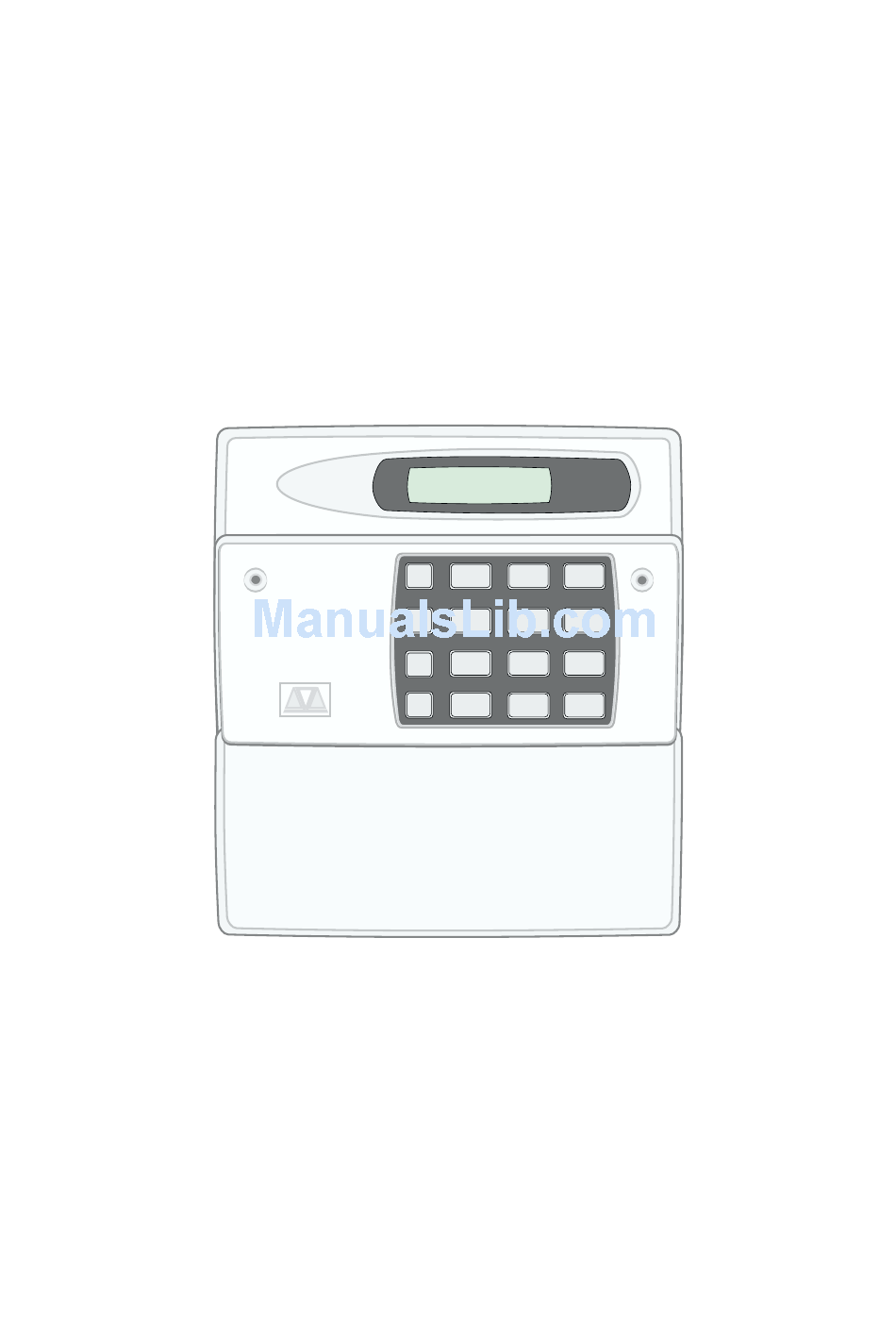

SD1+
Speech Dialler
Installation Instructions
SD1+
SD1+
A
1
2
3
5
B
4
6
7
8
9
C
D
0
ENT
ESC

Advertisement

Table of Contents
loading

Summary of Contents for Menvier Security SD1+

  • Page 1 SD1+ Speech Dialler SD1+ SD1+ Installation Instructions...
  • Page 2 1. Overview Tel No 1 Auxiliary Input Telephone Tel No 2 UNSET TAMPER FINAL EXIT SD1+ HOME AWAY Tel No 3 BT Line Speech Dialler Control Panel Tel No 4 Connections: The SD1+ is connected between the alarm control panel and the telephone line.
  • Page 3: Mounting Instructions

    2. Installation Requirements The SD1+ has been designed to be connected to an intruder alarm control panel or similar. The control panel must have an auxiliary power output of between 11.5V and 14V, and the ability to provide a minimum of 100mA. The unit is supplied with a 2 metre telephone lead which will plug directly into any standard BT socket and it is therefore recommended that the unit is sited as near to a BT telephone socket as possible.
  • Page 4 5. SD1+ Connections Before any connections are made to the SD1+ remove the power (battery and 240V mains) from the control panel. Connections are provided as follows: TRIG A: When triggered, the unit starts the dialling sequence and sends message A. TRIG B: When triggered, the unit starts the dialling sequence and sends message B.
  • Page 5 6. Control Panel Connections The table below shows the connection details to various control panels. Control Panel TRIG A TRIG B TRIG C Polarity Supply + Supply - Trigger Fire Alarm Type Menvier TS400/TS410 Zone 4 Zone 5 Aux + Aux - 0V app.
  • Page 6 7. BT. Connections Connect telephone line using one of the methods shown below: Replace the plastic cover over the telephone line connections. Method 1 - Using the lead supplied SD1+ White Standard BT telephone plug Method 2 - Hard wired connections BT Master Jack (NTE5) User accessible connections Cable type 1/0.5mm CW1308...
  • Page 7: Option Switch Settings

    9. Option Switch Settings The SD1+ may be fitted with a 4-way option bit switch, this allows the SD1+ to be configured for different countries and for either security or fire mode: Security mode Operation and features are as per operators/Installation manuals. Fire mode In this mode the SD1+ only has one telephone number (1), which also defaults to 999.
  • Page 8: Troubleshooting Guide

    12. Troubleshooting Guide Problem The unit will not dial out. Cause Number incorrectly dialled Action Check the telephone number you are calling has been entered correctly. Cause If the SD1+ is connected to a PABX system you may require a pause after dialling the first digit.
  • Page 9 SD1+ SD1+ SD1+...
  • Page 10: Table Of Contents

    Contents Getting Started: SD1+ Menu Options ..........1 Overview .
  • Page 11: Getting Started: Sd1+ Menu Options

    Getting Started: SD1+ Menu Options All of the SD1+ menu options are accessed by entering the user passcode (default 1234). These menu options allow all the necessary programming of the SD1+ and are selected by SD1+ pressing the relative "Hot Key" as shown in the table below. A summary of menu options and their relative "Hot Key"...
  • Page 12: Overview

    Overview Tel No 1 Auxiliary Input Telephone Tel No 2 UNSET TAMPER FINAL EXIT SD1+ HOME AWAY Tel No 3 BT Line Speech Dialler Control Panel Tel No 4 This product is manufactured to meet all European Economic Area Tele-communication networks requirements. Connections Passcode Type The SD1+ is connected between the alarm...
  • Page 13: Call Abort

    Call Abort Recording Messages The SD1+ can be programmed so that if it is The SD1+ has a built-in microphone so that accidentally triggered, the call can be phrases can be recorded directly into the unit. aborted. Once aborted, the dialler will stop The message that is sent by the SD1+ consists of dialling out immediately.
  • Page 14: Programming: Initialising The Sd1

    Programming: Initialising The SD1+ When you power up the SD1+ for the first time, a factory restart is PLEASE required. This involves shorting out the factory restart pins (JP2) whilst applying power to the unit (please refer to the installation RECORD instructions for details).
  • Page 15: Changing Your Passcode Type

    Changing Your Passcode Type The SD1+ requires a passcode to be entered to allow access to the SD1+ program menus. This passcode is normally 4 digits ( ), but can be changed to 6 digits ( ). The default user passcode is ???? 1234.
  • Page 16: Call Routing

    Call Routing Messages A, B, C or D can be programmed so that they only report to certain telephone numbers i.e. Message A might report to SD1+ telephone numbers 1, 3 & 4 but NOT to number 2 ( ???? READY Ensure that the SD1+ is initialised and the display is showing “...
  • Page 17: Viewing The Last Call Log

    Viewing The Last Call Log When a call is successfully acknowledged, the SD1+ stores the event in a “Last Call Log”. SD1+ The log may then be viewed as follows: ???? READY Ensure that the SD1+ is initialised and the display is showing “...
  • Page 18: Programming: Telephone Numbers

    Programming: Telephone Numbers The SD1+ stores up to four telephone numbers, with a maximum of 24 digits each. Permission from the person(s) being called must be obtained before storing their telephone number. The SD1+ must NOT be used to call the Police via the Emergency Services telephone numbers. The following example shows how to program telephone number 1 as 0181 234 5678.
  • Page 19: Forcing The Sd1+ To Tone / Pulse Dial

    Forcing The SD1+ to Tone / Pulse Dial Pulse Dialling: This is the older format and is sometimes referred to as Loop Disconnect/LD. Tone Dialling: This is the modern format and sometimes referred to as Multiple Frequency/MF. Any or all of the telephone numbers can be selected to override the automatic format selection and be forced into dialling the number in one of the above formats if required.
  • Page 20: Programming A Pause Into The Telephone Number

    Programming a Pause into the Telephone Number If the SD1+ is connected to an internal PABX telephone exchange, a prefix digit i.e. 9 is normally required before an outside line can be obtained. Some exchanges also require a pause after this digit before dialling the telephone number.
  • Page 21: Programming A Pager Number

    Programming a Pager Number When dialling a pager SD1+may have to wait before sending the message. To insert a pause enter “ ” after the pager number. When the call is answered, the unit can send the message as normal or precede it with a “star”...
  • Page 22: Recording Messages

    Recording Messages The SD1+ can record up to four phrases A, B, C, D and a common phrase 0. These phrases can be up to forty seconds in total. The five phrases are used to form four messages A, B, C and D. Phrase 0 is normally used to store the name and address of the premises, whereas phrases A, B, C or D are used to store the type of alarm condition.
  • Page 23: Deleting Phrases & Telephone Numbers

    Deleting Phrases & Telephone Numbers If new phrases need to be recorded or new telephone numbers need to be programmed into the unit, the old ones will have to be deleted, this option will allow you to perform either of these actions. SD1+ Ensure that the SD1+ is initialised and the display is showing “...
  • Page 24: Testing The Sd1+: Call Acknowledgement Procedure

    Testing the SD1+: Call Acknowledgement Procedure If the unit has been triggered or a test call has been sent, you must ensure that the recipient of the call is aware of the call acknowledgement procedure, so that they can successfully shut down the SD1+ and prevent it from dialling them again.
  • Page 25: Sending A Test Call

    Sending A Test Call It is possible to test that each message plays to each telephone number e.g. you may want to test that “Message A” plays to telephone number 1 or “Message B” to telephone number 3 etc. Before sending a test call, make sure the person being called is familiar with the acknowledgement procedure.
  • Page 26: General: Three Way Calling

    General: Three Way Calling Three Way Calling is a feature that is available from BT Network Services. For the SD1+ to take advantage of this facility, the telephone line must have this service enabled (contact BT for details). When the SD1+ is triggered, the unit checks for "dial tone", if no dial tone is detected i.e. another telephone is "Off Hook"...
  • Page 27: Trouble-Shooting Guide

    Trouble-Shooting Guide Problem Problem The recipient has acknowledged the call The unit is triggered from the Control Panel but the display shows " " all the time. but the SD1+ continues to dial the second, third or forth number. Cause Cause The SD1+ doesn't display anything except for "...
  • Page 28: Quick Reference: Dialler Options

    Quick Reference: Dialler Options. SD1+ ???? READY Clear By Options Numbers & Phrases Message's or test call's ENT 1-4 CLEARBY- 1-4 / ENT OR 0-D TO SEND Clear By Options Program Numbers Record Messages Delete Options Send test call's Replay Message's TEL NO 1 RECORD ERASE-...
