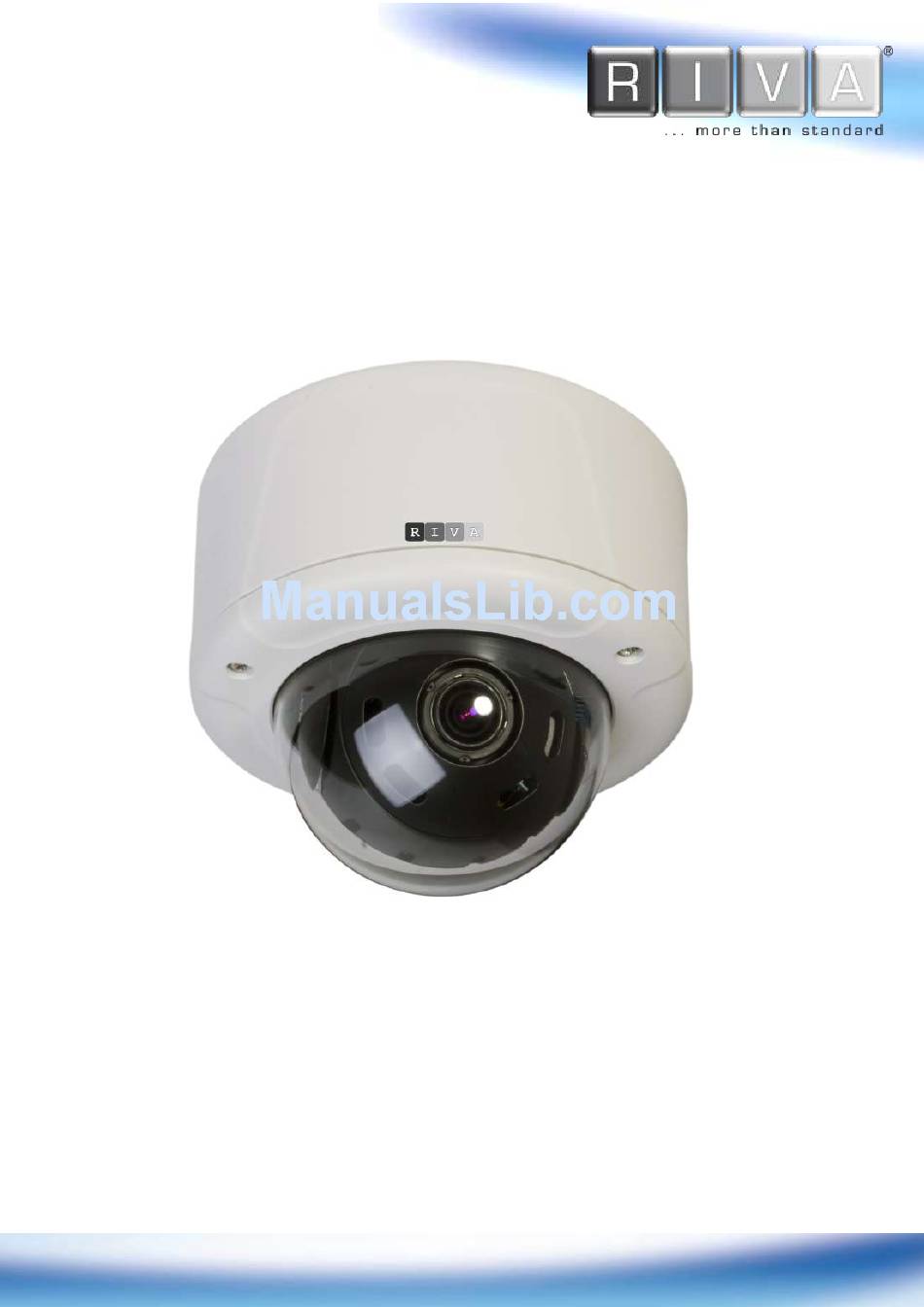

Page 1: Quick Installation Guide
Quick Installation Guide This manual provides instructions for quick installation and basic configuration of your IP device. www.rivatech.de... - Page 2 Step1. Connect cables to IP device Connect required cables to the device including the power cable and LAN cable. To see the correct positions of all connectors, refer to the following image below. Output Configuration Switches PAL/NTSC Button * Video out is used only for installation and works for 3 minutes when...
- Page 3 Step2. Install IP device 1) Place the installation template (paper) that is included in the package on the desired installation surface. 2) Drill three holes in correct positions based on the template paper, and insert anchor blocks into the holes. 3) When placing the camera body to the installation surface,...
- Page 4 Step3. Set the lens position 1) Remove the dome cover to control the positioning buttons, or use web site setup (Setup > Video & Audio >Repositioning) to adjust the camera. 2) Positioning buttons are located on the main body. To pan, use ‘+’ and ‘–‘pan buttons. To tilt, use ‘+’...
-
Page 5: Step4. Set Up Network Environment
Lifespan of PAN and TILT are approximately good up to 5,000 counts each. Operating temperature ranges for PAN and TILT are 10˚C ~ 40 ˚C (50˚F ~ Caution 104˚F) Step4. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 6: Custom Ip Environment
Custom IP Environment IPAdminTool and the manual are provided on homepage. www.rivatech.de IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area;... - Page 7 Give new unique IP address in last two sets and mirror other PC environment Info information in other boxes 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
- Page 8 When the device’s web address is accessed, the browser asks to install the ActiveX. Click Allow. 2. Setup.exe installation link or pop-up window appears, depends on Microsoft® Internet Explorer version. Proceed with rest of setup installation. 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame.
-
Page 9: Resetting To The Factory Default Settings
User ID: root Password: pass More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys Online Help”, which is available on homepage. www.rivatech.de www.rivatech.de... -
Page 10: Hexadecimal-Decimal Conversion Table
Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. www.rivatech.de... - Page 11 www.rivatech.de...
