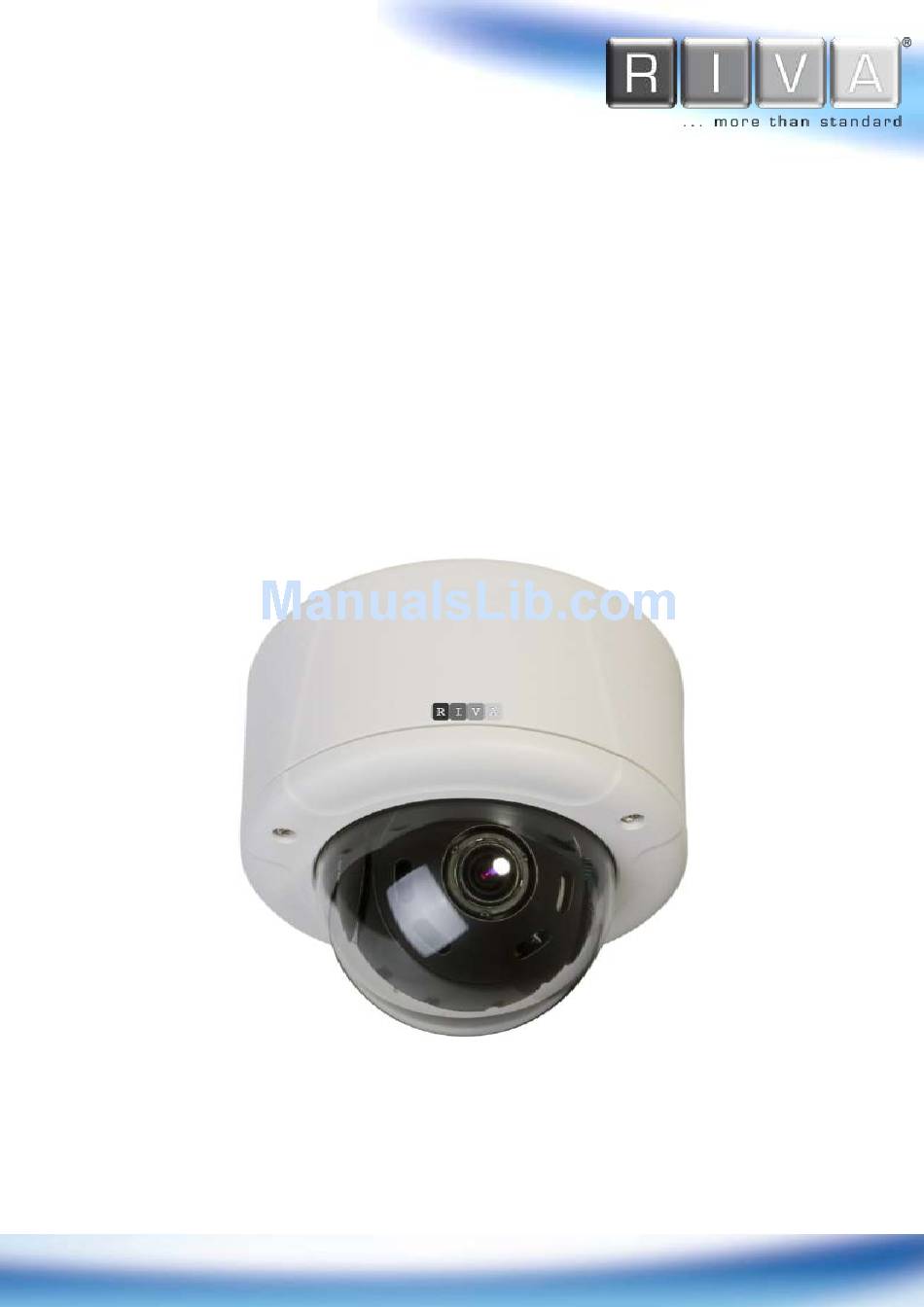

Page 1: Installation Guide
RC3702HD-5314 Installation Guide www.rivatech.de... -
Page 2: Information To User
RC Series RC3702 Installation Guide INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PARTS. This symbol is intended to alert the user the presence of un- insulated “dangerous voltage”... -
Page 3: Table Of Contents
RC Series RC3702 Installation Guide Table of Contents 1. FEATURES ......................4 2. PACKAGE CONTENTS ..................5 3. PART NAMES ....................6 4. INSTALLATION ....................8 4.1. Installation Template ..............9 4.2. Setting the Lens Position .............. 10 4.3. Setting the Image Attribute ............11 5. -
Page 4: Features

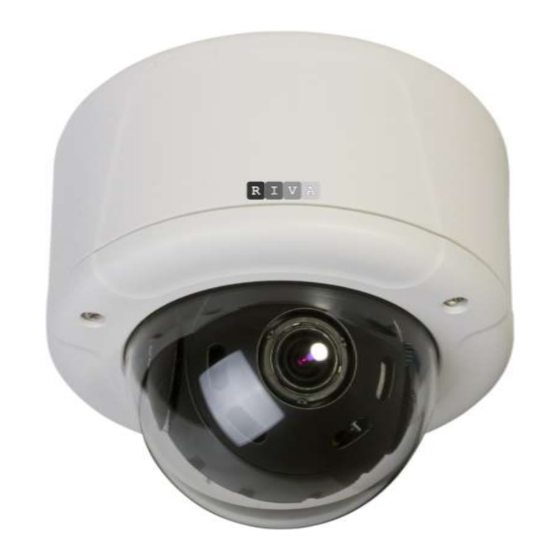

RC Series RC3702 Installation Guide 1. FEATURES Camera Full HD outdoor fixed dome IP camera (Vandal proof) High quality compression in real time streaming 1/2.7” High Quality CMOS Image Sensor True Day / Night (ICR) Remote Zoom/Focus Control(One Click AF) Streaming ... -
Page 5: Package Contents
RC Series RC3702 Installation Guide 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera DC power adaptor DC jack cable 8-pin and 2-pin terminal block S-Video jack to 3.5mm plug Screws and anchors Hex wrench driver Side plug Side cover RJ45 coupler... -
Page 6: Part Names
RC Series RC3702 Installation Guide 3. PART NAMES Top View ⑦ ⑧ ⑥ ⑤ ① ② ④ ③ * Models and their appearance are subject to change without any prior notice. 1. Rest button The reset button can be used for restarting the device or resetting it to Factory Default. - Page 7 RC Series RC3702 Installation Guide 4. PAL/NTSC button No video Pressing the button cycles through PAL, NTSC, and no video output mode: output -> PAL->NTSC 5. Video stereo jack connector Connector for 3.5mm video jack plug. 6. MicroSD SD card supports up to 32GB 7.
-
Page 8: Installation
RC Series RC3702 Installation Guide 4. INSTALLATION 1) Place the installation template (paper) that is included in the package on the desired installation surface. 2) Drill three holes in correct positions based on the template paper, and insert anchor blocks into the holes. 3) When placing the camera body to the installation surface,... -
Page 9: Installation Template
RC Series RC3702 Installation Guide 4.1. Installation Template Installation template 37 V1.0 Installation template image’s size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the Caution package separately. www.rivatech.de... -
Page 10: Setting The Lens Position
RC Series RC3702 Installation Guide 4.2. Setting the Lens Position 1) Remove the dome cover to control the positioning buttons, or use web site setup (Setup > Video & Audio >Repositioning) to adjust the camera. 2) Refer to 3. Part Names for the button locations; to pan, use ‘+’ and ‘–‘pan buttons. To tilt, use ‘+’... -
Page 11: Setting The Image Attribute
RC Series RC3702 Installation Guide Lifespan of PAN and TILT are approximately good up to 5,000 counts each. Caution 4.3. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The camera image’s brightness, contrast, saturation and sharpness are adjustable through settings. -
Page 12: Connections
RC Series RC3702 Installation Guide Reset 5. CONNECTIONS N / A N / A N / A N / A N / A N / A N / A N / A VIDEO AUDIO VIDEO AUDIO DC12V DC12V ETHERNET ETHERNET MICRO SD MICRO SD ... - Page 13 RC Series RC3702 Installation Guide 2. Sensor (DI) connection The camera provides 1 channel D/I. It can be connected to either a voltage type sensor or a relay type sensor as the following figures. Settings can be done through the camera’s webpage Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Input voltage threshold: 1.5V Do not exceed the maximum input voltage or relay rate.
- Page 14 RC Series RC3702 Installation Guide Internal Device Relay Type Must connect GND port which is located end of the DO terminal block side. Caution 4. LAN connector This is a 10/100 Base-T Ethernet cable. Use RJ45 coupler to extend the cable. 5.
-
Page 15: Configuration
RC Series RC3702 Installation Guide 6. CONFIGURATION 6.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 16: Custom Ip Environment
RC Series RC3702 Installation Guide 3. Web streaming and device configurations are supported through ActiveX program. When the ActiveX installation window appears, authorize and install the ActiveX. 6.1.2. Custom IP Environment IPAdminTool and the manual can download from homepage. www.rivatech.de IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 17: View Video On Web Page
RC Series RC3702 Installation Guide Give new unique IP address in last two sets PC environment info 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device. - Page 18 RC Series RC3702 Installation Guide 1. When the browser asks to install the AxUMF software, click Install to proceed. 2. When Setup installation pop-up window appears, click install to proceed with rest of installations. Depends on system OS and Internet Explorer version, Installation experience may differ from one another.
-
Page 19: View Video Using Ipadmin Tool
RC Series RC3702 Installation Guide 6.2.1. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool can download from homepage. www.rivatech.de 1. From the IPAdminTool’s product list, select the device by highlighting it. 2. -
Page 20: Reset
192.168.0.1 User ID: root Password: pass More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys Online Help”, which is available homepage. www.rivatech.de www.rivatech.de... -
Page 21: Appendix (A): Specifications
RC Series RC3702 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.7” 1080p CMOS Effective 1920x1080 CMOS Pixels Scanning Progressive scanning system Resolution 1920 x 1080 ELECTRIC Min. Color: 0.5 lux, F1.2 Illumination BW: 0.001 Lux (B/W, Sens-up 32X) AGC Control Auto Focal Length... -
Page 22: Electrical Characteristics
RC Series RC3702 Installation Guide DDNS, SSL v2/v3, IEEE 802.1X, SNMP v2/v3 Supported (MicroSD) SD Slot ※ Micro SD Card not included (Recommend Class 4 and higher for HD recordings) * When VCA is activated, frame rate is limited to max 15fps@1080p. Limitation is based on V.1.4.0 firmware release and could be changed without notice. -
Page 23: Appendix (B): Power Over Ethernet
RC Series RC3702 Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The IEEE 802.3af-2003 standard allows up to 15.4 W power to device. -
Page 24: Power Classification
RC Series RC3702 Installation Guide Power classification The PoE Power Class supported by the IP device is Class 0. Class Usage Minimum Power Levels Maximum Power Levels Output at the PSE at the Powered Device Default 15.4W 0.44 to 12.95W Unlike the other way, disconnecting PSE or PoE doesn’t reboot the device as long as a power adaptor is connected. -
Page 25: Appendix (C): Dimensions
RC Series RC3702 Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) www.rivatech.de... -
Page 26: Appendix (D): Hexadecimal-Decimal Conversion Table
RC Series RC3702 Installation Guide APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. 25 37 6F 111 94 148 B9 185 DE 222 26 38 70 112 95 149 BA 186... -
Page 27: Revision History
RC Series RC3702 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.00 09/25/2012 First release version 01A.01 10/05/2012 Operation Temp. confirmed 01A.02 10/12/2012 Pan/Tilt range and speed spec and description added 01A.03 10/29/2012 Setup Procedure description updated www.rivatech.de...
