ERS-A50M

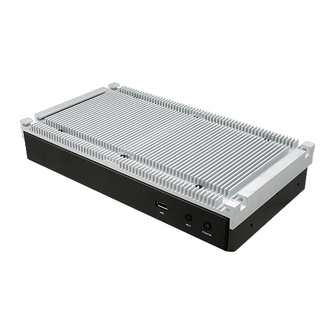

Fanless AMD® eOntario T56N Rugged Embedded System
with AMD A50M Chipset
Quick Reference Guide
nd
Ed – 9 August 2013
2
Part No. E20173518A1R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERS-A50M and is the answer not in the manual?

Questions and answers

Summary of Contents for Avalue Technology ERS-A50M

  • Page 1 ERS-A50M Fanless AMD® eOntario T56N Rugged Embedded System with AMD A50M Chipset Quick Reference Guide Ed – 9 August 2013 Part No. E20173518A1R...
  • Page 2 ERS A50M FCC Statement THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS "A"...
  • Page 3: Table Of Contents

    Front & Top View ......................... 7 1.4.2 Rear View ............................. 7 Hardware Configuration ..................... 8 Jumper and Connector Setting, Driver and BIOS Installing ..........8 ERS-A50M connector list ..................9 ERS-A50M connector mapping ................10 2.2.1 External Serial Port 1 connector (COM1) .................. 10 2.2.2 External Serial Port 2 connector (COM2) ..................
  • Page 4: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x ERS-A50M Fanless AMD® eOntario T56N Rugged Embedded  System with AMD A50M Chipset 1 x Quick Reference Guide ...
  • Page 5: System Specifications

    Quick Reference Guide 1.3 System Specifications Specifications System AMD® eOntario T56N 1.6GHz CPU BIOS AMI 32 Mbit SPI BIOS System Chipset AMD A50M Chipset I/O Chip Winbond W83627DHG-P System Memory One 204-pin DDR3 SODIMM up to 4GB DDR3-1066 SDRAM 1 x CompactFlash Type I/II Socket Hard Disk 1 x 2.5”...
  • Page 6 ERS A50M Operating Temp. -10 ~ 50°C (w/CF),ambient w/ air flow Storage Temp. -40 ~ 75°C (-4~167°F) Operating Humidity 0%~90% relative humidity, non-condensing Vibration Protection With CF/SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 1hr/axis Shock Protection With CF/SSD: 50G, IEC 60068-2-27, Half Sine,11ms Size (L x W) 271 * 150 * 55 mm Weight...
  • Page 7: System Overview

    Quick Reference Guide 1.4 System Overview 1.4.1 Front & Top View 1.4.2 Rear View ERS A50M Quick Reference Guide...
  • Page 8: Hardware Configuration

    ERS A50M 2. Hardware Configuration Jumper and Connector Setting, Driver and BIOS Installing For advanced information, please refer to: 1- ECM-A50M Quick Installation Guide or User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 8 ERS A50M Quick Reference Guide...
  • Page 9: Ers-A50M Connector List

    Quick Reference Guide 2.1 ERS-A50M connector list Connectors Label Function Note COM1~2 Serial port connector1~2 DC-IN Lockable DC Jack HDD Indicator Power Indicator LAN1 RJ-45 Ethernet 1 LAN2 RJ-45 Ethernet 2 LINE IN Line-in audio jack LINE OUT Line-out audio jack...
  • Page 10: Ers-A50M Connector Mapping

    ERS A50M 2.2 ERS-A50M connector mapping 2.2.1 External Serial Port 1 connector (COM1) Signal Signal DCD#0 DSR#0 RXD0 RST#0 TXD0 CTS#0 DTR#0 RI#0 2.2.2 External Serial Port 2 connector (COM2) Signal Signal DCD#1 DSR#1 RXD1 RST#1 TXD1 CTS#1 DTR#1 RI#1...
  • Page 11: Installing Hard Disk & Memory

    Quick Reference Guide 2.3 Installing Hard Disk & Memory Step 1. Unfasten 3 screws from bottom and rear side. Step 2. Remove the chassis cover. Step 3. Insert the drive into position, and secure with 4 screws. Step 4. Insert DDR3 SODIMM into memory socket. Step 5.
  • Page 12: Installing Mounting Bracket (Optional)

    ERS A50M 2.4 Installing Mounting Bracket (Optional) Step 1. Fasten 6 screws on both sides of ERS Rugged Embedded System. 12 ERS A50M Quick Reference Guide...
