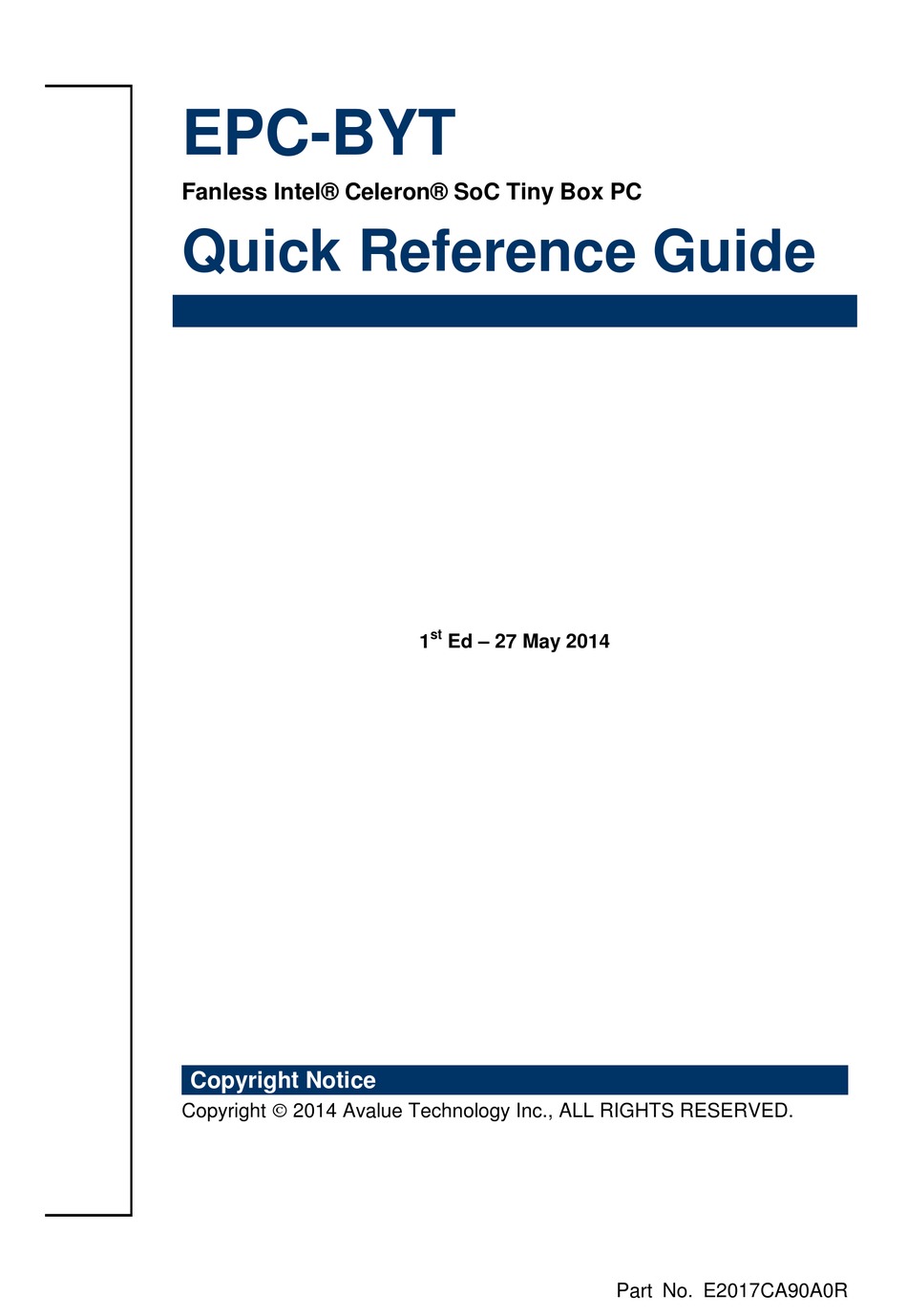

EPC-BYT
Fanless Intel® Celeron® SoC Tiny Box PC
Quick Reference Guide
st
Ed – 27 May 2014
1
Copyright Notice
Copyright  2014 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017CA90A0R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPC-BYT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology EPC-BYT

Summary of Contents for Avalue Technology EPC-BYT

  • Page 1 EPC-BYT Fanless Intel® Celeron® SoC Tiny Box PC Quick Reference Guide Ed – 27 May 2014 Copyright Notice Copyright  2014 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017CA90A0R...
  • Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 EPC-BYT Quick Reference Guide...

  • Page 3: Table Of Contents

    VGA connector (VGA) ........................ 13 AUX-032 User’s Guide ..................14 2.2.1 Jumper and Connector Layout....................14 2.2.2 Jumper and Connector List ......................14 2.2.3 Setting Jumper and Connector ....................15 Installing Hard Disk & Memory (EPC-BYT) ............16 EPC-BYT Quick Reference Guide...

  • Page 4: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x EPC-BYT Fanless Intel® Celeron® SoC Tiny Box PC  1 x DVD-ROM contains the followings: ...

  • Page 5: System Specifications

    HDMI Mode: 1920 x 1200 @ 60Hz  Audio HD Codec Realtek ALC892 Supports 5.1-CH Audio  Audio Interface Mic-in, Line-in, Line-out  Ethernet 2 x Intel® I211AT Gigabit Ethernet Controller Chipset  10/100/1000 Base-Tx Gigabit Ethernet Compatible Ethernet Interface  Mechanical EPC-BYT Quick Reference Guide...
  • Page 6 With CF/SSD: 10G, IEC 60068-2-27, Half Sine,11ms  Certification CE, FCC Class A  Dimension (W x H x 178mm x 142mm x 50mm  Weight 1.2kgs  Color Black  Fanless  Reliability IP Rating IP 30  6 EPC-BYT Quick Reference Guide...

  • Page 7: System Overview

    Quick Reference Guide 1.4 System Overview 1.4.1 Front View Connectors Label Function Note Power on button POWER System power indicator USB 2.0 connector Serial port 3/4 connector COM3/4 EPC-BYT Quick Reference Guide...

  • Page 8: Rear View

    USB 2.0 connector x 3 USB3.0 USB 3.0 connector VGA connector DB-15 female connector HDMI connector HDMI DC-IN DC Power-in connector Mic-in audio jack MIC IN LINE IN Line-in audio jack Line-out audio jack LINE OUT 8 EPC-BYT Quick Reference Guide...

  • Page 9: System Dimensions

    Quick Reference Guide 1.5 System Dimensions 1.5.1 Front & Top View (Unit: mm) EPC-BYT Quick Reference Guide...

  • Page 10: Hardware Configuration

    EPC-BYT 2. Hardware Configuration For advanced information, please refer to: 1- ECM-BYT Quick Installation Guide or User’s Manual 2- AUX-032 included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 EPC-BYT Quick Reference Guide...

  • Page 11: Epc-Byt Connector Mapping

    External Serial Port 1 connector (COM1) Signal PIN PIN Signal NDCDA#_485TXN NRXDA_485TXP NTXDA_485RXP NDTRA#_485RXN NDSRA# RTSA# NCTSA# NRIA# 2.1.2 External Serial Port 2 connector (COM2) Signal Signal NDCDB# NRXDB NTXDB NDTRB# NDSRB# NRTSB# NCTSB# NRIB# EPC-BYT Quick Reference Guide 11...

  • Page 12: External Serial Port 3 Connector (Com3)

    EPC-BYT 2.1.3 External Serial Port 3 connector (COM3) Signal Signal NDCDC# NRXDC NTXDC NDTRC# NDSRC# NRTSC# NCTSC# NRIC# 2.1.4 External Serial Port 4 connector (COM4) Signal Signal NDCDD# NRXDD NTXDD NDTRD# NDSRD# NRTSD# NCTSD# NRID# 12 EPC-BYT Quick Reference Guide...

  • Page 13: Vga Connector (Vga)

    Quick Reference Guide 2.1.5 VGA connector (VGA) PIN Signal PIN Signal PIN Signal DATA 13 HSYNC VSYNC EPC-BYT Quick Reference Guide 13...

  • Page 14: Aux-032 User's Guide

    2.54mm USB connector 5 x 2 header, pitch 2.54mm 5 x 2 header, pitch 2.0mm 2.0mm USB connector 5 x 2 header, pitch 2.0mm 2.0mm USB connector TV / Audio connector 8 x 2 header, pitch 2.54mm 14 EPC-BYT Quick Reference Guide...

  • Page 15: Setting Jumper And Connector

    Line out L Line out R SPK L SPK R Line in L Line in R TVGND TVGND COMP 2.0mm USB Connector (JP4) 2.0mm USB Connector (JP5) Signal PIN PIN Signal Signal PIN PIN Signal EPC-BYT Quick Reference Guide 15...

  • Page 16: Installing Hard Disk & Memory (Epc-Byt)

    EPC-BYT 2.3 Installing Hard Disk & Memory (EPC-BYT) Step1. Remove the screw from the bottom before removing back cover. Step2. Insert CF card into CF slot. 16 EPC-BYT Quick Reference Guide...
  • Page 17 Quick Reference Guide Step3. For HDD installation, please remove 4 screws to detach top cover, HDD enclosure from board & system assembly. Step4. Fix HDD using the 4 screws in the Accessory Kit. EPC-BYT Quick Reference Guide 17...
  • Page 18 EPC-BYT Step5.1 Properly install the memory module and press until properly seated. Step5.2 Re-assemble your system back through previous steps to complete the installation. 18 EPC-BYT Quick Reference Guide...
