Avalue Technology EPC-CDV Quick Reference Manual

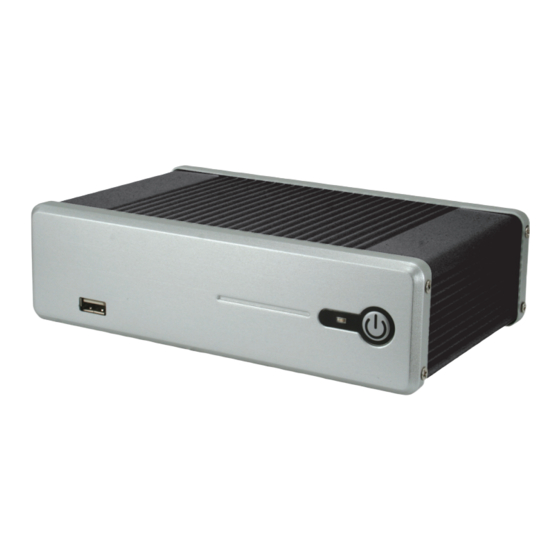

Fanless intel atom d2550 tiny box pc with intel nm10 express chipset
Hide thumbs Also See for EPC-CDV:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
EPC-CDV
Fanless Intel® Atom™ D2550 Tiny Box PC
with Intel® NM10 Express Chipset
Quick Reference Guide
1st Ed – 27 July 2012
Copyright Notice
Copyright  2012 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017CCDVA0R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPC-CDV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology EPC-CDV

Summary of Contents for Avalue Technology EPC-CDV

  • Page 1 All manuals and user guides at all-guides.com EPC-CDV Fanless Intel® Atom™ D2550 Tiny Box PC with Intel® NM10 Express Chipset Quick Reference Guide 1st Ed – 27 July 2012 Copyright Notice Copyright  2012 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017CCDVA0R...

  • Page 2: Table Of Contents

    2.2.2 External Serial Port 2 connector (COM2/DVI) ................11 2.2.3 VGA connector (VGA) ........................ 12 Installing Aluminum Stand (EPC-CDV) ..............13 Installing Hard Disk & Memory (EPC-CDV) ............14 Installing Mounting Bracket (Optional) ..............16 2 EPC-CDV Quick Reference Guide...

  • Page 3: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x EPC-CDV (with ECM-CDV)  1 x Quick Reference Guide ...

  • Page 4: System Specifications

    CRT Mode: 1920 x 1200 @ 60Hz Audio AC97 Codec Realtek ALC892 Supports 5.1-CH Audio Audio Interface Mic-in, Line-in, Line-out Ethernet LAN Chip 2 x Intel® 82574L Gigabit Ethernet Ethernet Interface 10/ 100/ 1000 Base-Tx Gigabit Ethernet Compatible 4 EPC-CDV Quick Reference Guide...
  • Page 5 -40 ~ 75°C (-40 ~ 167°F) Relative Humidity 0% ~ 90% Relative Humidity, Non-condensing Dimension (W x D x H) 7” x 4.4” x 2.0” (178mm x 112mm x 50mm) Weight 2.7lbs (1.2Kgs) Mounting VESA Compliance EPC-CDV Quick Reference Guide...

  • Page 6: System Overview

    All manuals and user guides at all-guides.com EPC-CDV 1.4 System Overview 1.4.1 Front & Rear View Front View Rear View 6 EPC-CDV Quick Reference Guide...

  • Page 7: System Dimensions

    All manuals and user guides at all-guides.com Quick Reference Guide 1.5 System Dimensions 1.5.1 Top/ Front & Side (with rubber foot) (Unit: mm) EPC-CDV Quick Reference Guide...

  • Page 8: Top/ Front & Side (With Wallmount)

    All manuals and user guides at all-guides.com EPC-CDV 1.5.2 Top/ Front & Side (with wallmount) (Unit: mm) 8 EPC-CDV Quick Reference Guide...

  • Page 9: Hardware Configuration

    All manuals and user guides at all-guides.com Quick Reference Guide 2. Hardware Configuration Please refer to ECM- CDV Quick Installation Guide or User’s Manual for advanced information. Note: If you need more information, please visit our website: http://www.avalue.com.tw EPC-CDV Quick Reference Guide...

  • Page 10: Epc-Cdv Connector List

    RJ-45 Ethernet 2 LAN2 LINE IN Line-in audio jack LINE OUT Line-out audio jack MIC IN Mic-in audio jack HDD indicator USB1~5 USB 1~5 connector System power indicator VGA connector D-sub 15-pin, female HDMI HDMI connector 10 EPC-CDV Quick Reference Guide...

  • Page 11: Epc-Cdv Connector Mapping

    2.2 EPC-CDV connector mapping 2.2.1 External Serial Port 1 connector (COM1) Signal Signal DCDA# RxDA TxDA DTRA# DSRA# RTSA# CTSA# RIA# 2.2.2 External Serial Port 2 connector (COM2/DVI) Signal Signal DCDB# RxDB TxDB DTRB# DSRB# RTSB# CTSB# RIB# EPC-CDV Quick Reference Guide 11...

  • Page 12: Vga Connector (Vga)

    All manuals and user guides at all-guides.com EPC-CDV 2.2.3 VGA connector (VGA) PIN Signal PIN Signal PIN Signal DATA HSYNC VSYNC 12 EPC-CDV Quick Reference Guide...

  • Page 13: Installing Aluminum Stand (Epc-Cdv)

    All manuals and user guides at all-guides.com Quick Reference Guide 2.3 Installing Aluminum Stand (EPC-CDV) Step1. Attach stand to your system by means of two screws. Step2. Stand installation completed. EPC-CDV Quick Reference Guide 13...

  • Page 14: Installing Hard Disk & Memory (Epc-Cdv)

    All manuals and user guides at all-guides.com EPC-CDV 2.4 Installing Hard Disk & Memory (EPC-CDV) Step1. Remove the 4 screws from VGA and COM before removing back cover. Step2. Remove the 8 screws to disassemble your system front & back cover.
  • Page 15 Step3. 2 Fix HDD using the 3 screws in the Accessory Kit. Step4.1 Properly install the memory module and press until properly seated. Step4.2 Re-assemble your system back through previous steps to complete the installation. EPC-CDV Quick Reference Guide 15...

  • Page 16: Installing Mounting Bracket (Optional)

    All manuals and user guides at all-guides.com EPC-CDV 2.5 Installing Mounting Bracket (Optional) Step 1. Fasten 4 screws on both sides of EPC Embedded System. 16 EPC-CDV Quick Reference Guide...
