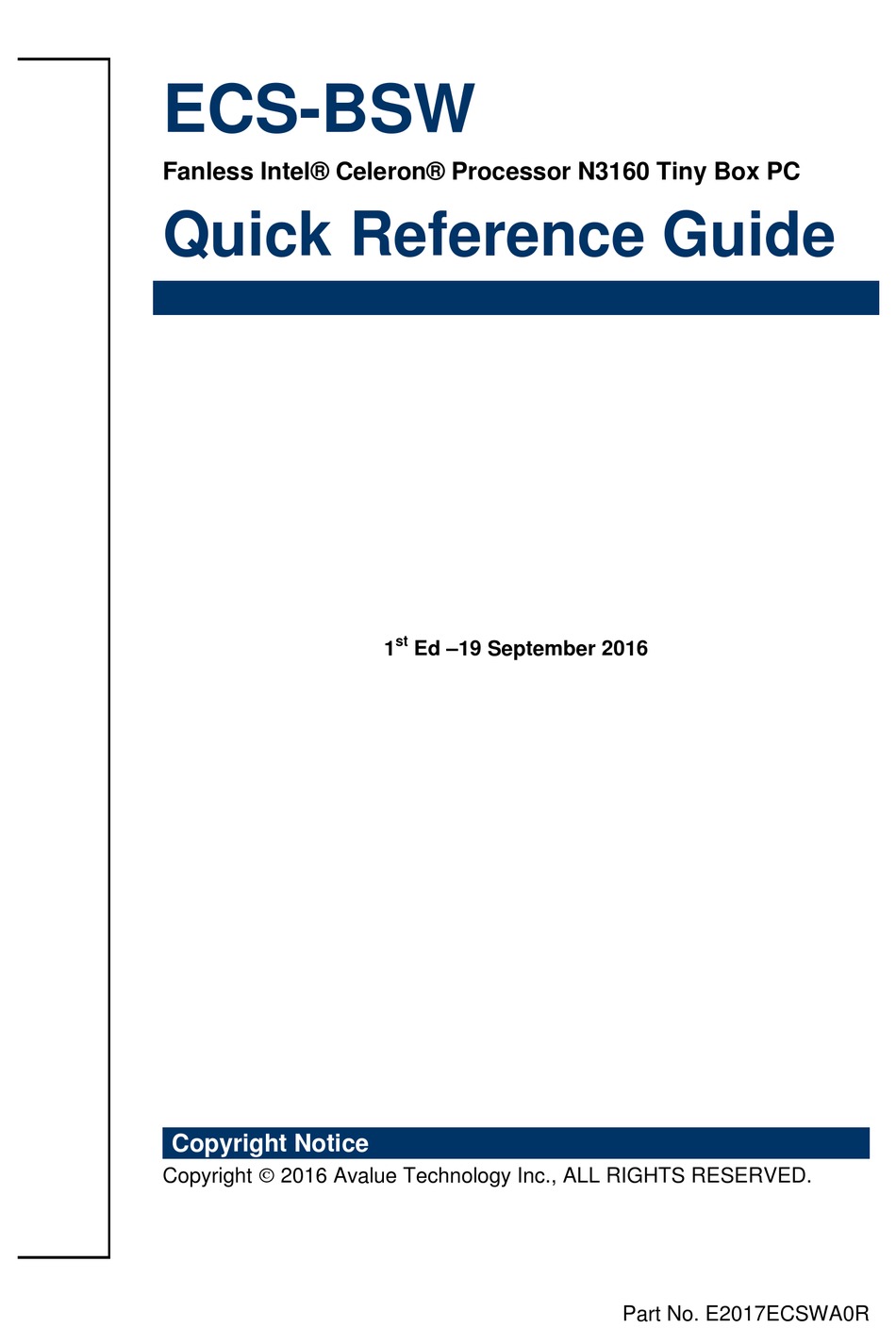

- Page 1 ECS-BSW Fanless Intel® Celeron® Processor N3160 Tiny Box PC Quick Reference Guide Ed –19 September 2016 Copyright Notice Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017ECSWA0R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
-
Page 3: Table Of Contents
Hardware Configuration ................... 10 ECS-BSW connector mapping ................11 2.1.1 Serial Port 1 connector (COM1)....................11 2.1.2 Serial Port 2/3/4/5 connector (COM2/3/4/5) ................11 Installing Din Rail Mounting (ECS-BSW) ............. 12 Installing Hard Disk (ECS-BSW) ................12 ECS-BSW Quick Reference Guide... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x ECS-BSW Fanless Intel® Celeron® Processor N3160 Tiny Box PC Other major components include the followings: ... -
Page 5: System Specifications
Color Black Fanless Reliability EMI Test CE/FCC Class B Safety UL/CB design compatible Sine Vibration test (Non-operation) Vibration Test Reference IEC60068-2-6 Testing procedures Test Fc : Vibration sinusoidal ECS-BSW Quick Reference Guide... - Page 6 5. Test Axis: Z axis 6. Operation mode Packing Drop Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed Test Ea : Drop Test Drop Test 1. One corner , three edges, six faces 2. ISTA 2A, IEC-60068-2-32 Test:Ed 6 ECS-BSW Quick Reference Guide...
- Page 7 0°C ~ 45°C (32°F ~ 113°F) (w/SSD, mSATA), ambient w/ air flow Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing Storage Temperature -20°C ~ 75°C (-22°F ~ 167°F) Mounting Din rail (optional) Note: Specifications are subject to change without notice. ECS-BSW Quick Reference Guide...
-
Page 8: System Overview
2 x USB2.0 connector 4 x USB3.0 connector COM1~5 Serial port 1~5 connector COM1-232/422/485 (Optional) DC IN DC power-in connector HDMI HDMI connector LINE OUT Line-out audio jack Mic-in audio jack MIC IN VGA connector 8 ECS-BSW Quick Reference Guide... -
Page 9: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) ECS-BSW Quick Reference Guide... -
Page 10: Hardware Configuration
ECS-BSW 2. Hardware Configuration For advanced information, please refer to: 1- ECM-BSW User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 ECS-BSW Quick Reference Guide... -
Page 11: Ecs-Bsw Connector Mapping
2.1 ECS-BSW connector mapping 2.1.1 Serial Port 1 connector (COM1) RS-232 Signal PIN PIN Signal DCD# DSR# RTS# CTS# DTR# RS-422/485(D-sub 9pin Male) Signal 2.1.2 Serial Port 2/3/4/5 connector (COM2/3/4/5) Signal Signal DCD# DSR# RTS# CTS# DTR# ECS-BSW Quick Reference Guide 11... -
Page 12: Installing Din Rail Mounting (Ecs-Bsw)
ECS-BSW 2.2 Installing Din Rail Mounting (ECS-BSW) Step1. Position brackets on both sides, matching the holes on the system. Step2. Insert and fasten screw on each side of the system to secure Mounting brackets. 2.3 Installing Hard Disk (ECS-BSW) Step1. Remove 4 screws from rear side before removing back cover. - Page 13 Quick Reference Guide Step2. Secure HDD by means of 4 screws. Step3. Re-assemble your system back through previous steps to complete the installation. ECS-BSW Quick Reference Guide 13...
