Avalue Technology EPC-BYT2 Quick Reference Manual

Intel celeron soc processor fanless box pc
Hide thumbs Also See for EPC-BYT2:
Table of Contents

Advertisement

Quick Links

Download this manual

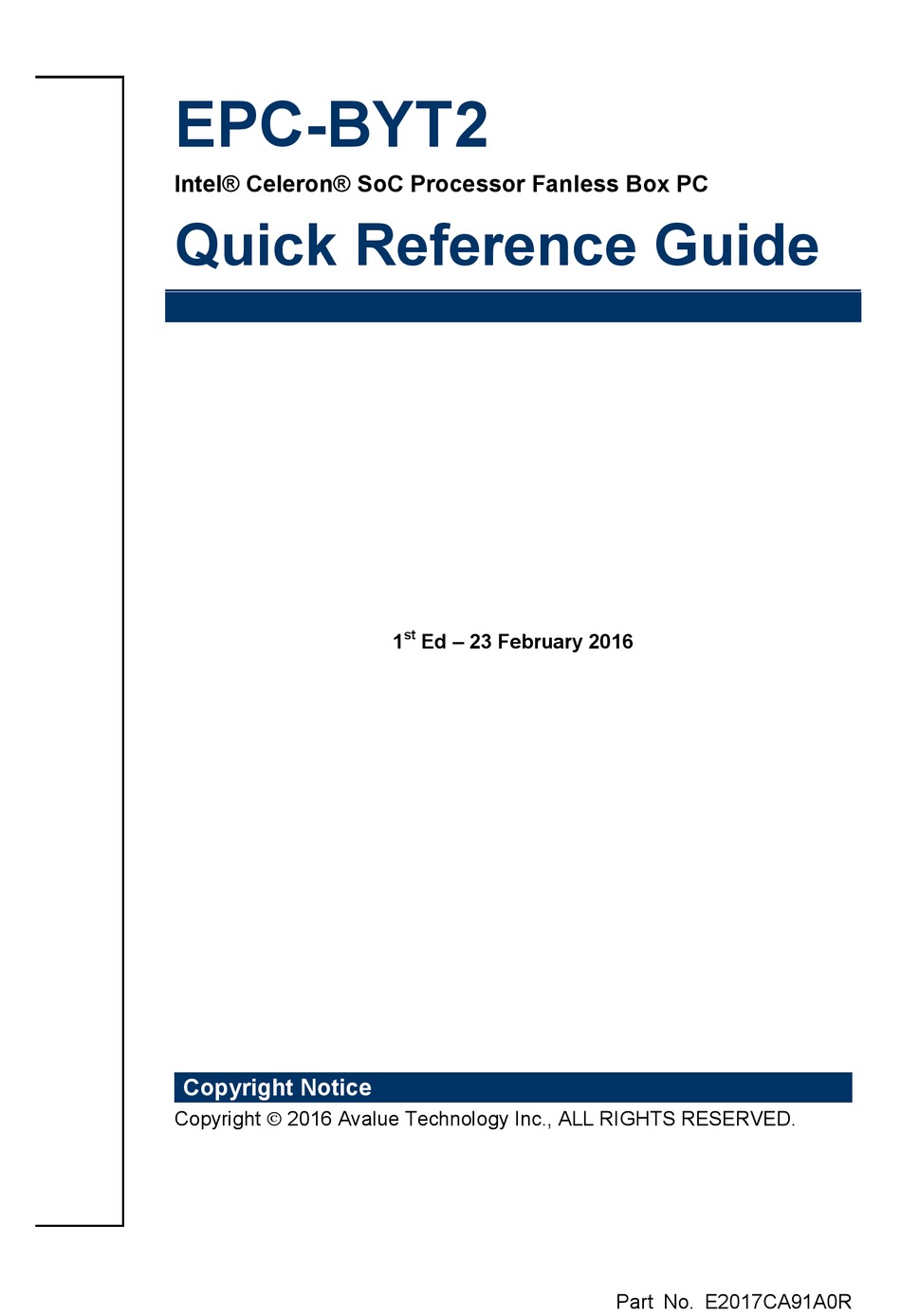

EPC-BYT2
Intel® Celeron® SoC Processor Fanless Box PC
Quick Reference Guide
st
1
Ed – 23 February 2016
Copyright Notice
Copyright  2016 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017CA91A0R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPC-BYT2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology EPC-BYT2

Summary of Contents for Avalue Technology EPC-BYT2

  • Page 1 EPC-BYT2 Intel® Celeron® SoC Processor Fanless Box PC Quick Reference Guide Ed – 23 February 2016 Copyright Notice Copyright  2016 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017CA91A0R...
  • Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 EPC-BYT2 Quick Reference Guide...

  • Page 3: Table Of Contents

    System Dimensions ....................9 1.5.1 Front & Top View ........................9 Hardware Configuration ................... 10 EPC-BYT2 connector mapping................11 2.1.1 Serial Port 1 connector (COM1) .....................11 2.1.2 VGA connector (VGA) ......................11 Installing Hard Disk & Memory (EPC-BYT2)............12 EPC-BYT2 Quick Reference Guide...

  • Page 4: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x EPC-BYT2 Intel® Celeron® SoC Processor Fanless Box PC  1 x DVD-ROM contains the followings: ...

  • Page 5: System Specifications

    2 x Realtek RTL8111E Gigabit Ethernet  Ethernet Interface 10/100/1000 Base-Tx Gigabit Ethernet Compatible  Mechanical Power Type +12 ~ 26Vdc (Lockable DC Jack)  Single Power ATX Support S0, S3, S4, S5  ACPI ACPI 3.0 Compliant  EPC-BYT2 Quick Reference Guide...
  • Page 6 With CF/SSD: 10G, IEC 60068-2-27, Half Sine,11ms  Certification CE, FCC Class A  Dimension (W x D x 175mm x 110mm x 40mm  Color Black  Fanless  Note: Specifications are subject to change without notice. 6 EPC-BYT2 Quick Reference Guide...

  • Page 7: System Overview

    Connectors Label Function Note D-sub 9-pin, male COM1 Serial port 1 connector HDD indicator LAN1/2 RJ-45 Ethernet 1/2 System power indicator USB2.0 USB 2.0 connector x 3 USB3.0 USB 3.0 connector VGA connector DB-15 female connector EPC-BYT2 Quick Reference Guide...
  • Page 8 EPC-BYT2 HDMI HDMI connector DC-IN DC Power-in connector 8 EPC-BYT2 Quick Reference Guide...

  • Page 9: System Dimensions

    Quick Reference Guide 1.5 System Dimensions 1.5.1 Front & Top View (Unit: mm) EPC-BYT2 Quick Reference Guide...

  • Page 10: Hardware Configuration

    EPC-BYT2 2. Hardware Configuration For advanced information, please refer to: 1- ECM-BYT2 User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 EPC-BYT2 Quick Reference Guide...

  • Page 11: Epc-Byt2 Connector Mapping

    2.1 EPC-BYT2 connector mapping 2.1.1 Serial Port 1 connector (COM1) Signal PIN PIN Signal NDCD# NDSR# NRXD NRTS# NTXD NCTS# NDTR# NRI# 2.1.2 VGA connector (VGA) PIN Signal PIN Signal PIN Signal DATA 13 HSYNC VSYNC EPC-BYT2 Quick Reference Guide 11...

  • Page 12: Installing Hard Disk & Memory (Epc-Byt2)

    EPC-BYT2 2.2 Installing Hard Disk & Memory (EPC-BYT2) Step1. Fix HDD using the 4 screws in the Accessory Kit. Step2. Properly install the memory module and press until properly seated. 12 EPC-BYT2 Quick Reference Guide...
