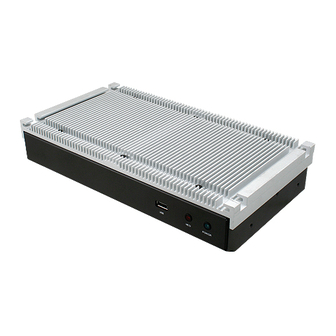

- Page 1 All manuals and user guides at all-guides.com ERS-A50M Fanless AMD® eOntario T56N Rugged Embedded System with AMD A50M Chipset Quick Reference Guide Ed – 9 August 2013 Part No. E20173518A1R...
- Page 2 All manuals and user guides at all-guides.com ERS A50M FCC Statement THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
-
Page 3: Table Of Contents
Front & Top View ......................... 7 1.4.2 Rear View ............................. 7 Hardware Configuration ..................... 8 Jumper and Connector Setting, Driver and BIOS Installing ..........8 ERS-A50M connector list ..................9 ERS-A50M connector mapping ................10 2.2.1 External Serial Port 1 connector (COM1) .................. 10 2.2.2 External Serial Port 2 connector (COM2) .................. -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x ERS-A50M Fanless AMD® eOntario T56N Rugged Embedded System with AMD A50M Chipset 1 x Quick Reference Guide ... -
Page 5: System Specifications
All manuals and user guides at all-guides.com Quick Reference Guide 1.3 System Specifications Specifications System AMD® eOntario T56N 1.6GHz CPU BIOS AMI 32 Mbit SPI BIOS System Chipset AMD A50M Chipset I/O Chip Winbond W83627DHG-P System Memory One 204-pin DDR3 SODIMM up to 4GB DDR3-1066 SDRAM 1 x CompactFlash Type I/II Socket Hard Disk 1 x 2.5”... - Page 6 All manuals and user guides at all-guides.com ERS A50M Operating Temp. -10 ~ 50°C (w/CF),ambient w/ air flow Storage Temp. -40 ~ 75°C (-4~167°F) Operating Humidity 0%~90% relative humidity, non-condensing Vibration Protection With CF/SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 1hr/axis Shock Protection With CF/SSD: 50G, IEC 60068-2-27, Half Sine,11ms Size (L x W)
-
Page 7: System Overview
All manuals and user guides at all-guides.com Quick Reference Guide 1.4 System Overview 1.4.1 Front & Top View 1.4.2 Rear View ERS A50M Quick Reference Guide... -
Page 8: Hardware Configuration
All manuals and user guides at all-guides.com ERS A50M 2. Hardware Configuration Jumper and Connector Setting, Driver and BIOS Installing For advanced information, please refer to: 1- ECM-A50M Quick Installation Guide or User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 8 ERS A50M Quick Reference Guide... -
Page 9: Ers-A50M Connector List
All manuals and user guides at all-guides.com Quick Reference Guide 2.1 ERS-A50M connector list Connectors Label Function Note COM1~2 Serial port connector1~2 DC-IN Lockable DC Jack HDD Indicator Power Indicator LAN1 RJ-45 Ethernet 1 RJ-45 Ethernet 2 LAN2 LINE IN... -
Page 10: Ers-A50M Connector Mapping
All manuals and user guides at all-guides.com ERS A50M 2.2 ERS-A50M connector mapping 2.2.1 External Serial Port 1 connector (COM1) Signal Signal DCD#0 DSR#0 RXD0 RST#0 TXD0 CTS#0 DTR#0 RI#0 2.2.2 External Serial Port 2 connector (COM2) Signal Signal DCD#1... -
Page 11: Installing Hard Disk & Memory
All manuals and user guides at all-guides.com Quick Reference Guide 2.3 Installing Hard Disk & Memory Step 1. Unfasten 3 screws from bottom and rear side. Step 2. Remove the chassis cover. Step 3. Insert the drive into position, and secure with 4 screws. Step 4. -
Page 12: Installing Mounting Bracket (Optional)
All manuals and user guides at all-guides.com ERS A50M 2.4 Installing Mounting Bracket (Optional) Step 1. Fasten 6 screws on both sides of ERS Rugged Embedded System. 12 ERS A50M Quick Reference Guide...
