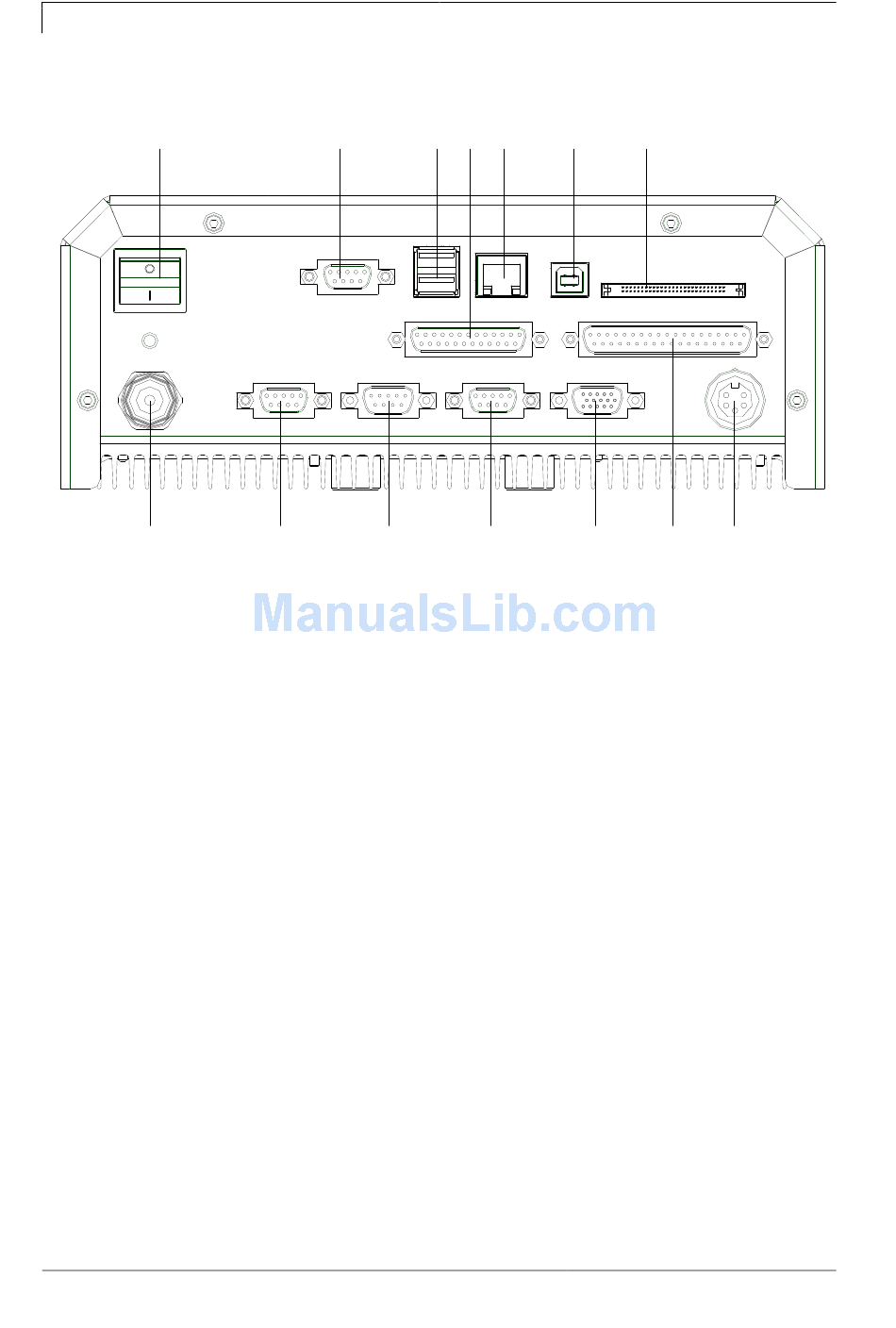

2.2 Connector Assignment of Control Unit

B C D E
M L
Figure 2
A = Switch
B = Serial interface RS-232
C = USB Host interface (USB-B)
D = Connecting cable Power
E = Ethernet interface
F = USB interface (USB-A)
G = CF card slot
H = Connection encoder
I = Connecting cable SPI (printhead + sensor)
J = Standard
SUB-D female connector 15pin
External socket I/O-24
see chapter 6.1
K = Externer Ausgang 5-8 (Output II)
L = Externer Eingang 1-4 (Input I)
M = Externer Ausgang 1-4 (Output I)
N = Power line
Operating Manual
F G
K J
Option
SUB-D male connector 9pin
External input 5-8
see chapter 6.1
Dynacode II Series
