Continuous Mode; Material Speed; Print Principle - Carl Valentin Dynacode II Series Operating Manual

Dynacode II Series
08.16
3

Continuous Mode

3.1 Material Speed

Please note that the material has sufficient adhesion at the pressure
transducer roll or encoder roll to permit the exact speed by the
encoder.
It is only possible to print when respecting the operating conditions,
i.e. the speed has to be observed.

3.2 Print Principle

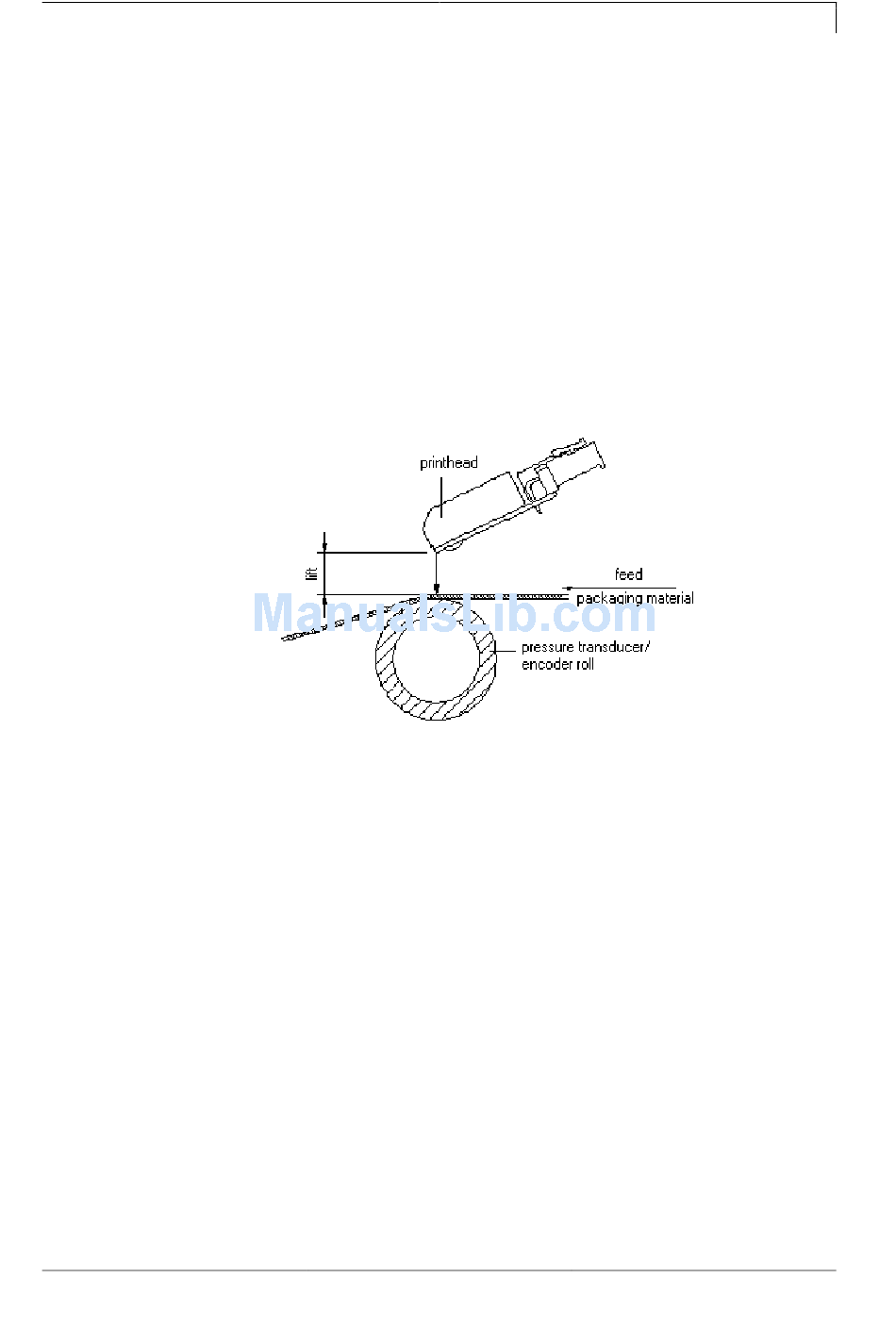

Figure 3
After starting a print order the printhead moves against the print
medium. The feed of material is registered by the encoder and then
evaluated. The printhead is in start position as long as the printing
onto the moving material is finished and then it moves back to its
home position.
Operating Manual
Continuous Mode
11
