Dynacode II Series

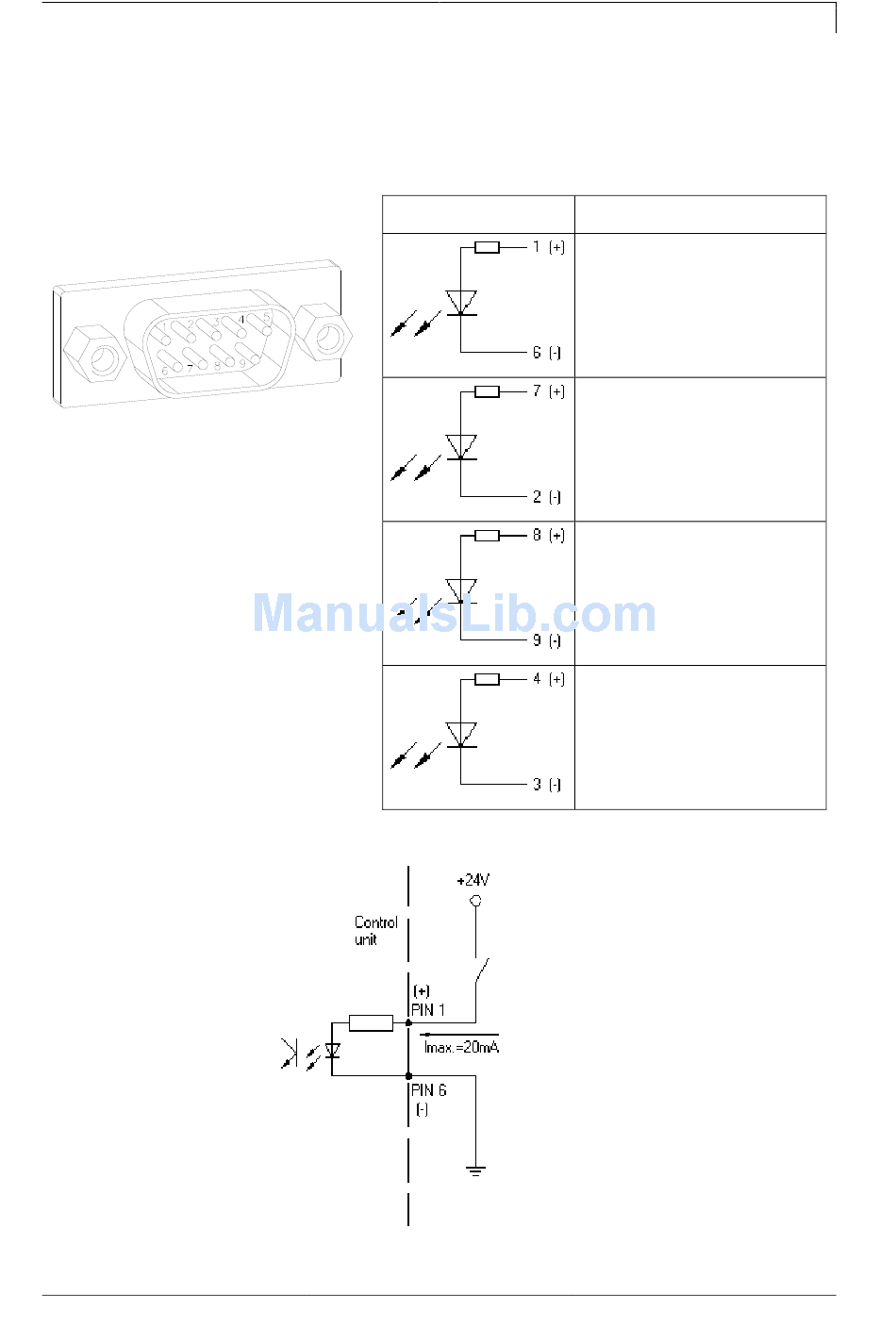

Control inputs
Input I
Figure 7, B
Figure 11
Example
08.16
By means of the control inputs it is possible to control printing. The
control inputs at Input I are galvanic separated and have to be
provided with an external tension source. The signal level is active
"HIGH".
PIN (pin)
Connection of a switch with 24V voltage supply by In 1 / Port 1:
Figure 12
Operating Manual
Technical Data
Input I
In 1 / Port 1: Print start
In 2 / Port 2: Not used
In 3 / Port 3: Reset external
counter
In 4 / Port 4: Not used
23
