Technical Data
Example
Output II
Figure 7, C
Figure 10
22

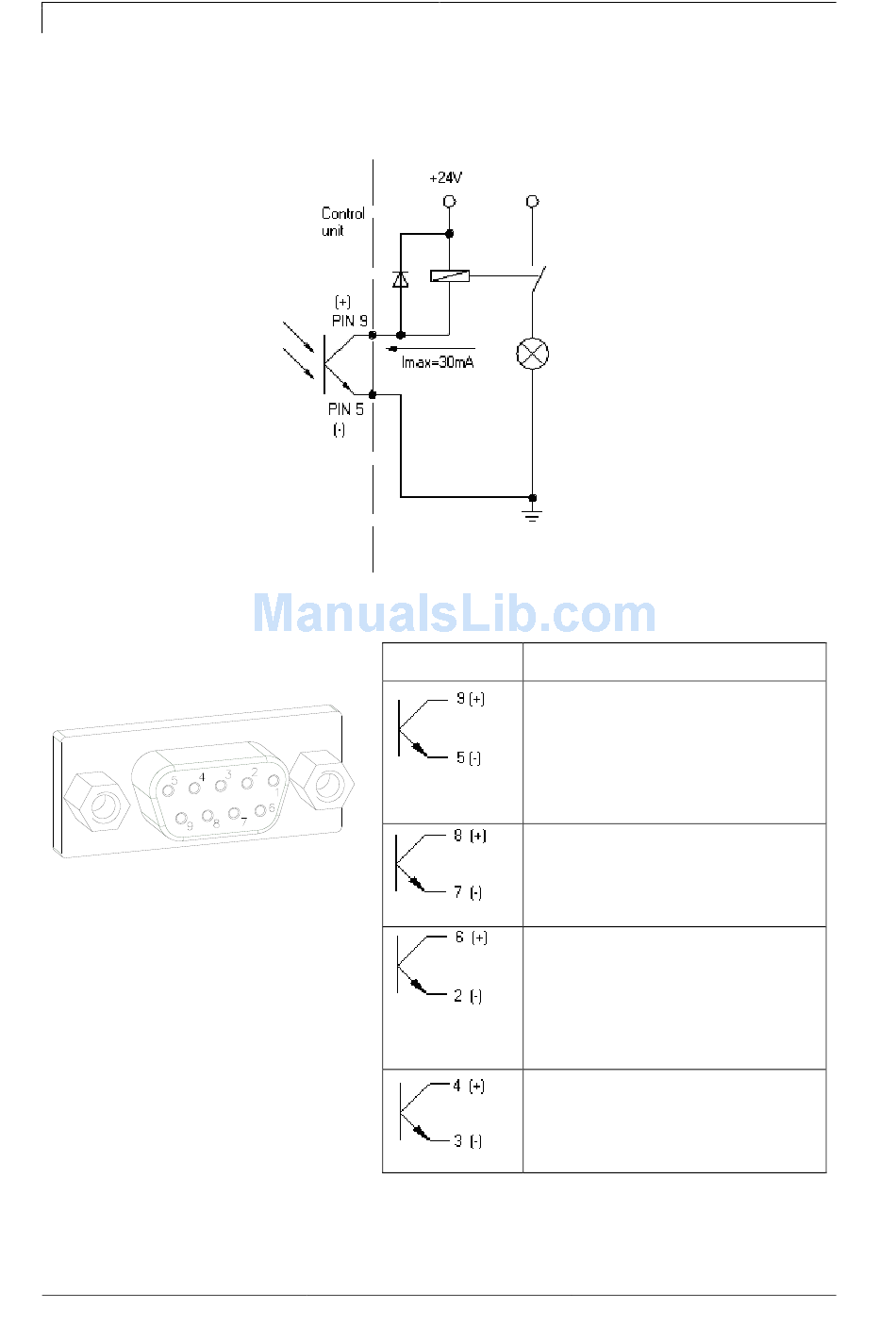

Connection of a lamp to a 24V relay by Out 1:
Figure 9
PIN (bushing)
Operating Manual
Dynacode II Series
Output II
Out 5 / Port 13: Print-Ready signal
It is indicated if the print module is
ready to process a start impulse. In
contrary to the print order signal, the
generating time is taken into
consideration.
Out 6 / Port 14: Printhead up
The printhead has reached the upper
rest position (e.g. return to zero
point).
Out 7 / Port 15: Return to start
After termination of print procedure
the flexible part of the print module is
moved back to the start position.
After the start position was reached a
new start can be released.
Out 8 / Port 16: Prior warning of
transfer ribbon end
