Front View; Rear View - OWC MERCURY ELITE PRO DUAL Assembly Manual & User Manual

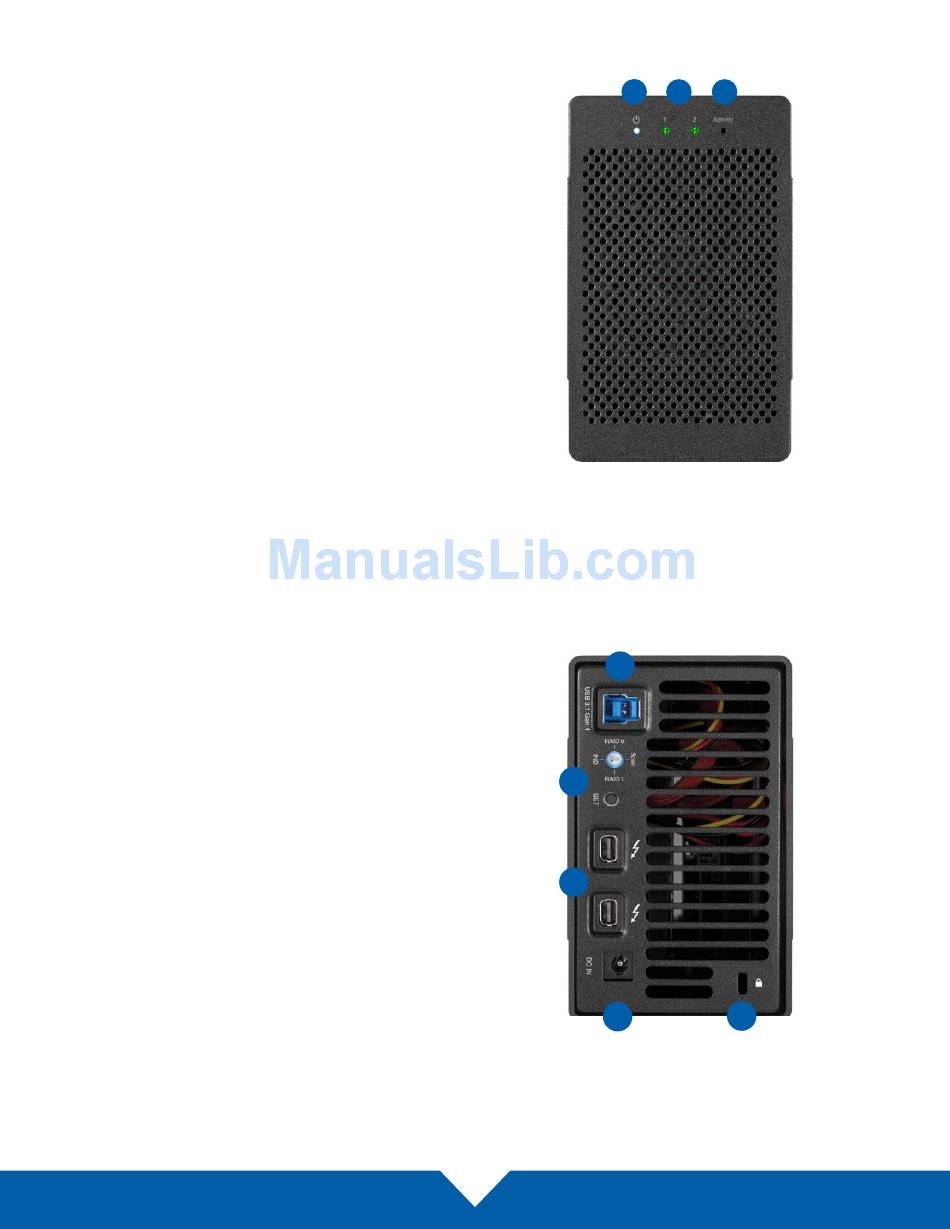

1.4 Front View

1. Power LED — emits a solid blue light when the
Mercury Elite Pro Dual is powered on.
2. LEDs 1 & 2 — these LEDs represent the two drives
inside the Mercury Elite Pro Dual. During normal
activity, each of these LEDs will blink green when
the corresponding drive is accessed. If one of the
drives in the enclosure fails, or if the drive bay is
empty, the corresponding LED will turn solid red.
3. Rebuild — If the Mercury Elite Pro Dual is set up
as a RAID 1 and one of the hard drives is being
rebuilt, this LED will blink orange during the rebuild
process.

1.5 Rear View

1. USB 3.1 Gen 1 port — attach the included USB
3.1 Gen 1 (Standard-A to Standard-B) cable to this
port.
2. RAID Dial & Set button— set the RAID mode by
using these items.
3. Thunderbolt ports
Thunderbolt cable to one of these ports. Connect
a daisy-chained Thunderbolt device to the other
port as needed.
4. DC IN — connect the included power supply here.
5. Kensington® Security Slot — connect a security
tether here.
OWC MERCURY ELITE PRO DUAL
— attach the included
1
1
2
3
4
3
2 3
5
INTRODUCTION
