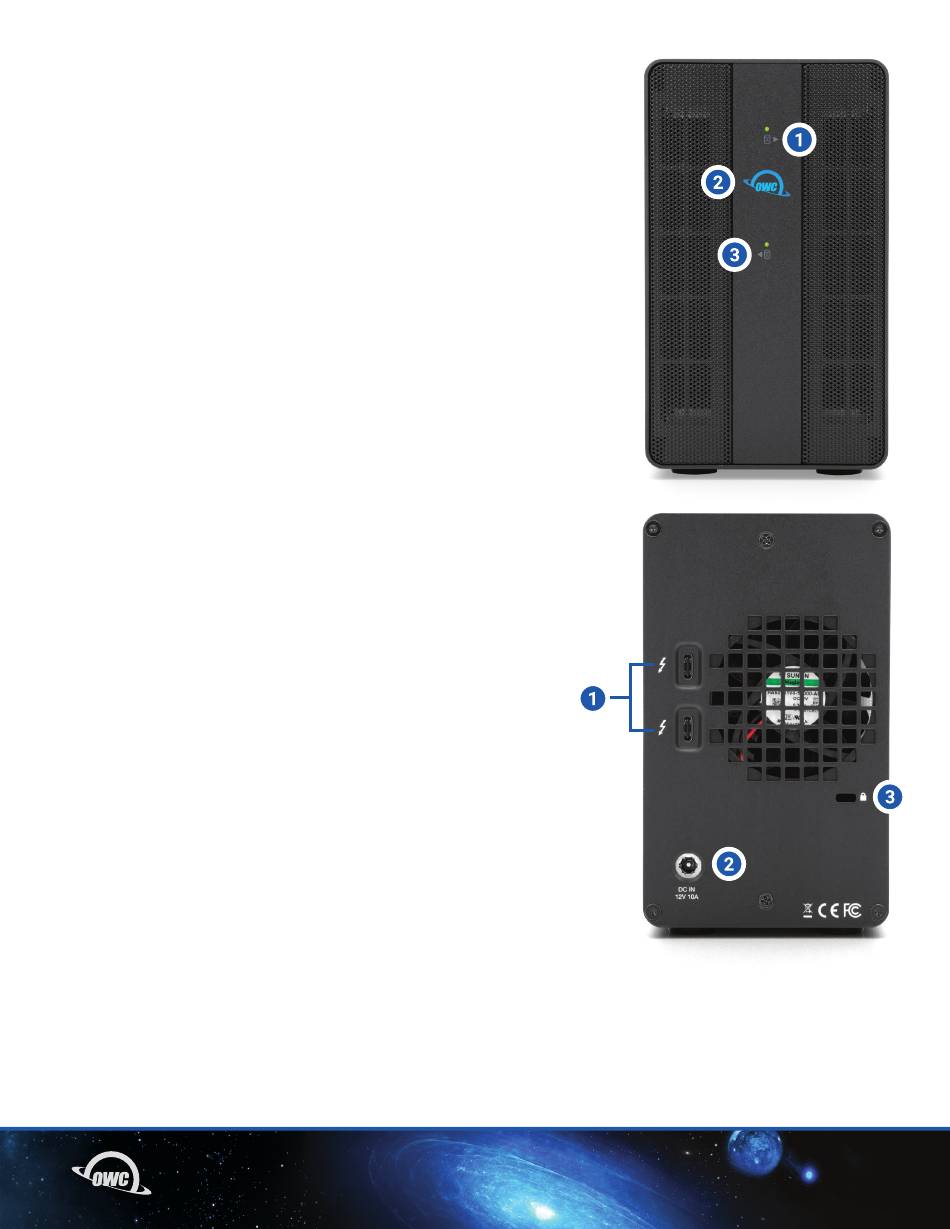

1.4 FRONT VIEW
1. Drive A LED – light will appear solid green when drive is ready but not
in use (may not be supported by all drive types); it will flash green
during read/write operations.
2. Power LED – solid white when connected to power and solid blue
when connected to both power and an active host.
3. Drive B LED – light will appear solid green when drive is ready
but not in use (may not be supported by all drive types); it will flash
green during read/write operations.
1.5 REAR VIEW
1. Thunderbolt 3 ports – connect one port to your Mac or PC, and chain
additional Thunderbolt 3 devices to the other port. Each port provides
up to 15W of bus power.
2. DC IN – connect the included power supply here.
3. Kensington Security Slot – connect a Kensington security tether here.
