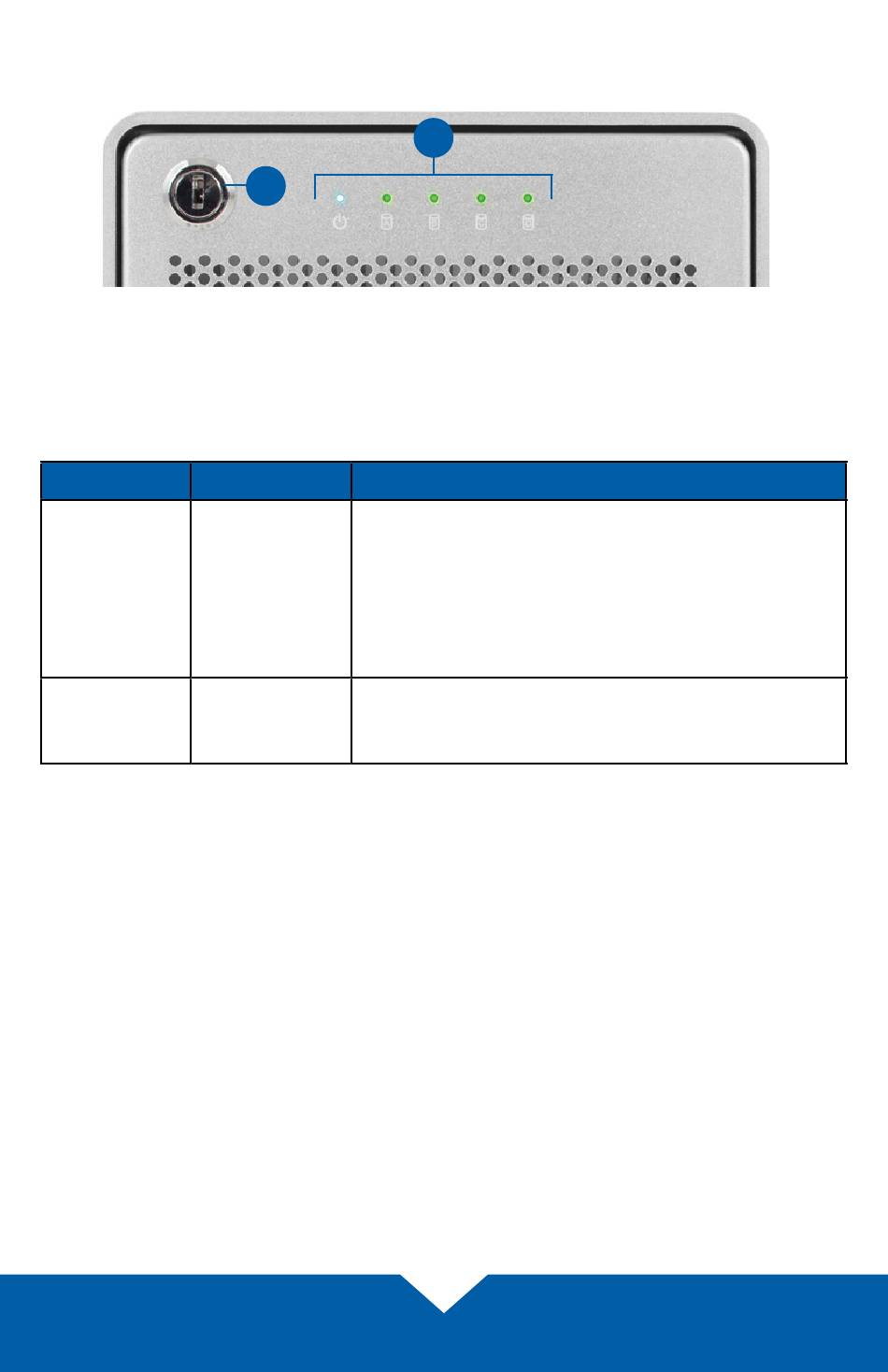

1.4 Front View

1. Locking faceplate — Use the included keys to lock the faceplate for security,
or remove the faceplate to gain access to the drive bays.
2. LED indicators — See the chart below for additional LED information.
LED
Power
Drive Bays
(A, B, C, D)
OWC Mercury Elite Pro Quad
1
Color(s)
Blue, Amber
Green
2
Behaviors
• Power off: off
• Power on but no data connection:
• Power on with data connection:
• Power on with data connection but host is in
sleep or hibernation mode:
• Drive activity (per drive):
• All other instances: off
4
amber
solid blue
pulsing blue
flashing green
