1.5 Installation of IP BOLD
1.5.1 Wall mounting installation
Installation place
To reach good video quality the camera must
not point directly to
• sun lighting
• strong light sources
• light orstrongly reflective walls

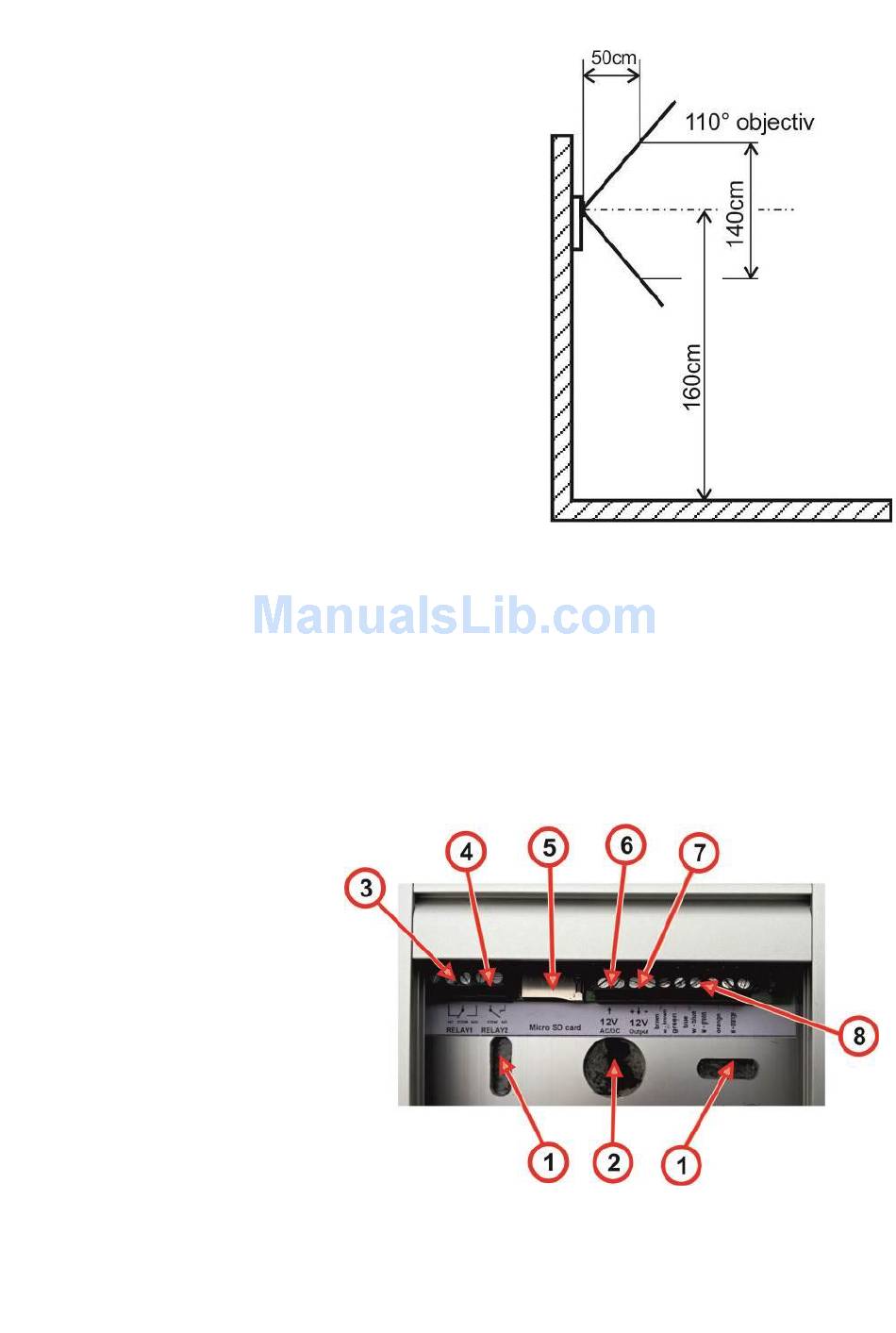

Installation height
Installation height of outdoor video station
should be selected according camera scan
range (via picture). People with average height
will be at installation 160 cm from ground
optimaly scaned.
Installation is done by screws and wall plug.
Recommended:
-
Wall plug diameter 8mm
-
Screw is twist with halfround head . Diameter 5mm lenght 35mm
We recommend following wall mounting procedure:
-
Open the unit cover (via follow capture)
-
Lead in cable (wires) via cable hole (2)
-
Fix the unit safely to wall (screws + wall plugs) by fixing holes (1).
-
Be carefull to dont squeeze setting block on back side.
-
Connect the wires (follow instructions in next capture)
-
Replace
cover (via following
capture)
