1.4.3 PoE

The IP BOLD is equiped by circuit for powering via UTP cable – PoE. When
you have IP switch with PoE, or you have PoE PSU (box of adapter size
inserted into UTP cable input – according directive IEEE802.3af) then you dont
need extra 12V PSU for door entry powering.

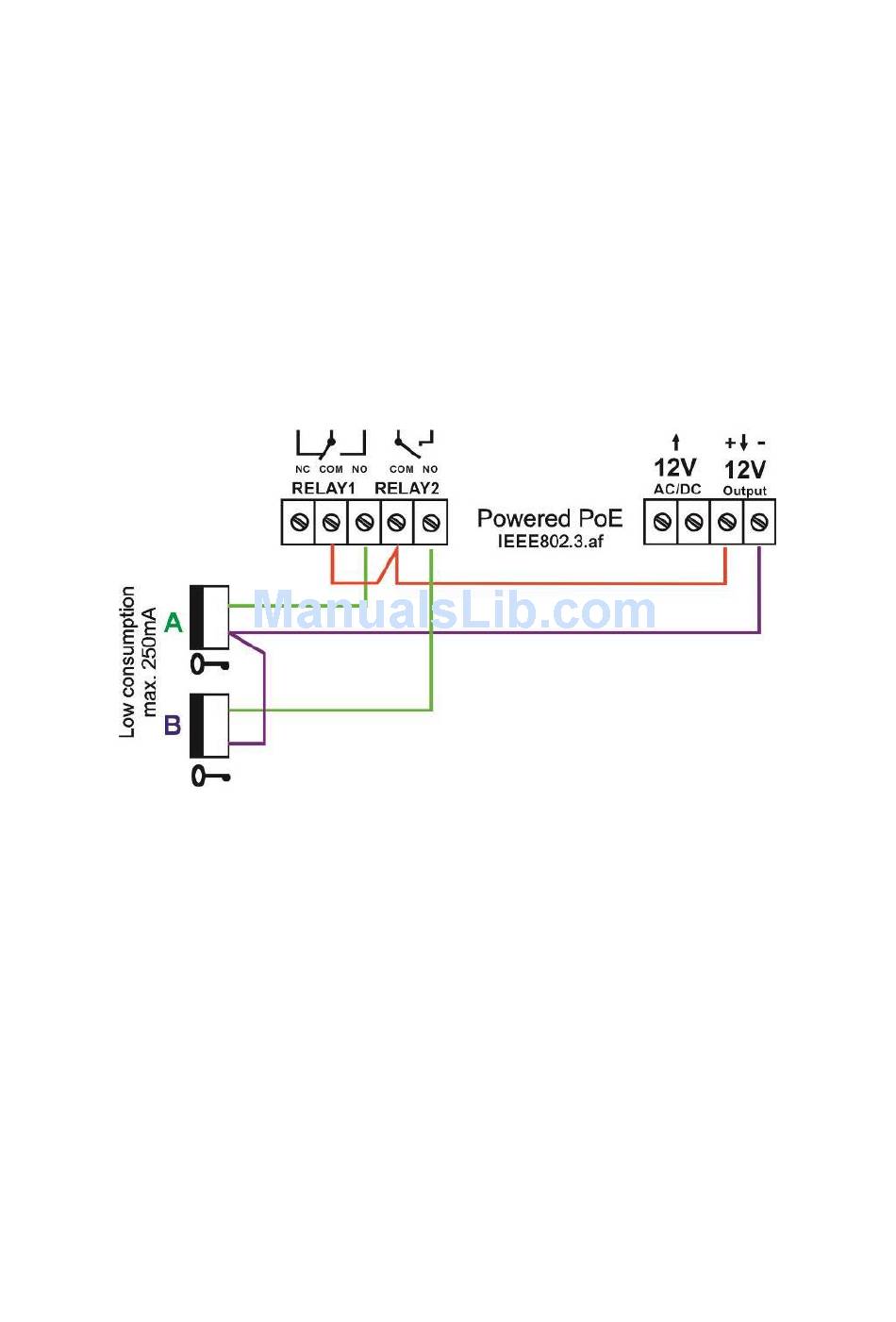

When you use electrical lock for door opening then you have to use PSU for
powering of door electrical lock (in relays contacts circuit only), or use low
consumption electrical lock and for electrical lock powering use output screw
„12V output" (7). When is used PoE then 12V/300mA is available.
CAUTION:
simultaneously.
It might be reached for example by relays synchronization and setup
progressive door opening (setting is descriped in follow capture relays setting)

1.4.4 Usage of door contacts

The door sensors might be connected max. 2 to door entry IP BOLD.
There are designed for transmission of door close informatik. This information
is display on initial screen (under picture from camera). It is also transmit to
UDVguard applications. Further posibility is use SNMP.
The door sensor is ether part of electrical lock or it is ordinary magnetic
contact used in security. It is connect as button to screw terminal (13),
eventually to screw terminal (18). Those screw terminals are designed for
buttons connection. Door sensors connection allways require special button
module with cable for door sensors connection. This feature is optional.
Therefore you have to order in advance.
There
must
not
be
activated
IP BOLD
- installation and operating instructions
both
electrical
locks
17
