Valcom IP bold series Installation & Operation Instructions page 16

1. Standard electrical lock connection. This connection is used most often.
One shared power supply feeding door entry IP BOLD and both electrical
loch. Current loading of PSU depends mainly on used el. Locks. Standard
el. Lock has current consumption 0,6A – 1,0A. As next you have to
consider posibility of both relays activation simultaneously. When not then
1A PSU is fine. When yes then use 2A PSU. When you use low
consumption electrical loch then PSU 1A is fully acceptable.
2. The second most often used connection is by powering from PoE. There is
advantage of no extra PSU necessity. However 2 conditions must be
followed: Electrical locks must be low consumption as same as relays must
not be activated simultaneously (via follow).

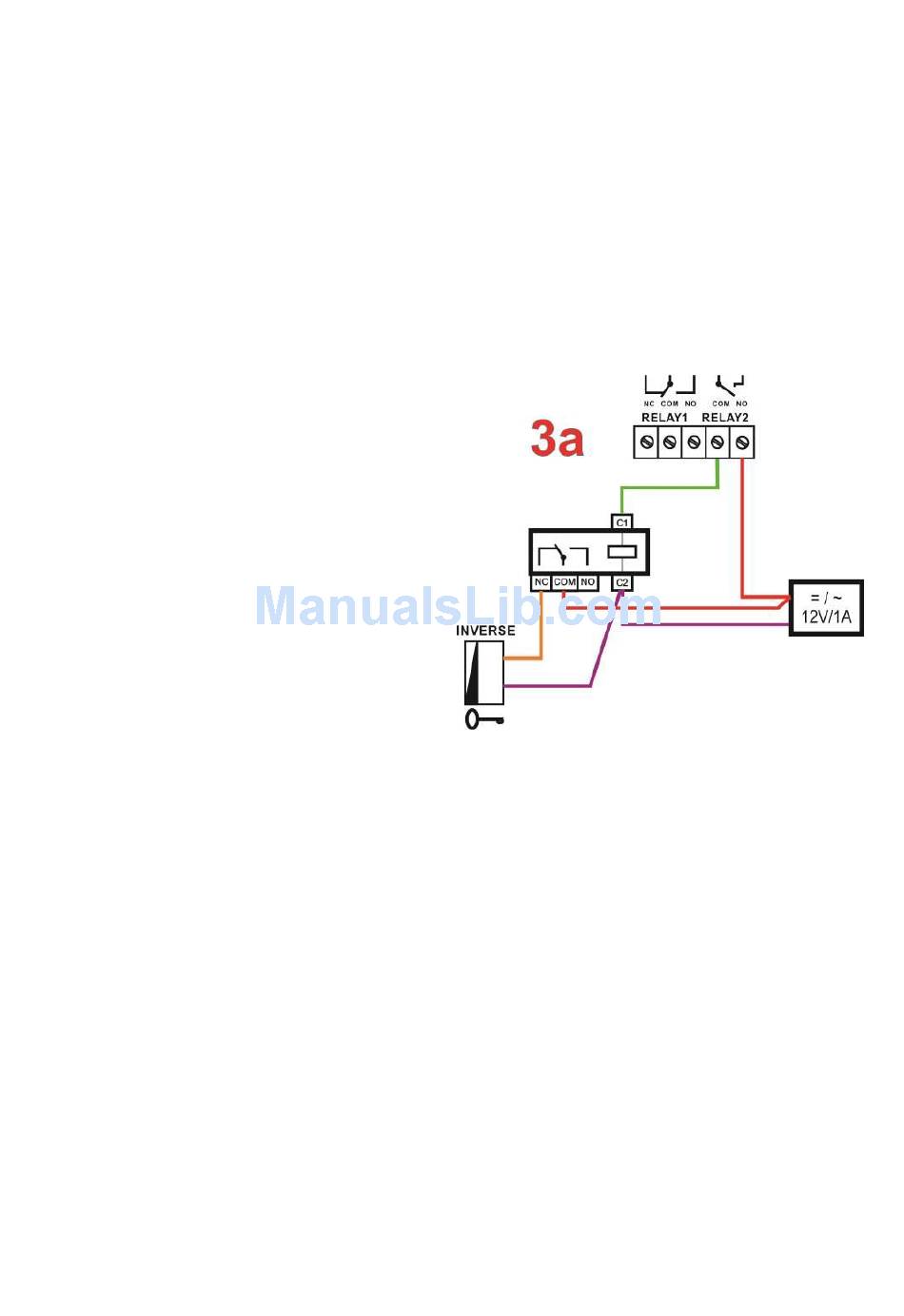

3. This connection is version for reversal lock (magnetic lock). Therefore
switchable contact is lead out from first relay only the second (B) electrical
lock is standard. When you need
connect inversal lock to second
relay as well then you have to
use extra relay – picture 3a:
4. Connection
transmission - "security" activation of B electrical lock . Security
transmission is between door entry IP BOLD and module COSW (code
switch). Therefore we recommend place COSW module close to electrical
lock. For correct operation is necessary setup in IP BOLD door entry and
COSW module the same code (via follow). The A electrical lock is in
standard connection.
5. Connection with 2x PSU. When you need different feeding for electrical
lock or you want separate powering of lock from door entry you can use 2
individual powering circles.
6. Examples of other devices ( beside el.locks) connection. To the first relay is
connected sliding door controller and to second relay is connected extra
bell (siren).
