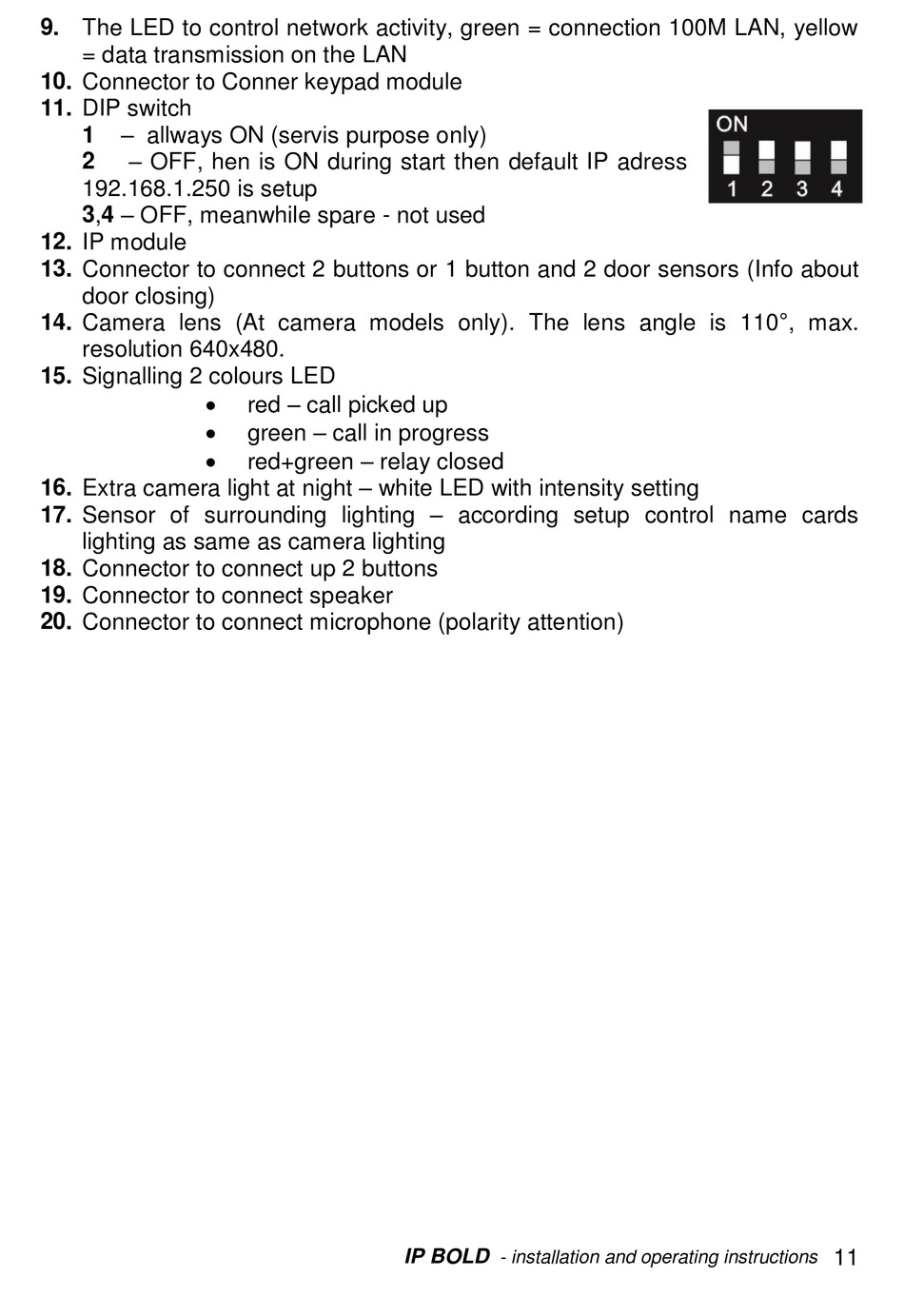

9. The LED to control network activity, green = connection 100M LAN, yellow
= data transmission on the LAN
10. Connector to Conner keypad module
11. DIP switch
– allways ON (servis purpose only)
1
– OFF, hen is ON during start then default IP adress
2
192.168.1.250 is setup
3,4 – OFF, meanwhile spare - not used
12. IP module
13. Connector to connect 2 buttons or 1 button and 2 door sensors (Info about
door closing)
14. Camera lens (At camera models only). The lens angle is 110°, max.
resolution 640x480.
15. Signalling 2 colours LED
16. Extra camera light at night – white LED with intensity setting
17. Sensor of surrounding lighting – according setup control name cards
lighting as same as camera lighting
18. Connector to connect up 2 buttons
19. Connector to connect speaker
20. Connector to connect microphone (polarity attention)
red – call picked up
green – call in progress
red+green – relay closed
IP BOLD
- installation and operating instructions
11
