1.4 IP BOLD connection

The IP BOLD includes basic board differently equipped. To the basic
board is possible connect 1 or 2 button boards. Further is possible connect
keypad in version TK.

1.4.1 IP BOLD basic board

The basic board is the same for all models of IP BOLD door entry. The
difference is just camera module ( with or without). The PoE modul is in
standard (according directive IEEE802.3af) as same as connectors for button
and keypad connection , MicroSD card reader and 2 relays (first relay has
switchable contact [NO COM NC] and second relay has closing contact only
[NO COM]).
The basic board schematics at picture bellow and all important parts
are marked in circle with description.
1. Mounting holes
2. Cabling holes (UTP, electrical locks connection, power supply)
3. Switching contact screw terminal of first relay (NC= closed in stand by,
NO=open in stand by nda COM= shared output)
4. Switching contact screw terminal of second relay (NC= closed in stand
by, NO=open in stand by nda COM= shared output)
5. MicroSD card slot – Insert SD card before switch ON of door entry and do
not také out during all operation time!
6. Input for powering IP BOLD 12V AC / DC (consumption cca 300mA max.)
We reccomend use DC power supply
7. Output 12V DC, max. 300mA, for example to power low consumption
electrical lock via PoE powering of IP BOLD

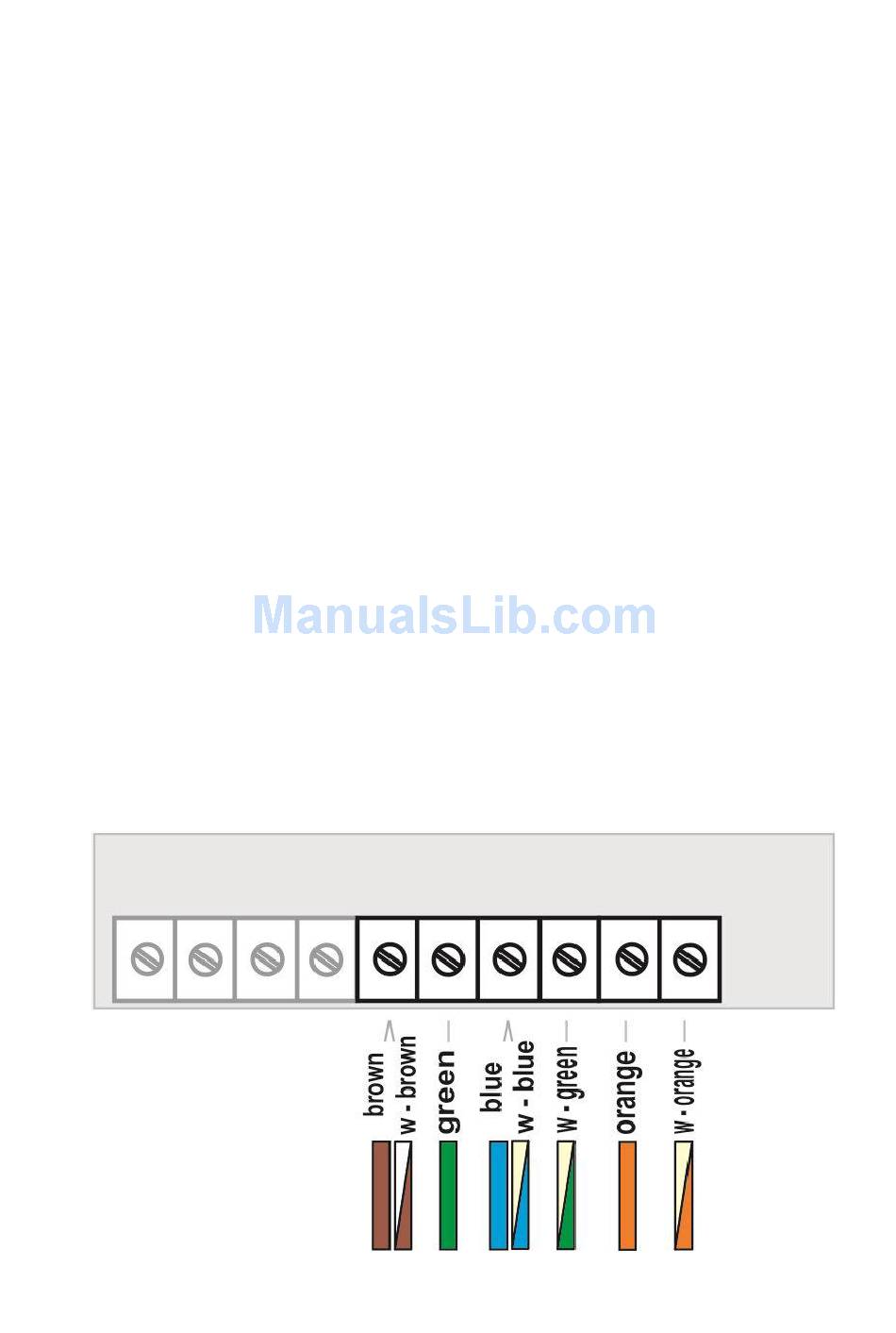

8. UTP cable connection (Ethernet, LAN,net)
